Description
Obsidian EN4 Overview
- 1Description
- 2Benefits
- 3Mounting
- 4Connections
- 5Electrical
The Obsidian Neutron EN4 Ethernet to DMX 4-Port OLED Display Gateway is a powerful unit with four RDM compatible ports. Designed for live production and installations, it has a rugged housing, high-performance processing, and flexible mounting options to cover any situation. As a 4-Universe Node, the EN4 is ideally suited for the powerful Onyx Free Edition.
Benefits
- RDM, Art-Net, and sACN support
- Factory and user presets for plug-and-play setups
- Line voltage or PoE powered
- 1.8" OLED display with a rotary knob
- 99 internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum half-rack housing
- Connect to Onyx PC for a full 4-universe solution
Mounting

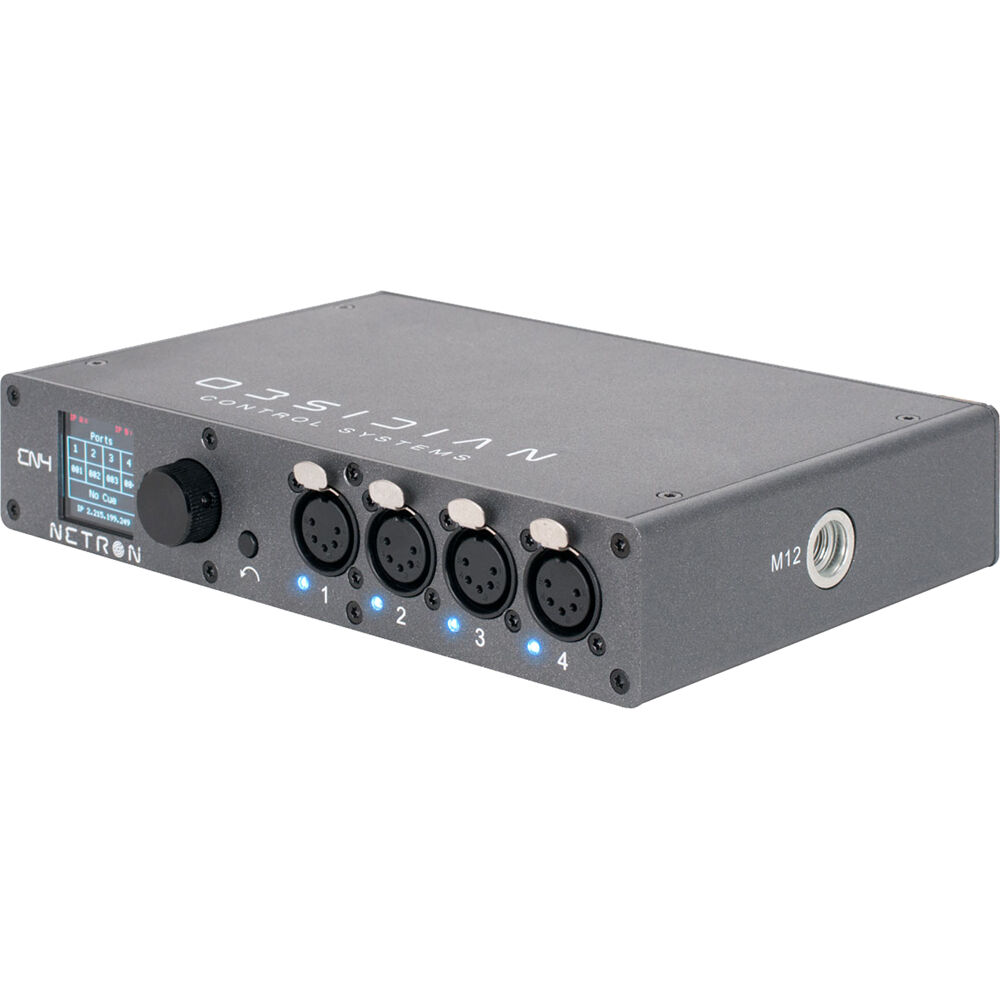

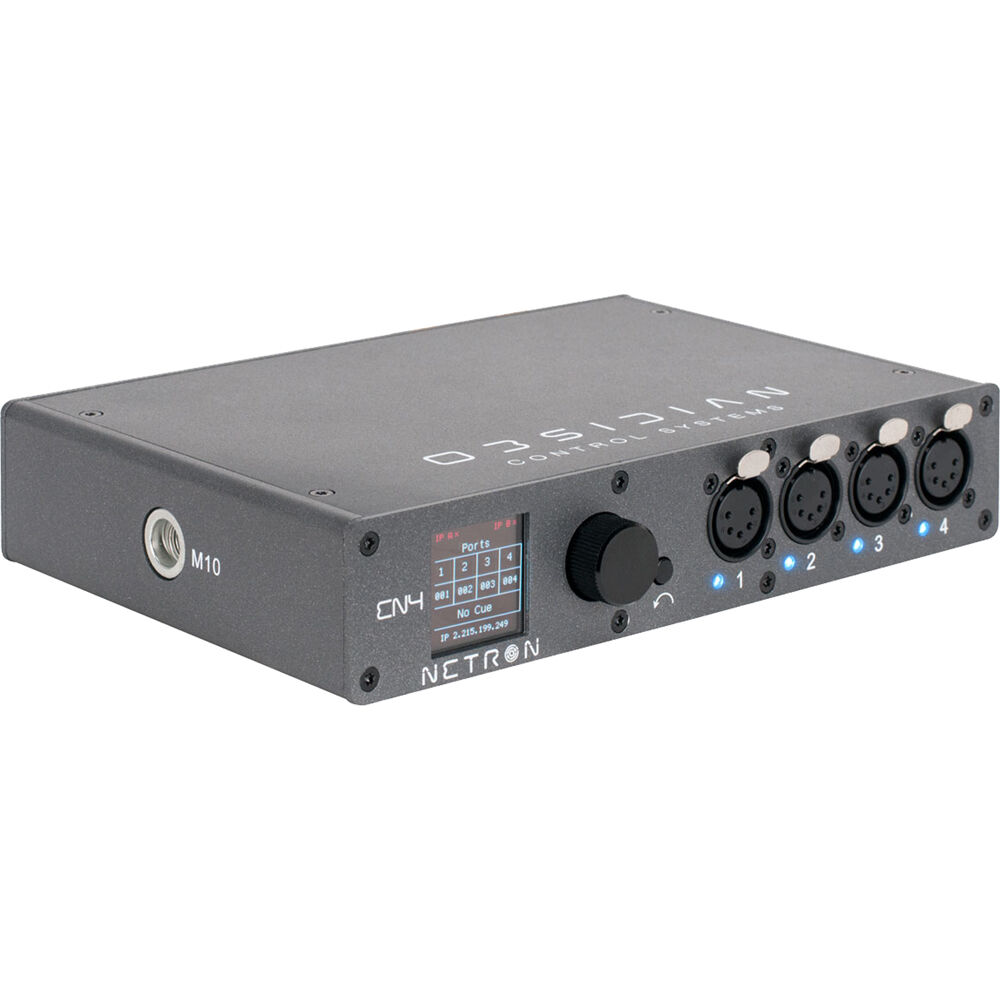

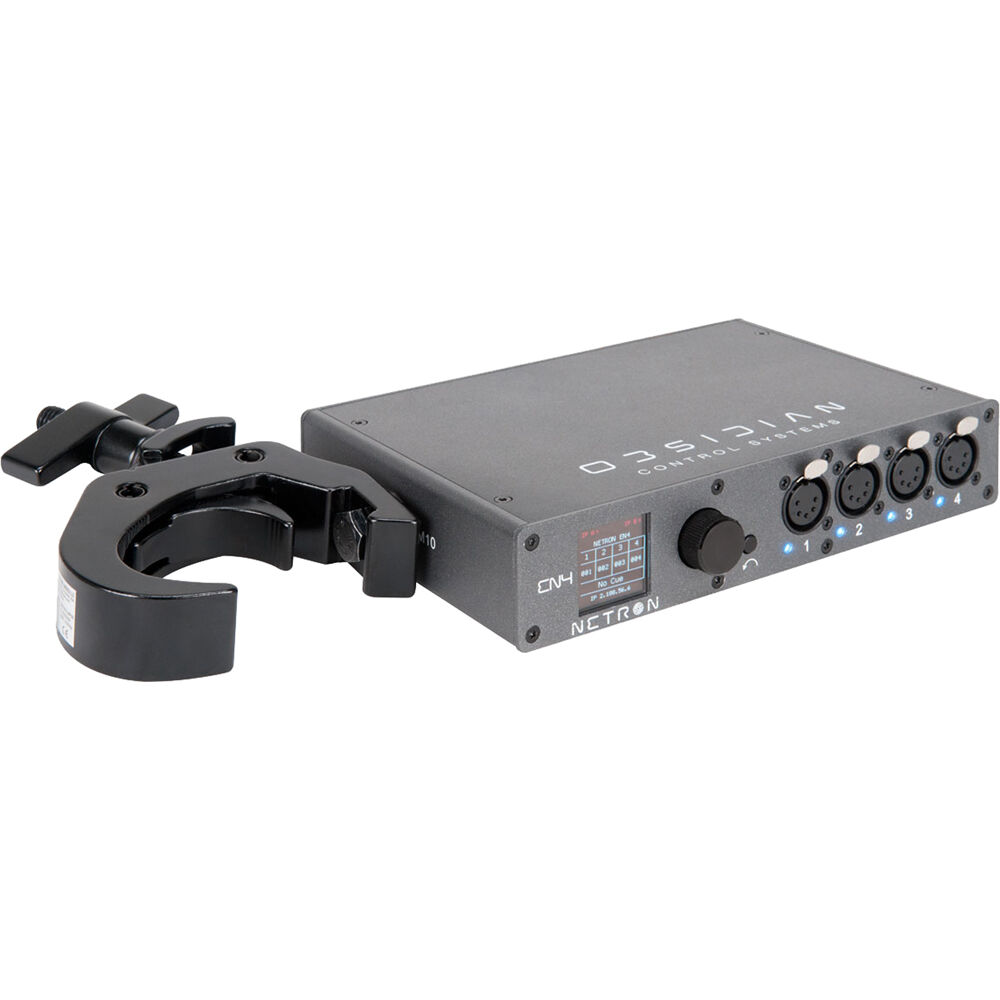

- Truss mount (M10 or M12 mounting hole)
- Wall mount horizontal or vertical (included)
- DIN rail horizontal or vertical (included)
- Rackmount option (requires NET shelf)
Connections

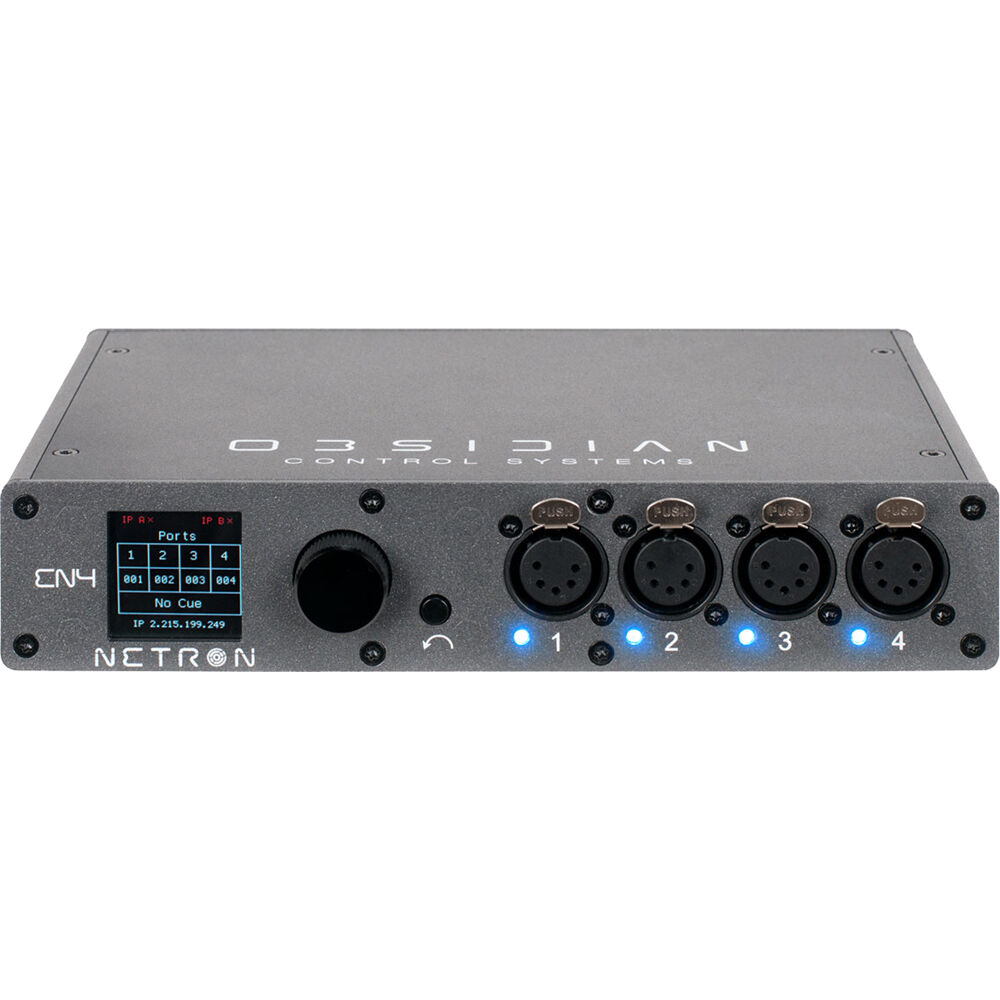

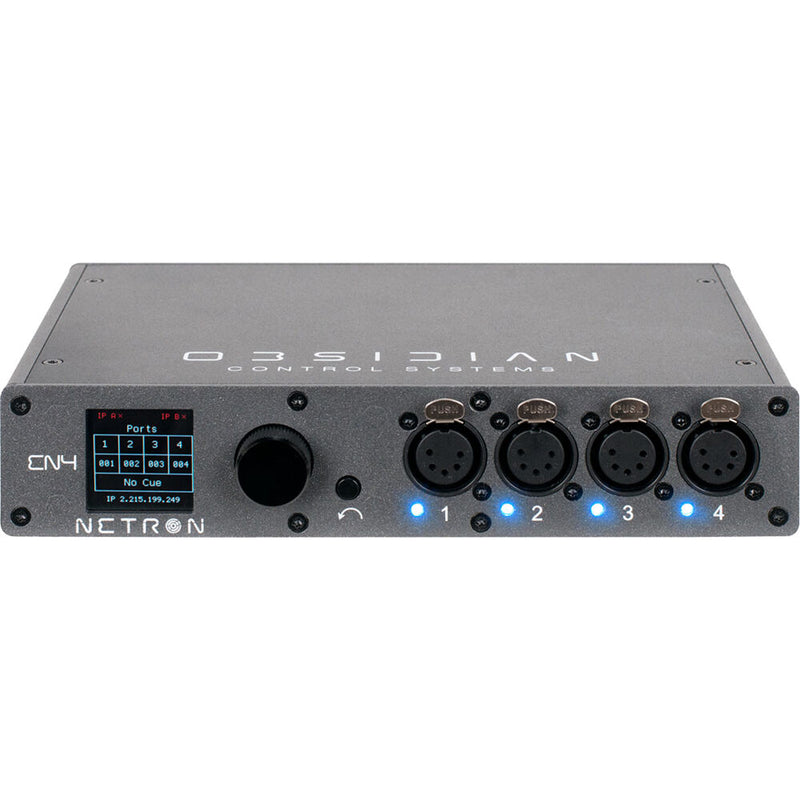

Front:
- Four 5-pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX input and output
- Full-color OLED display
- Encoder with Push-to-Select/Exit button

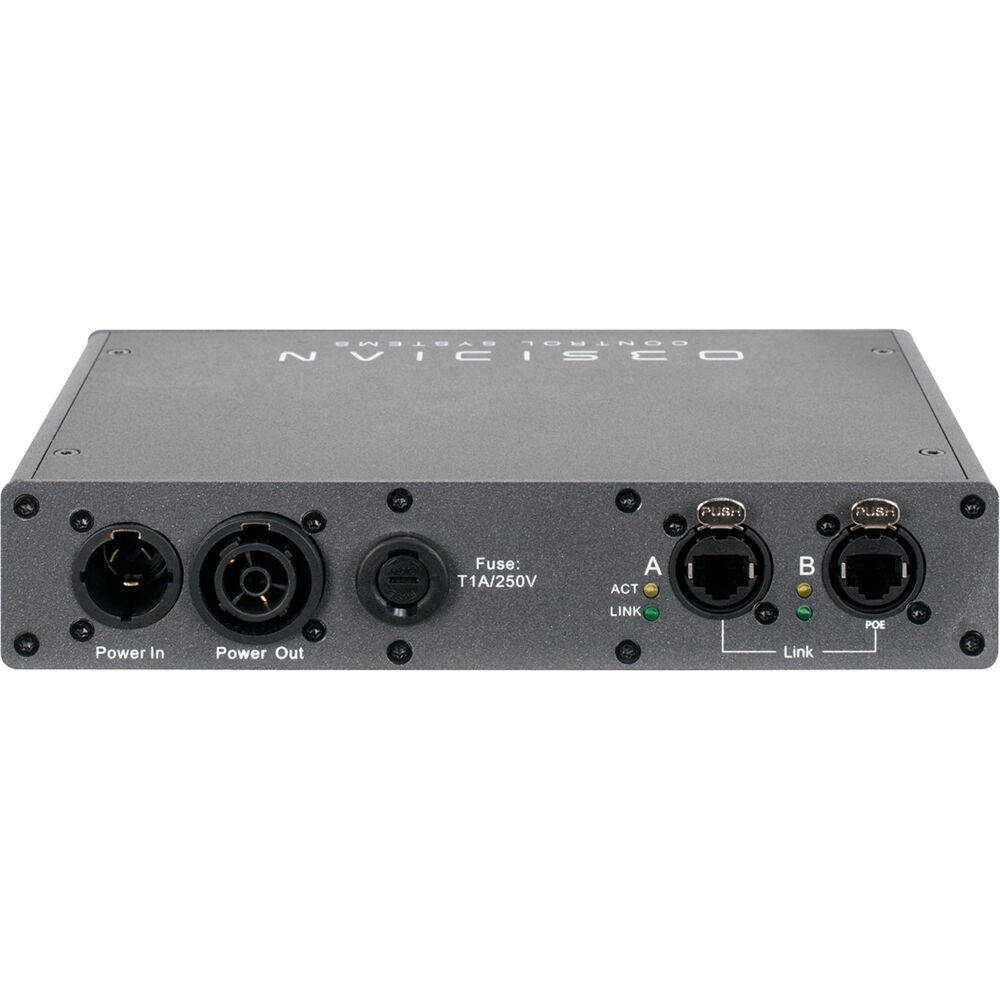

Back:
- Locking power in/thru
- Two locking RJ45 Ethernet network connections (one PoE)
Electrical
- 100-240 VAC nominal, 50/60 Hz, 10W
- POE 802.3af
UPC: 810008260661
In the Box
- Obsidian Netron EN4 Ethernet to DMX 4-Port OLED Display Gateway
- Wall Mount
- DIN Rail
Table of Contents
- Description
- Benefits
- Mounting
- Connections
- Electrical
Obsidian EN4 Specs
General
| Inputs/Outputs | 4 x 5-Pin (DMX) Input/Output |
| Cooling System | None |
Power
| Power Source | AC Adapter |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Port Power | Yes |
Compatibility
| Protocol | ArtNet, RDM, sACN |
Environmental
| Certifications | cETL, cETLus, FCC, as per Manufacturer |
| IP Rating | None |
Physical
| Material of Construction | Aluminum |
| Rack Mount | Yes |
| Dimensions | 8.5 x 5.5 x 1.6" / 21.6 x 14.0 x 4.1 cm |
| Weight | 2.2 lb / 1 kg |
Packaging Info
| Package Weight | 3.96 lb |
| Box Dimensions (LxWxH) | 13.8 x 11 x 3.3" |
Obsidian EN4 Reviews
Great Product!
By Ryan
Rated 5 out of 5
Date: 2023-01-29
This is a great unit for a small lighting setup. I use this in conjunction with my iPad to control 2 Universes of lights. It's easy to assign each port to it's designated universe, and the size keeps it small for a great mobile setup.
