Description
Obsidian EN12 Overview
- 1Description
- 2Benefits
- 3Mounting
- 4Connections
- 5Electrical
The Obsidian Netron EN12 Ethernet to DMX 12-Port OLED Display Gateway is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features, it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for the recall of presets, routings, mergers, or any of the internal cues.
Benefits
- RDM, Art-Net, and sACN support
- Factory and user presets for plug-and-play setups
- Line voltage or POE powered
- 1.8" OLED display with a rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Powder-coated aluminum half-rack housing
Mounting
Rackmount
Connections

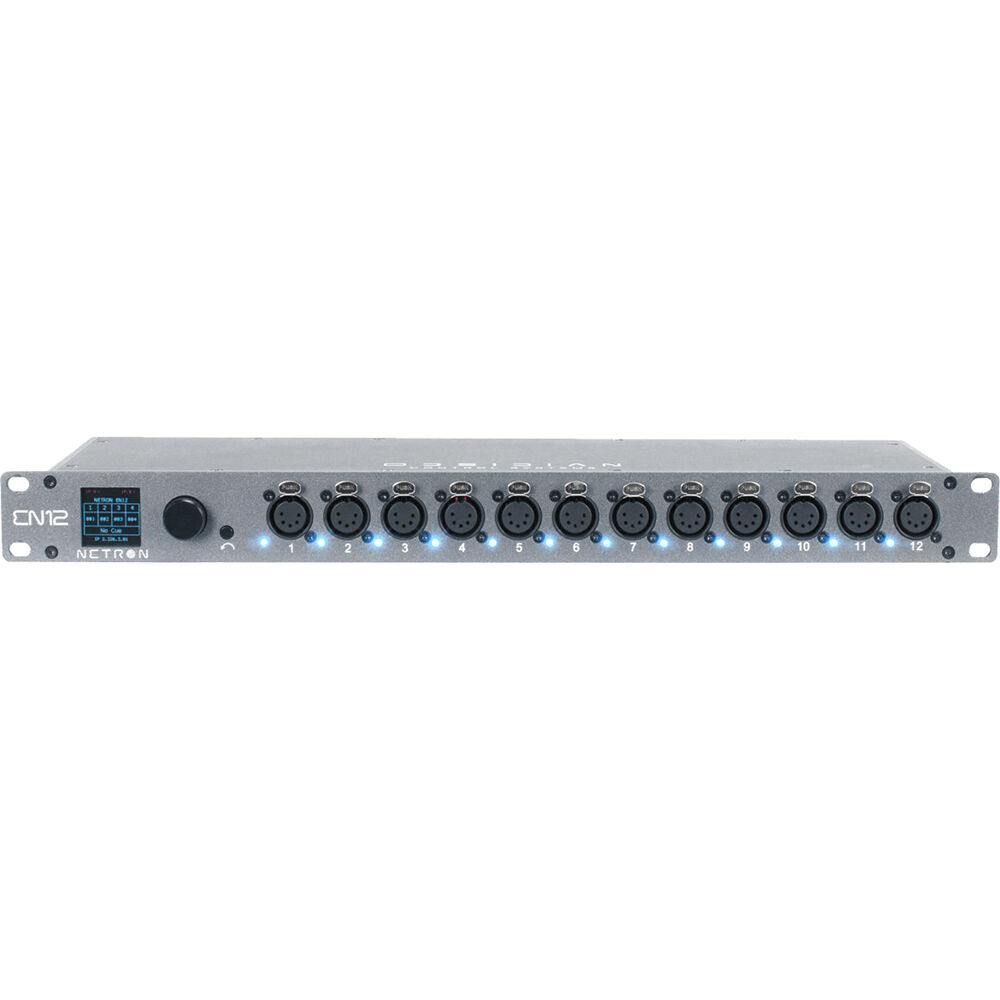

Front:
- Twelve 5-pin DMX/RDM optically isolated ports
- Ports are bidirectional for DMX input and output
- Full-color OLED display
- Encoder with Push-to-Select/Exit button

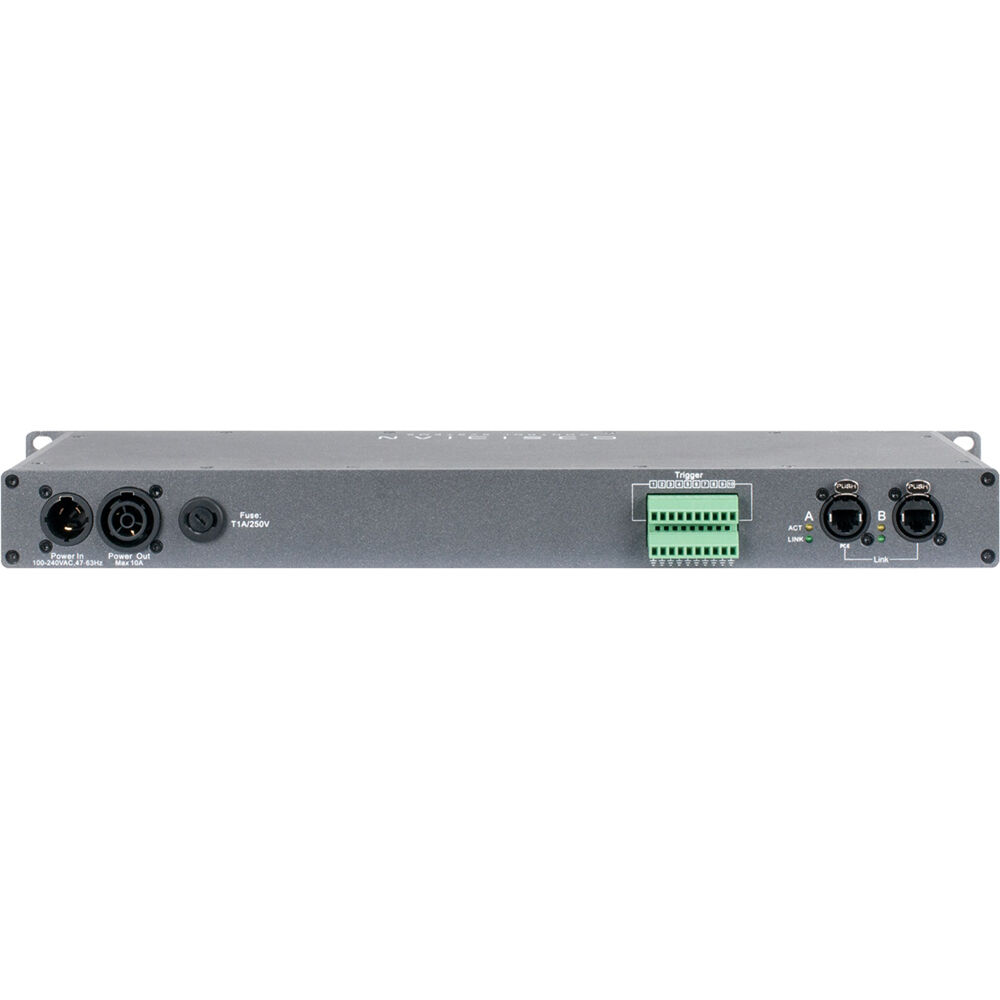

Back:
- Locking power in/thru
- Two locking RJ45 Ethernet network connections (one POE)
Electrical
100-240 VAC nominal, 50/60 Hz, 10W
POE 802.3af
POE 802.3af
UPC: 810008260685
Table of Contents
- Description
- Benefits
- Mounting
- Connections
- Electrical
Obsidian EN12 Specs
General
| Inputs/Outputs | 12 x 5-Pin (DMX) Input/Output |
| Cooling System | None |
Power
| Power Source | AC Adapter |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Port Power | Yes |
Compatibility
| Protocol | ArtNet, RDM, sACN |
Environmental
| Certifications | cETL, cETLus, FCC *as per Manufacturer |
| IP Rating | None |
Physical
| Material of Construction | Aluminum |
| Rack Mount | Yes |
| Dimensions | 19.0 x 5.7 x 1.7" / 482.5 x 146.0 x 44.0 mm |
| Weight | 4.01 lb / 1.82 kg |
Packaging Info
| Package Weight | 5.215 lb |
| Box Dimensions (LxWxH) | 20.3 x 9.8 x 3.8" |
