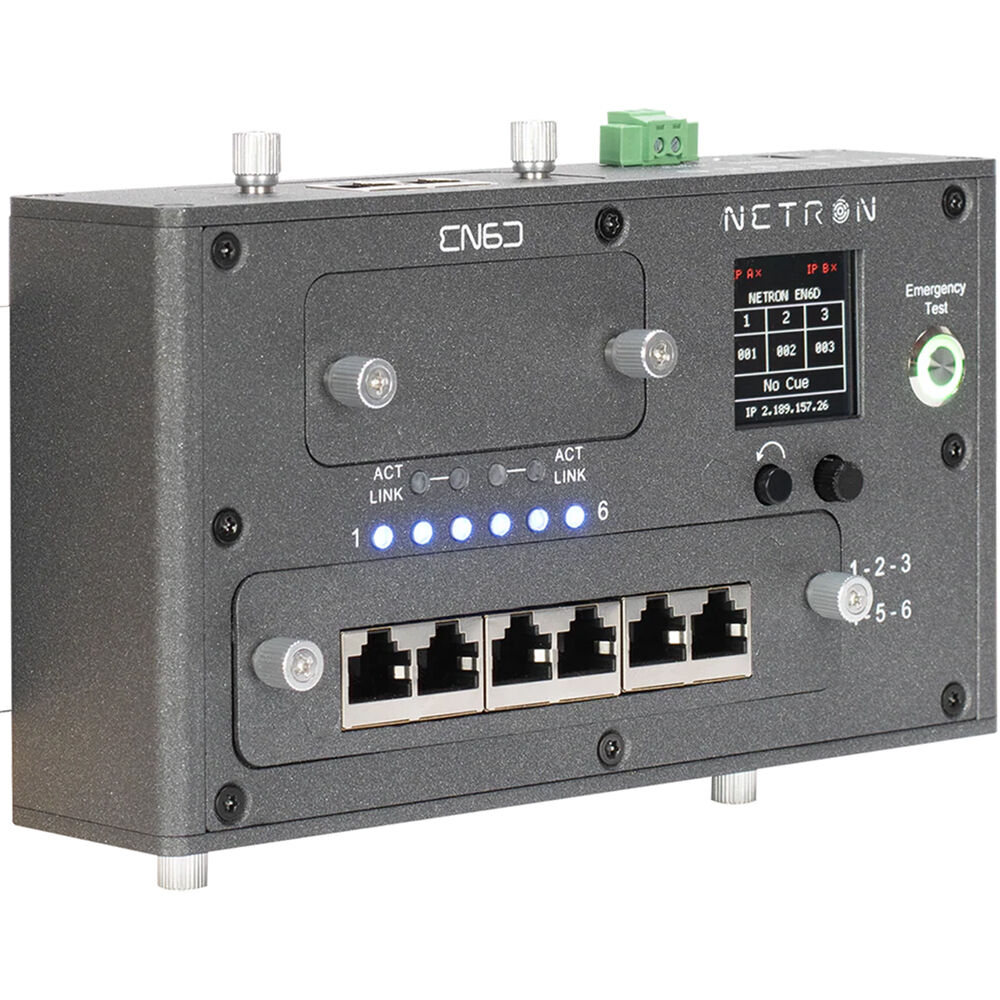

Obsidian EN6D DIN Rail Wall Mount Ethernet/DMX Node

Roll over image to zoom in

Obsidian EN6D DIN Rail Wall Mount Ethernet/DMX Node


	₹ 91515.0 includes GST and import duties.
	B2B customers can avail ₹ 13956.04 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Obsidian
SKU:	7441518755925
MPN:	EN6D
UPC/HSN:	810008264157

Share this product

Obsidian EN6D Overview

Designed for maximum flexibility in permanent installations, the EN6D DIN Rail Wall Mount Ethernet/DMX Node from Elation Professional offers configurable top, bottom, and front ports and multiple mounting options for those requiring a compact unit with various wiring options. This Ethernet to DMX gateway has six RDM-compatible wire terminal or RJ45 outputs, along with integrated presets and a wide array of advanced merge and routing features. Adding to its versatility, the NETRON EN6D can be powered by PoE or DC input from 9 to 48V.

Configurations

Find RJ45, screw-terminals, or IDC configuration options offered through exchangeable plates, which can be installed on the top or bottom or front of the EN6D. Other highlights are RDM, Art-Net, and sACN support, factory and user presets for plug-and-play setups, and a convenient full color 1.3" OLED display with rotary knob.

99 internal cues with fade and delay time
Remote configuration via internal webpage
Unlocks ONYX NOVA 4-universe license

Connections

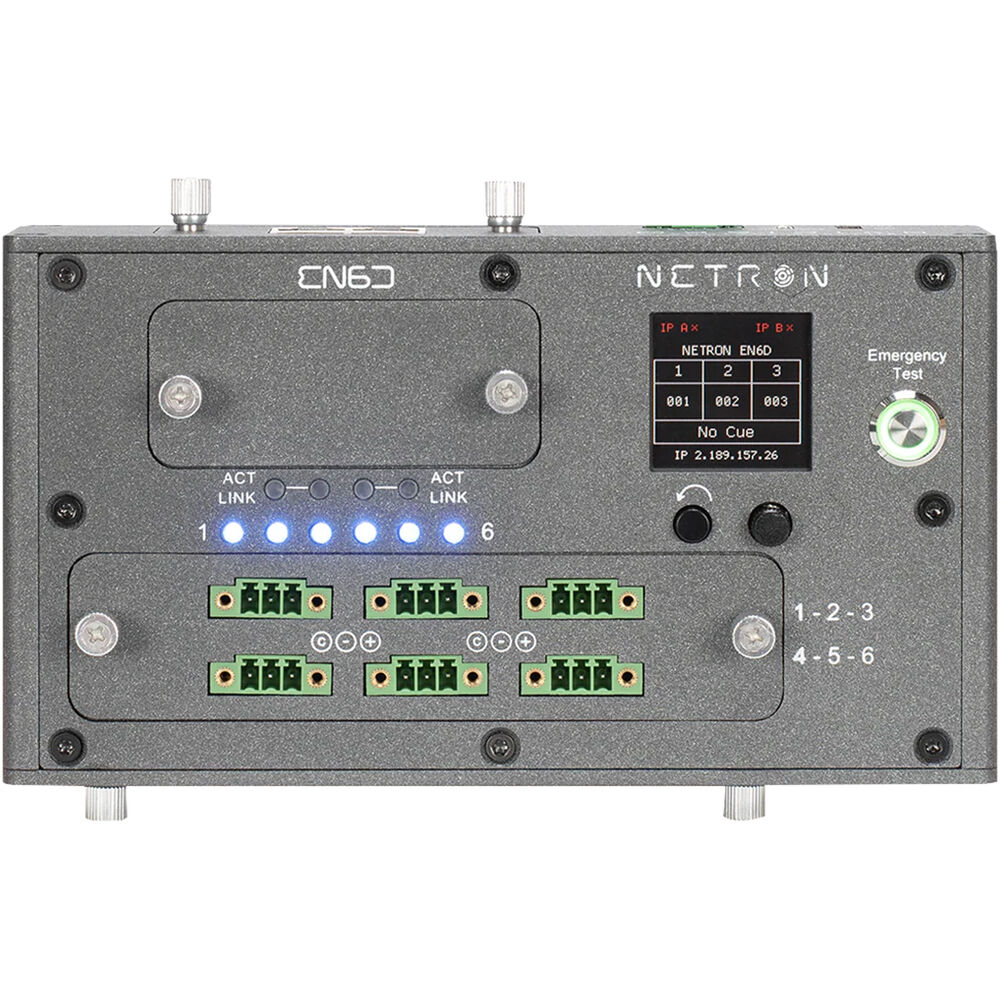

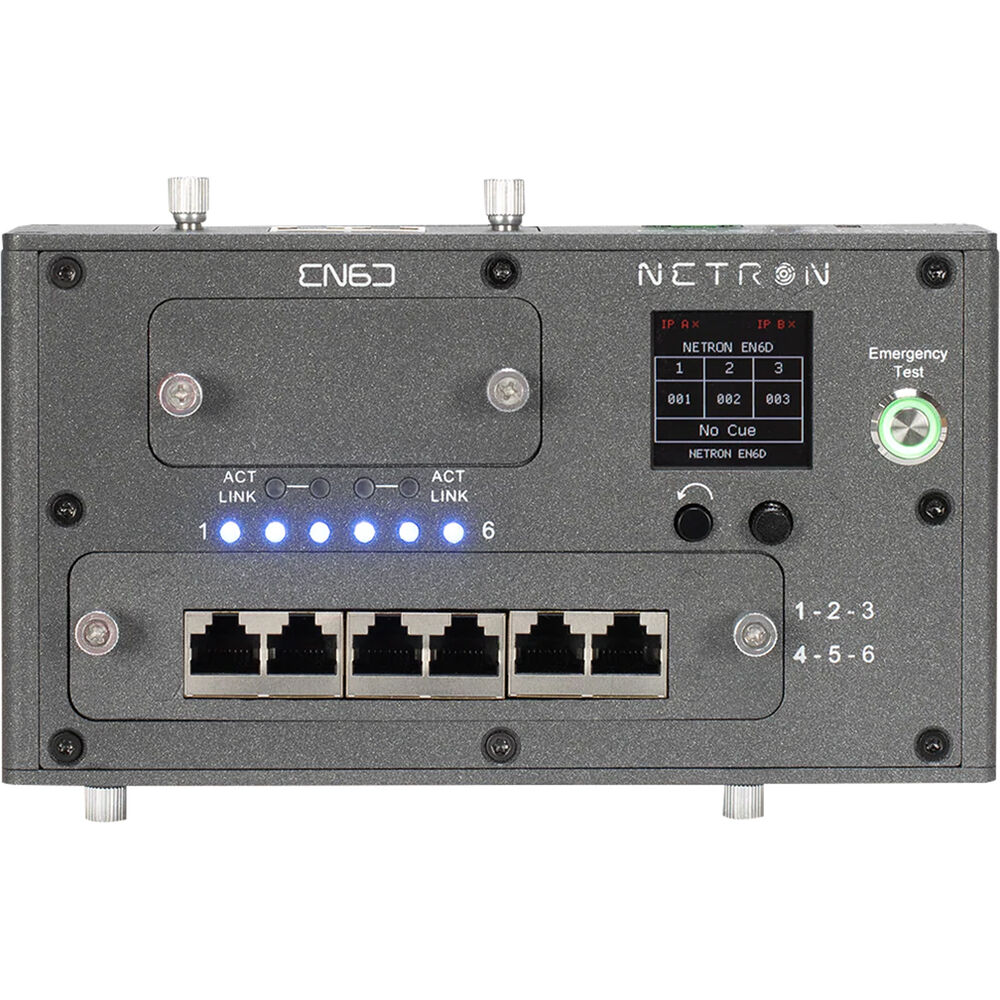

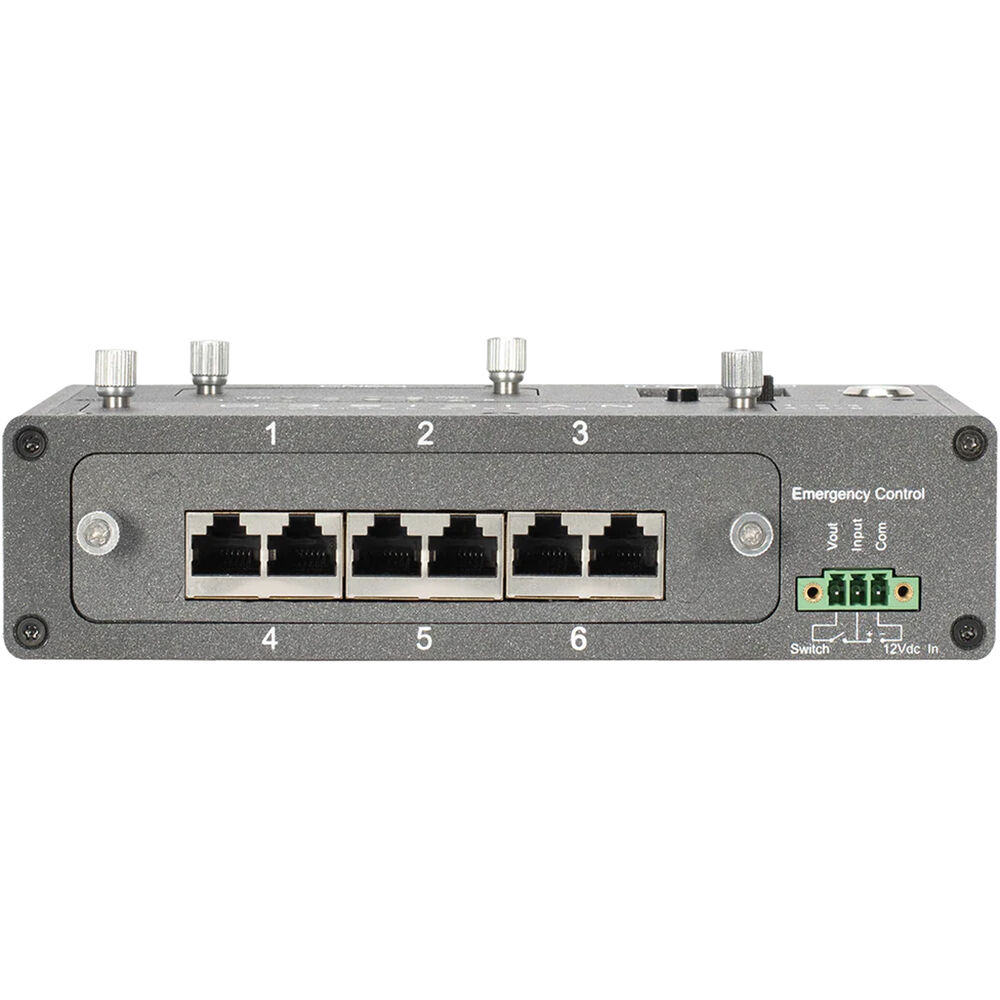

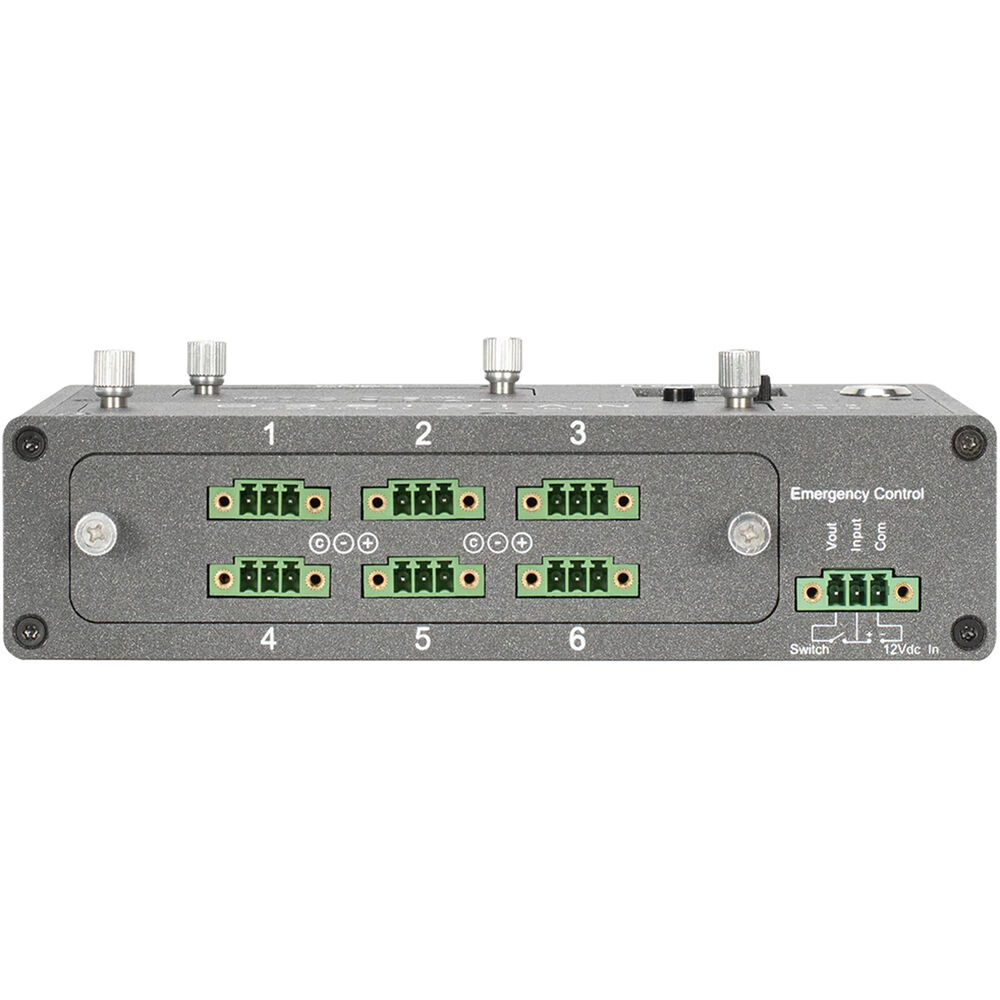

The EN6D includes a 6-port RJ45 connection plate, a 6-port terminal block connection plate, six screw terminals with security screws, and six IDC connectors with security screws.

Mounting

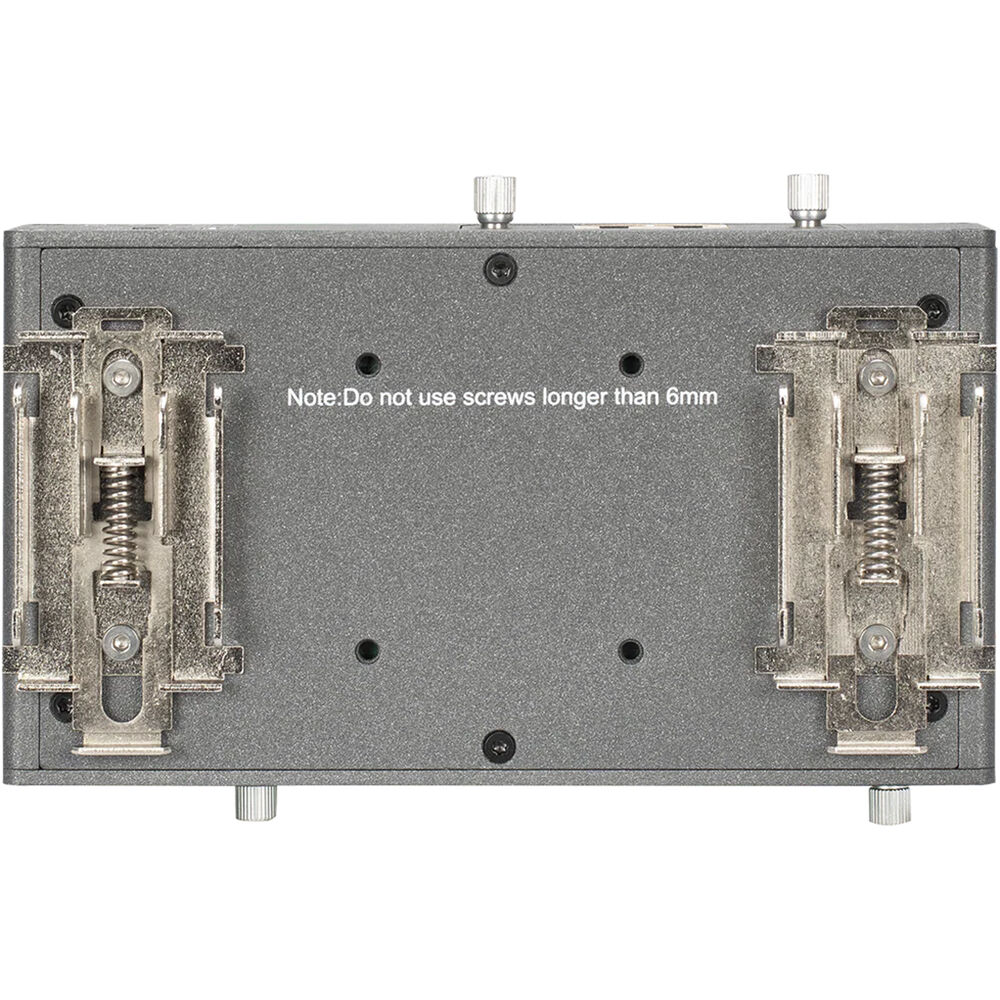

Its powder-coated aluminum housing is designed for DIN or wall mount. Elation Professional includes two wall-mount plates and DIN rail clamps for convenience.

Additional Details

UL924-compliant, the EN6D provides a dedicated emergency cue, wet, or dry contact closure, and a prominent test button with integrated LED feedback. Record a custom cue or set all DMX channels to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue. The unit has cETLus, CE, IP20, and UL924 approvals and ratings.

UPC: 810008264157

Items Included

Obsidian EN6D DIN Rail Wall Mount Ethernet/DMX Node
2 x DIN Rail Clamp
2 x Wall Mount Plate
RJ45 Connection Plate (6-Port)
Terminal Block Connection Plate (6-Port)
6 x Screw Terminal with Security Screws
6 x IDC Connector with Security Screws
Limited 2-Year Manufacturer Warranty

Additional Resources

User Manual

8.8 MB

Obsidian EN6D Specs

Key Specs

Inputs/Outputs	6x RJ45 Female Output
Power Source	Power Over Ethernet (PoE)
Protocol	ArtNet, RDM, sACN

General

Inputs/Outputs

6x RJ45 Female Output

Power

Power Source	Power Over Ethernet (PoE)
PoE Port Power	Yes

Compatibility

Protocol

ArtNet, RDM, sACN

Physical

Certifications	CE, UL924, cETLus
Environmental Resistance	Dust-Resistant (IP20)
Material of Construction	Aluminum
Dimensions	5.6 x 4.6 x 2.0" / 143.0 x 116.0 x 52.0 mm
