Description
Obsidian EN12I Overview

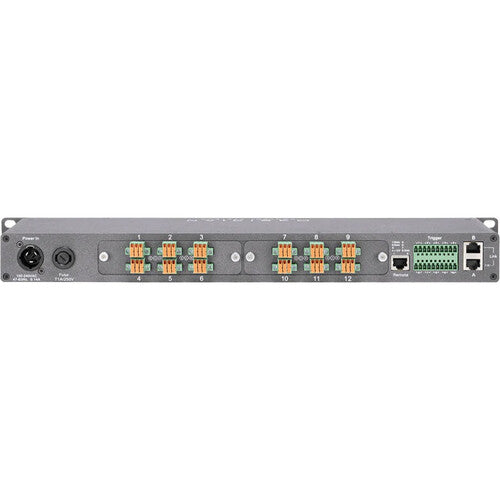

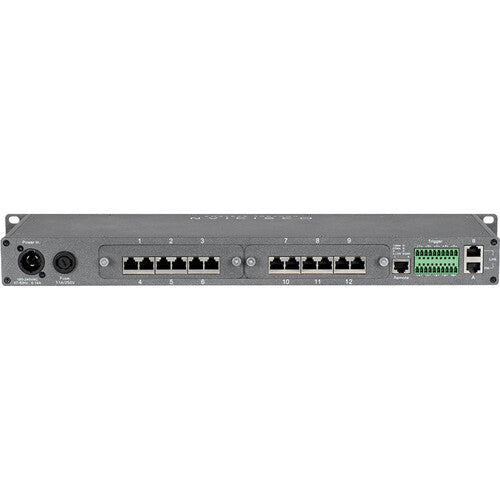

Ideal for permanent installations, the EN12i sACN & Art-Net to DMX Gateway Node from Elation Professional is a 12-port device featuring two front-access ports to the internal gigabit switch and a single 5-pin DMX output. The EN12i features 12 RDM-compatible wire terminal RJ45 outputs for a powerful Art-Net and sACN to DMX gateway lighting solution. The EN12i has a convenient 1.8" OLED screen with a rotary knob for easy management, as well as LED indicators for status feedback. With 100-240V nominal power, the EN12i can also be PoE powered. Elation Professional includes a 4.9' long locking power cable.
- 9W power consumption
- Unlocks the ONYX NOVA 4 universe license
- Remote configuration and firmware updates via NETRON CLU
- Optional BS10 remote button station for cues and presets
- cETLus and CE approval, plus IP20 rating
- Lightweight design at 4 lb
- Obsidian EN12i sACN & Art-Net to DMX Gateway Node (12-Port, 19")
- Locking Power Cable (4.9')
- 2 x RJ45 Connection Plate (6-Port)

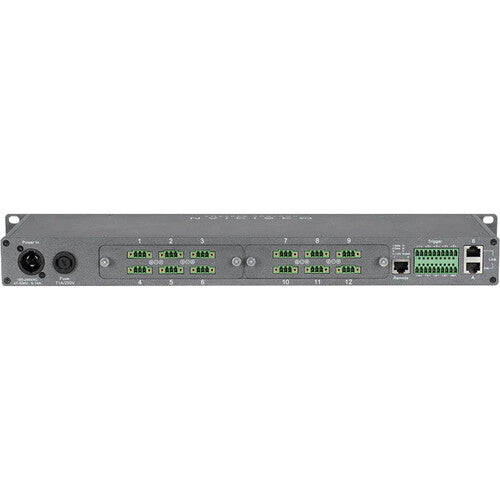

- 2 x Terminal Block Connection Plate (6-Port)

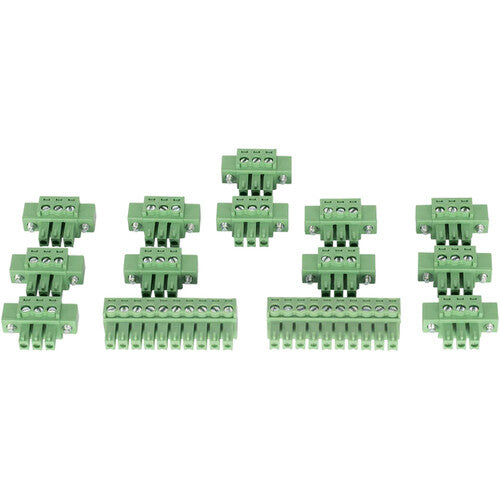

- 12 x Screw Terminal with Security Screws
- 12 x IDC Connector with Security Screws
- 2 x Terminal Block for Contact Closures (10-Port)
- Limited 2-Year Manufacturer Warranty
No additional resources available
Obsidian EN12I Specs
| Inputs/Outputs |
3x RJ45 (Gigabit Ethernet) Input/Output
12x RJ45 (DMX) Input/Output 1x XLR 5-Pin (DMX) Input/Output 1x RJ45 (Remote) 1x Terminal (Remote) 1x Power Input |
| Power Source |
AC Power
|
| Protocol |
ArtNet, DMX512, RDM, sACN
|
| Inputs/Outputs |
3x RJ45 (Gigabit Ethernet) Input/Output
12x RJ45 (DMX) Input/Output 1x XLR 5-Pin (DMX) Input/Output 1x RJ45 (Remote) 1x Terminal (Remote) 1x Power Input |
| Power Source |
AC Power
|
| Power Consumption |
9 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Port Power |
Yes
|
| Protocol |
ArtNet, DMX512, RDM, sACN
|
| Certifications |
CE, cETLus
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Rack Mount |
Yes
|
| Cable Length |
4.9' / 1.5 m
|
| Dimensions |
19.0 x 5.7 x 1.7" / 48.2 x 14.6 x 4.4 cm
|
| Weight |
4 lb / 1.8 kg
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
