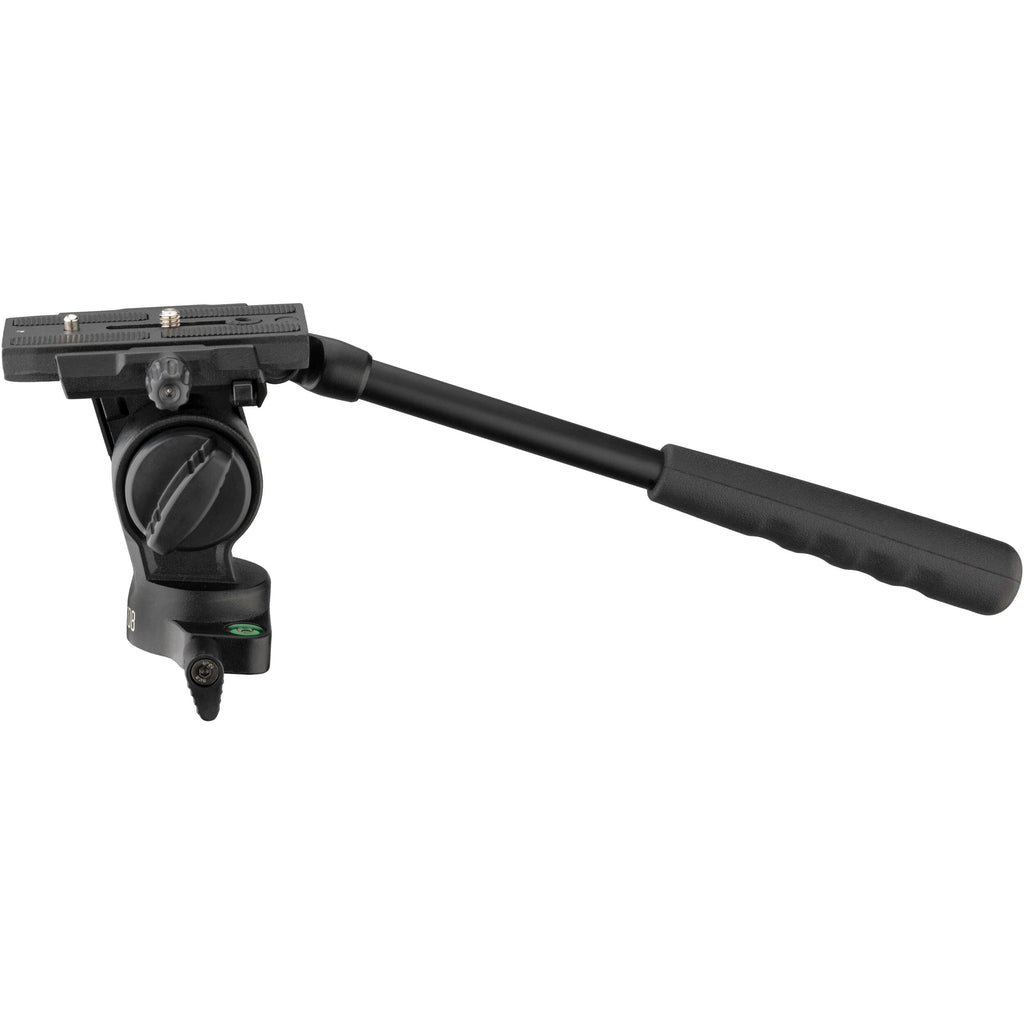

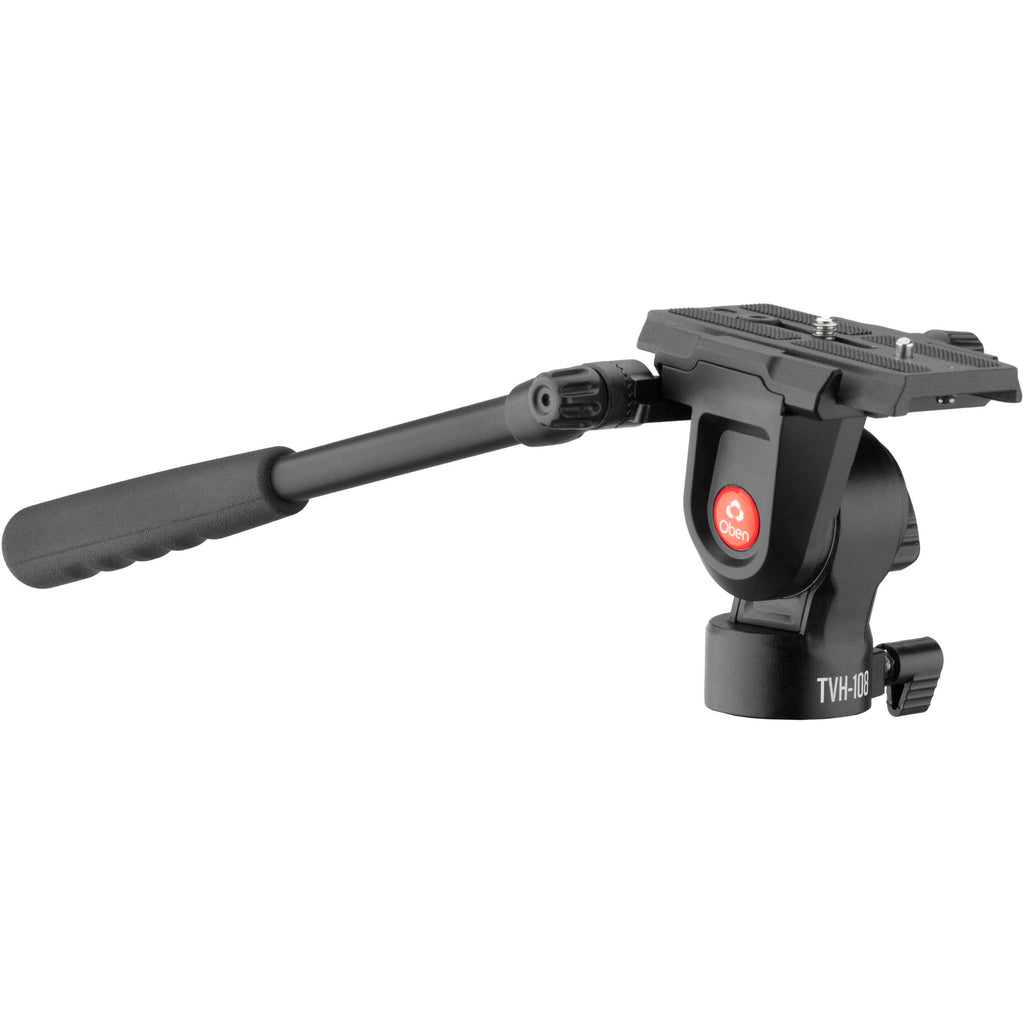

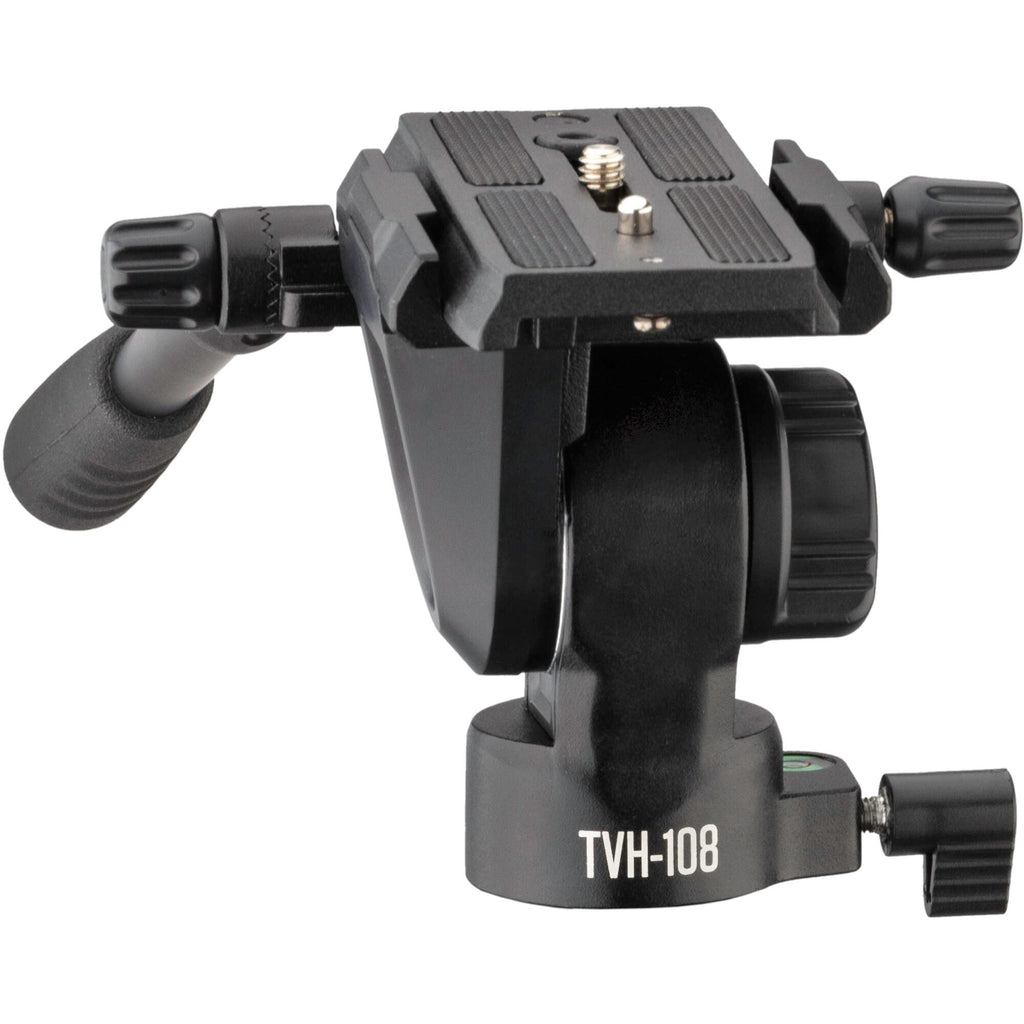

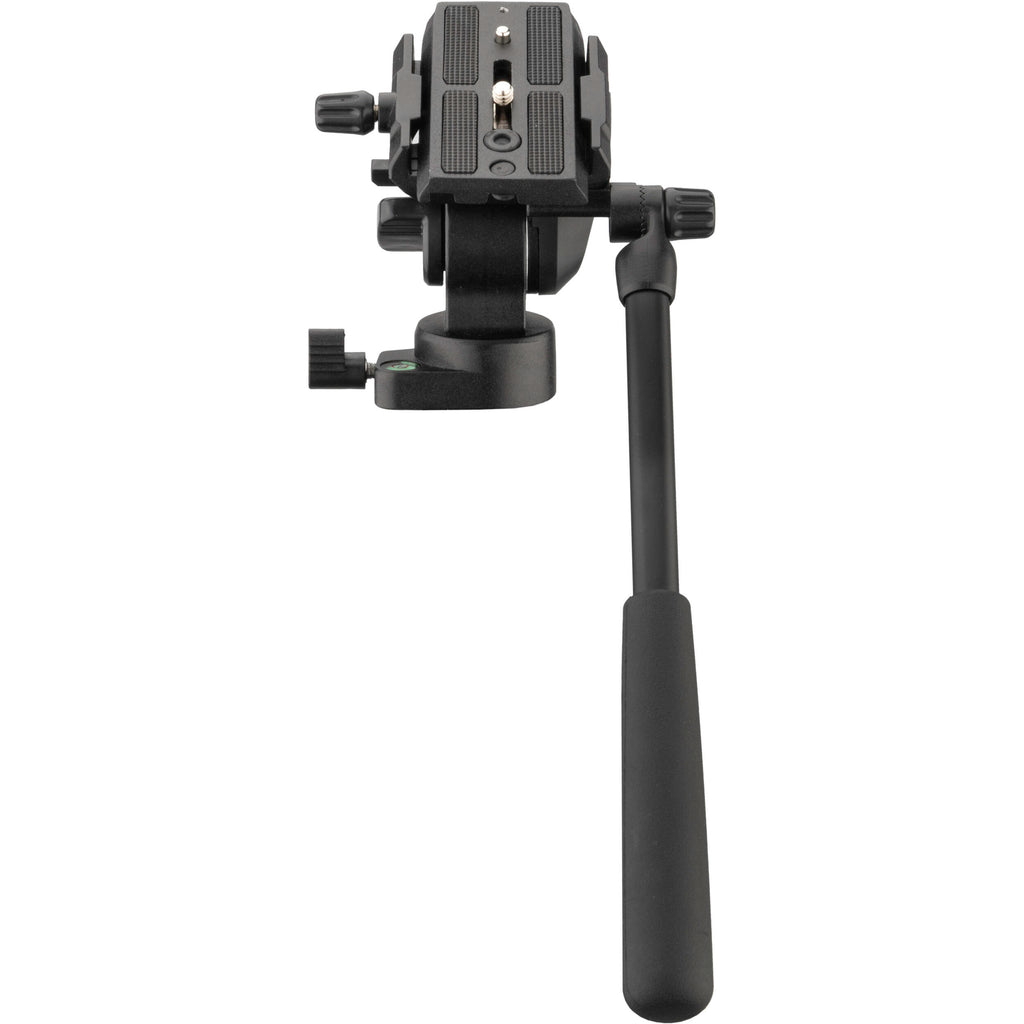

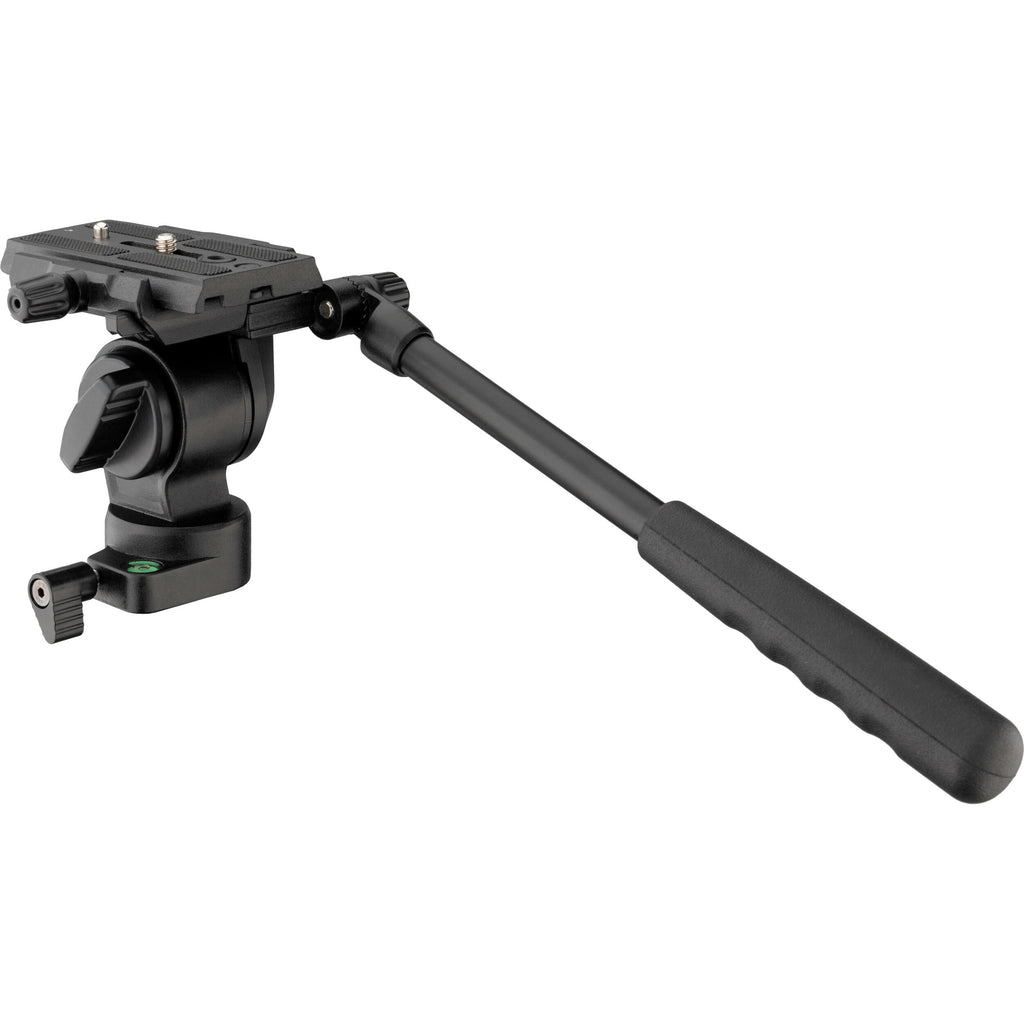

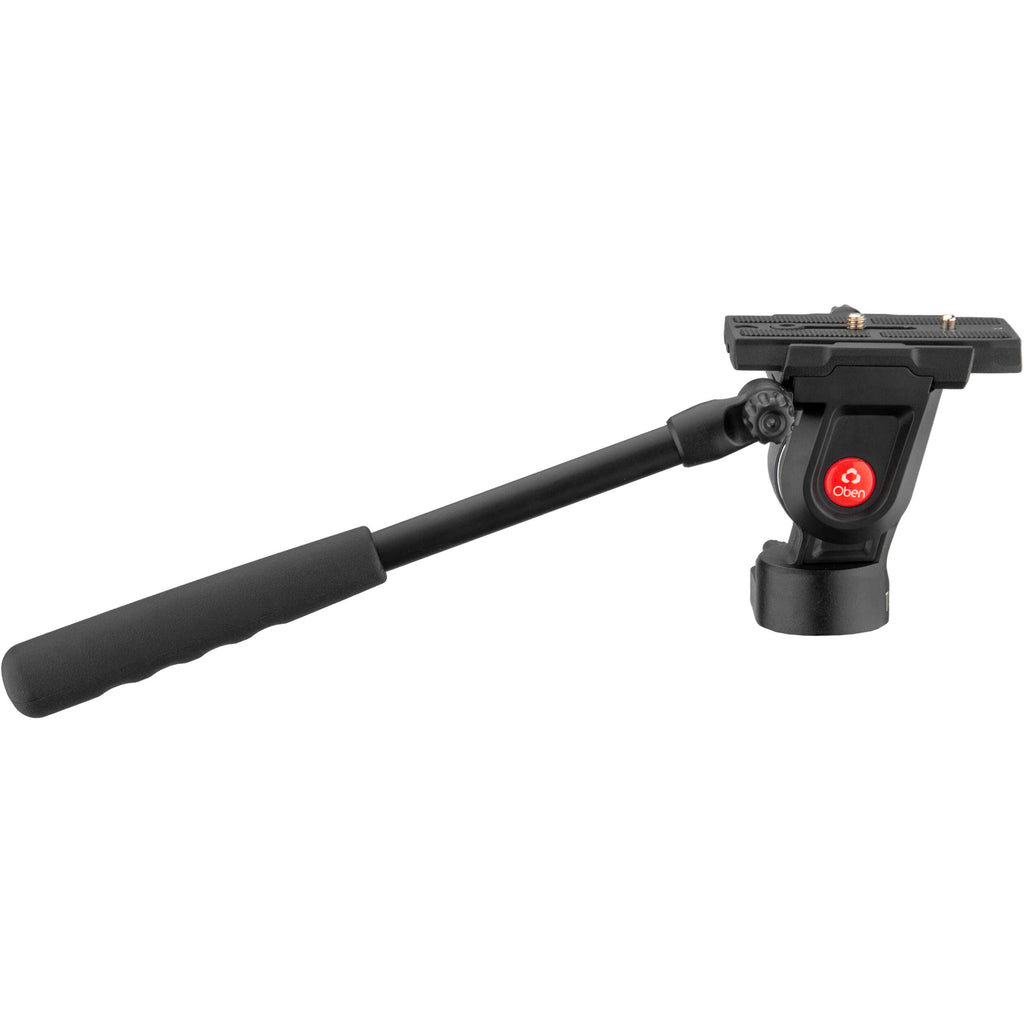

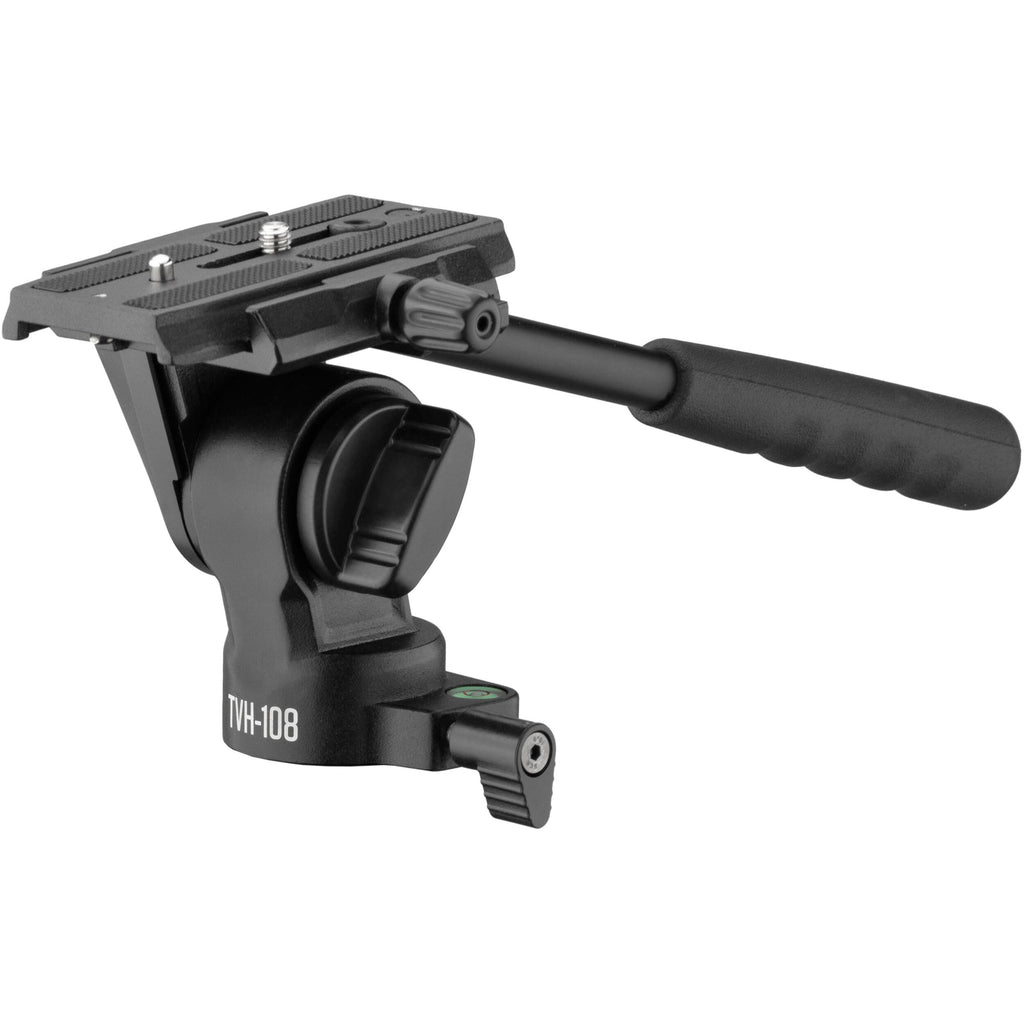

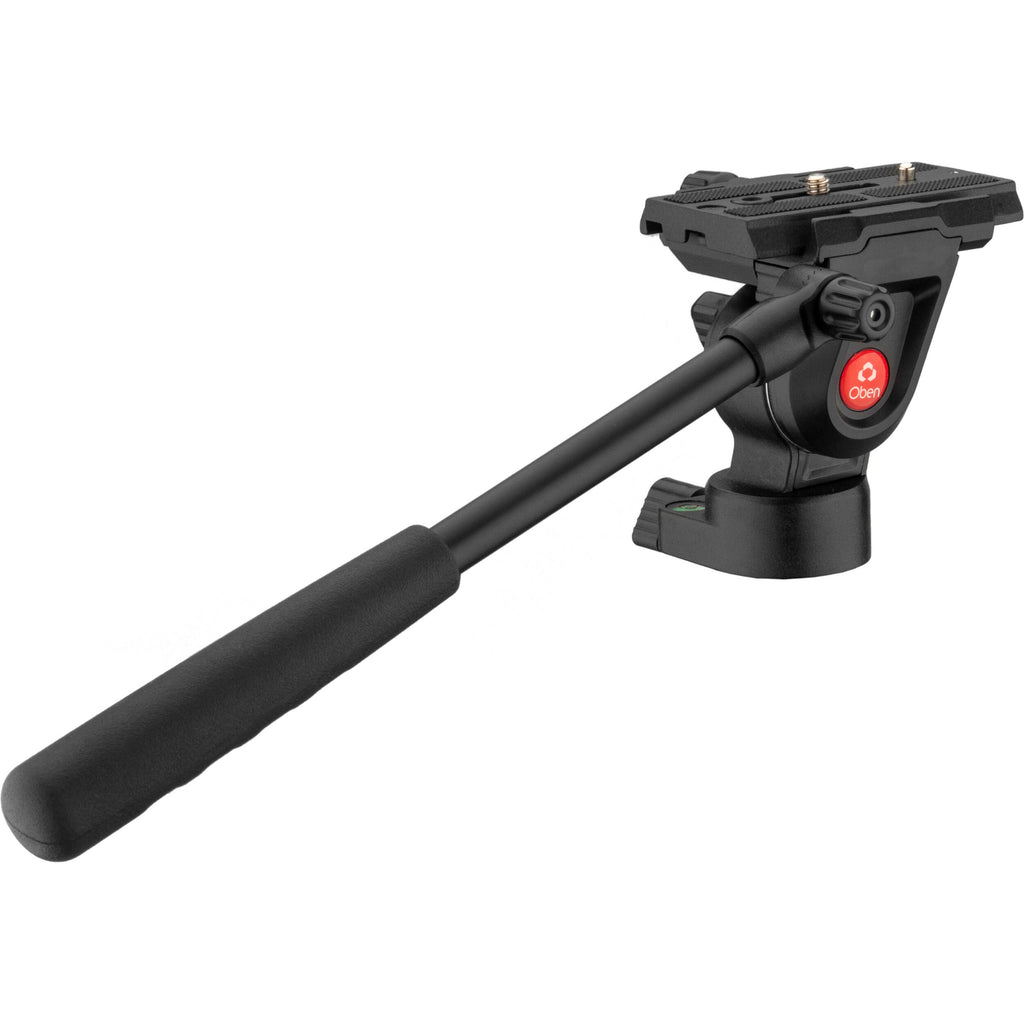

Compact Tripod Head Design for Travel8.8 lb Load Capacity, Bubble LevelFluid Pan/Tilt System, Pan/Tilt Locks501-Type Quick Release Plate Add a lightweight, compact video head to your run-and-gun-style video production rig with the TVH-108 Travel Video Head from Oben . Weighing in at only 1 lb, the TVH-108 is built to travel and supports a small camcorder, mirrorless, or DSLR camera rig weighing up to 8.8 lb.
The fluid-style drag system provides 360° pan and ±90° tilt motion using a built-in spring-loaded counterbalance, and it features individual pan and tilt locks. A removable pan handle is also included to help create smooth, steady pan and tilt shots.

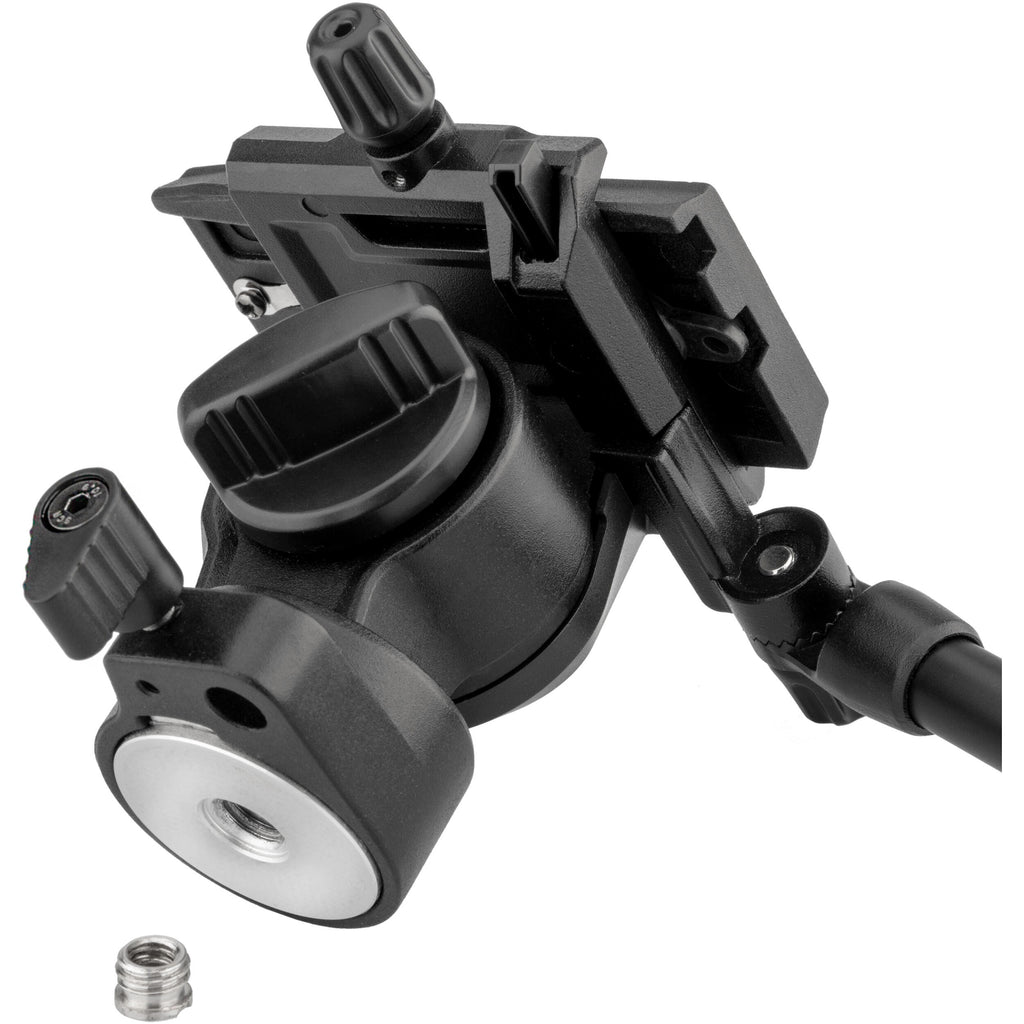

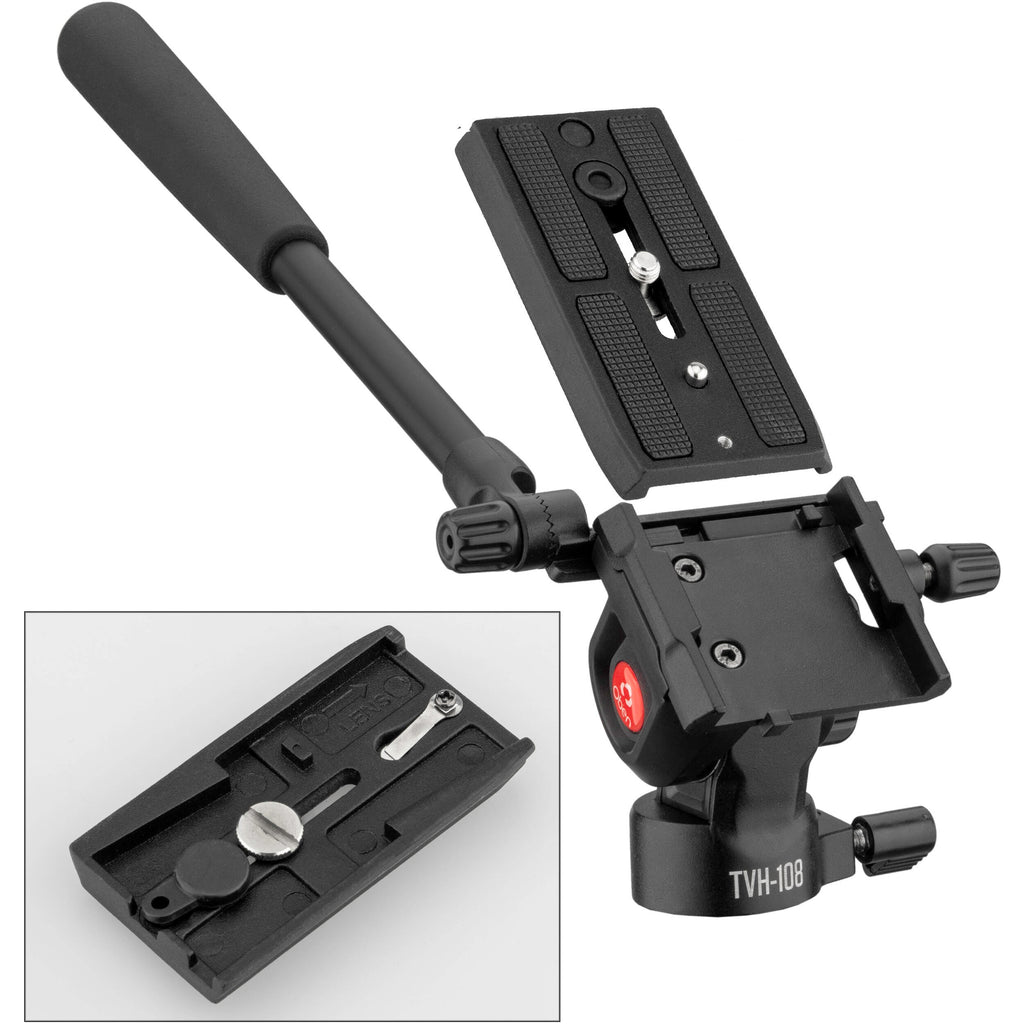

The camera mounts onto the 501-type quick release plate using its captive 1/4"-20 mounting screw, making it easy to easily transfer the camera onto a variety of compatible mounts. The flat base of the head measures 43mm in diameter and features a 3/8"-16 tripod mounting thread to fit most tripods, or you can mount it onto a 1/4"-20 screw using the included 1/4"-20 bushing. To keep your pans and tilts aligned with the horizon, a bubble level is integrated into the head.

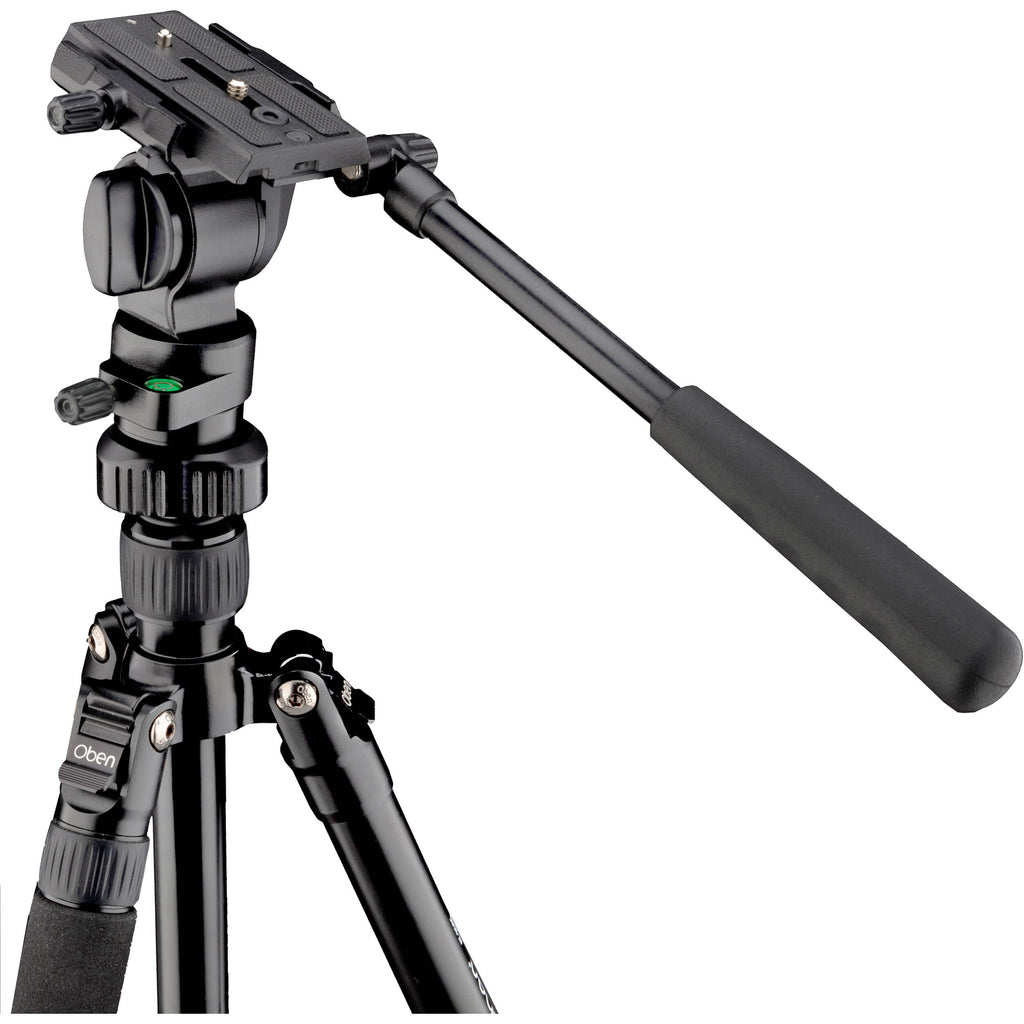

8.8 lb Load Capacity The TVH-108 head will support cameras and lenses up to 8.8 lb. This provides enough weight capacity whether you're shooting with a point-and-shoot camera, camcorder, or small DSLR camera with a lens. Tripod Compatibility The TVH-108 incorporates a 3/8"-16 tripod mounting thread, plus it includes a 1/4"-20 bushing for compatibility with most video tripods, including the Oben Lander tripod series, the AT-3565 Aluminum Travel Tripod, and the Oben CT-3565 Carbon Fiber Travel Tripod. Camera Compatibility The TVH-108 is compatible with cameras that have a 1/4"-20 mounting thread. Compact Design for Travel The compact design of the TVH-108 and the removable pan handle make this video head ideal for travel and easy to fit into a small gear bag. Weighing only 1 lb, the head won't weigh down your bag and will leave plenty of room for the rest of your gear. Fluid-Style Pan and Tilt It takes more than a steady hand to perform silky smooth pans and tilts. The TVH-108's fluid-type pan friction and spring-loaded tilt counterbalance will give you professional, hiccup-free pans and tilts. Separate Pan and Tilt Knobs With separate pan and tilt knobs, you can lock down one action while performing the other. When you're following action or revealing the height of a tree or building, your tilt will be linear, and your pan will be level. Bubble Level The integrated bubble level helps you align your camera with the horizon. When you use the TVH-108 video head with Oben Lander Series tripods, the tripod's leveling base lets you align the head quickly and easily. UPC: 847628022904
| Camera Plate Features | Quick Release |
| Camera Plate Type | 501 Type |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
| Base Mount | 3/8"-16 Female with 1/4"-20 Bushing Adapter |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -90° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Material | Aluminum |
| Load Capacity | 8.8 lb / 4 kg |
| Pan Handle Fittings | 1 x Rosette |
| Bubble Level | 1 |
| Base Diameter | 1.7" / 4.3 cm |
| Dimensions | 4" / 10.2 cm |
| Weight | 1 lb / 454 g |
| Package Weight | 1.35 lb |
| Box Dimensions (LxWxH) | 11 x 4.9 x 4" |
In the Box
- Oben TVH-108 Travel Video Head
- Quick Release Plate
- Pan Handle
- 3/8"-16 to 1/4"-20 Bushing
- Limited 5-Year Warranty
