Oben Skysill CFT-6194L Tripod with BE-117 Bal... Overview
The Skysill CFT-6194L 4-Section Carbon Fiber Tripod with 90° Lateral Column and BE-117 Dual-Action Ball Head from Oben pairs a versatile Skysill tripod with the robust BE-117 to create a tripod suitable for use for a variety of still and video applications, both in the studio or on location.
Oben CFT-6194L Skysill 4-Section Carbon Fiber Tripod with 90° Lateral Center Column
The sturdy, multi-featured Skysill CFT-6194L 4-Section Carbon Fiber Tripod with 90° Lateral Center Column from Oben delivers rock-solid support for cameras. It can be set up quickly and offers a variety of options for studio or location photography. This durable carbon fiber tripod supports up to 19 lb and features twist locks that quickly and effortlessly adjust its height up to 67" with the 14" center column fully extended. The center column can be removed and reversed to shoot from an inverted perspective for macro photography. This Skysill tripod is equipped with a center column that can rotate horizontally down to a 90° angle and swivel 360° around the tripod. Once it's in lateral orientation, the column's length is also adjustable to position a camera directly over the items being shot. This feature is a versatile option for product, document, macro, and low-angle photography.
Each leg can be positioned independently at three locking angles for shooting from lower perspectives or for leveling when on uneven terrain. A built-in bubble level helps keep the tripod aligned with the horizon, and interchangeable rubber or spiked feet provide traction on nearly any surface.
The CFT-6194L tripod features a 3/8"-16 accessory socket for attaching accessories like an articulating accessory arm to add an LED light, microphone, monitor, or flash to the tripod setup.
Carbon Fiber 4-Section Tripod
The durable carbon fiber tripod features four-section telescoping legs secured by ergonomic twist locks.
Three Locking Leg Positions
The legs can be independently set and locked at 25, 51, or 71°angles for stable support at low angles on uneven terrain.
Reversible Center Column
The rapid center column is secured by a locking collar for easy height adjustment. It is removable and reversible for low perspective shooting.

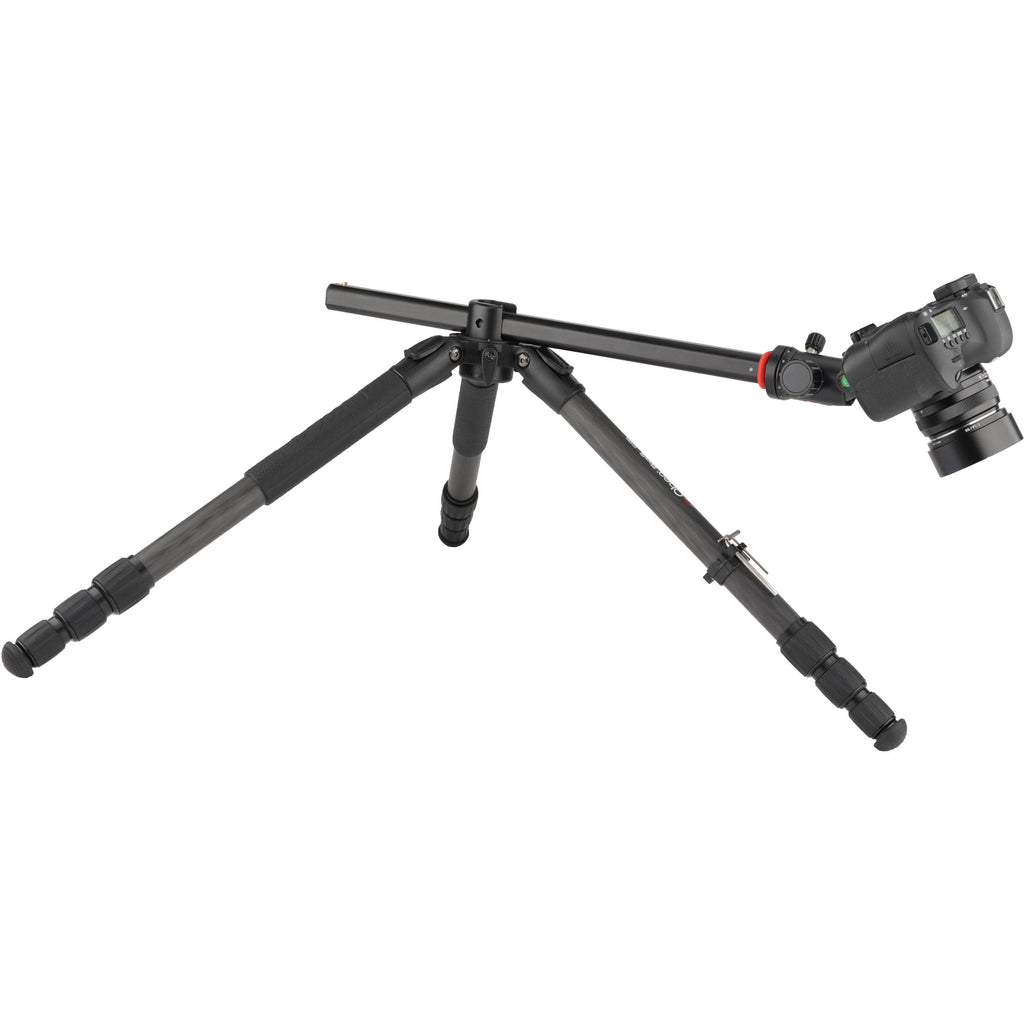

90° Lateral Center Column
This Skysill tripod is equipped with a center column that can rotate horizontally down to a 90° angle and swivel 360° around the tripod. Once it's in lateral orientation, the column's length is also adjustable to position a camera directly over the items being shot. This feature is a versatile option for product, document, macro, and low-angle photography.
Interchangeable Feet
The tripod's rubber feet prevent slipping on hard and highly polished surfaces, like a gym floor. The included spiked feet may be exchanged for solid footing on soft terrain and ice.
3/8"-16 Accessory Socket
An integrated 3/8"-16 accessory socket for attaching an accessory arm permits adding accessories like LED lights, microphones, monitors, or flashes to the tripod leg mount.
Reversible Tripod Head Mount
The center column's head mount is reversible for use with both 3/8"-16 and 1/4"-20 threaded bases.
![]()
UPC: 847628034228
Oben BE-117 Ball Head with Arca-Type Quick Release
The BE-117 Ball Head from Oben is a lightweight aluminum ball head with a load capacity of 17.6 lb, a large locking knob to control the movement of the ball, and a separate knob for the 360° panning movement. The individual knobs enable higher-precision adjustments to the head than are possible with single-lever heads. Taking panoramic photos is simple thanks to the panoramic scale at the base of the head. A notch in the ball head allows orientation to quickly change between portrait and landscape.
The included Arca-type quick release plate attaches to any camera and is secured in place with the receiver's locking knob, simply and reliably. Two removable safety screws on the bottom of the plate help prevent your camera from accidentally being released prematurely. One bubble level on the clamp and another on the locking knob ensure that the camera will be level with the horizon.
Dual Action Ball Head
The BE-117 dual-action ball head boasts smooth and effortless operation and features separate locking knobs for independently adjusting the ball and panoramic base.
Arca-Type Quick Release
The BE-117 Ball Head includes an Arca-type quick release plate for easily mounting and dismounting a camera. Adding a compatible Oben quick release plate to all your cameras facilitates camera swapping so you can exchange cameras without interrupting your shoot.
Dual Bubble Levels
The ball head features two integrated bubble levels to help make sure the camera is perfectly aligned with the horizon.
![]()
UPC: 847628563476
In the Box
- Oben CFT-6194L Skysill 4-Section Carbon Fiber Tripod with 90° Lateral Center Column
- 3 x Spiked Foot
- 3 x Hex Wrench
- 90° Lateral Center Column
- Carry Bag
- Limited 5-Year Warranty
- Oben BE-117 Ball Head with Arca-Type Quick Release
- Oben QR-20 Quick Release Plate
- Oben 3/8"-16 to 1/4"-20 Reducer Bushing
- Limited 5-Year Warranty
Oben CFT-6194L Skysill 4-Section Carbon Fiber Tripod with 90° Lateral Center Column Specs
General
| Load Capacity |
19 lb / 8.6 kg |
| Maximum Working Height |
67" / 170.2 cm |
| Max Height without Center Column |
53" / 134.6 cm |
| Minimum Working Height |
3.6" / 9.1 cm |
| Closed Length |
21.5" / 54.6 cm |
| Head Mount Type |
Reversible 1/4"-20 or 3/8"-16 Male |
| Weight |
4.2 lb / 1.9 kg |
| Materials |
Carbon Fiber |
| Bubble Level |
Yes |
Legs
| Leg Lock Type |
Twist Lock |
| Leg Positions |
3 Positions |
| Independent Leg Spread |
Yes |
| Leg Sections |
4 |
| Leg Diameter |
1.2" / 30 mm |
| Feet Features |
Rubber, Removable, Spiked |
Center Column
| Center Column Features |
Removable, Reversible |
| Center Column Shape |
Round |
| Center Column Sections |
1 |
| Center Column Extension Type |
Rapid |
| Lateral / 90-Degree Center Column |
Yes |
| Center Column Rotation |
360° |
Packaging Info
| Package Weight |
6.35 lb |
| Box Dimensions (LxWxH) |
26 x 5.4 x 5.4" |
Oben BE-117 Ball Head with Arca-Type Quick Release Specs
General
| Head Type |
Ball Head |
| Base Mount |
3/8"-16 Female |
| Quick Release Plate Type |
Arca-Type |
| Load Capacity |
17.6 lb / 7.98 kg |
| Number of Bubble Levels |
2 |
| Friction Control |
No |
| Independent Pan Lock |
Yes |
| Material |
Aluminum |
Pan & Tilt Range
| Vertical Tilt |
90° |
| Panning Range |
360° |
Physical
| Ball Sphere Diameter |
1.26" / 32 mm |
| Base Diameter |
1.8" / 4.5 cm |
| Dimensions |
H: 3.7" / H: 9.3 cm |
| Weight |
13.4 oz / 380 g |
Packaging Info
| Package Weight |
1.13 lb |
| Box Dimensions (LxWxH) |
5.05 x 4.25 x 3.45" |
