- Arca-Type-Compatible Clamp
- Large Locking Knob and Safety Stops
- Dual Bubble Levels for Alignment
- Positioning Scale for Repeated Setup
- Includes QR-10 Quick Release Plate
- 3/8"-16 Threaded Mount with Bushing

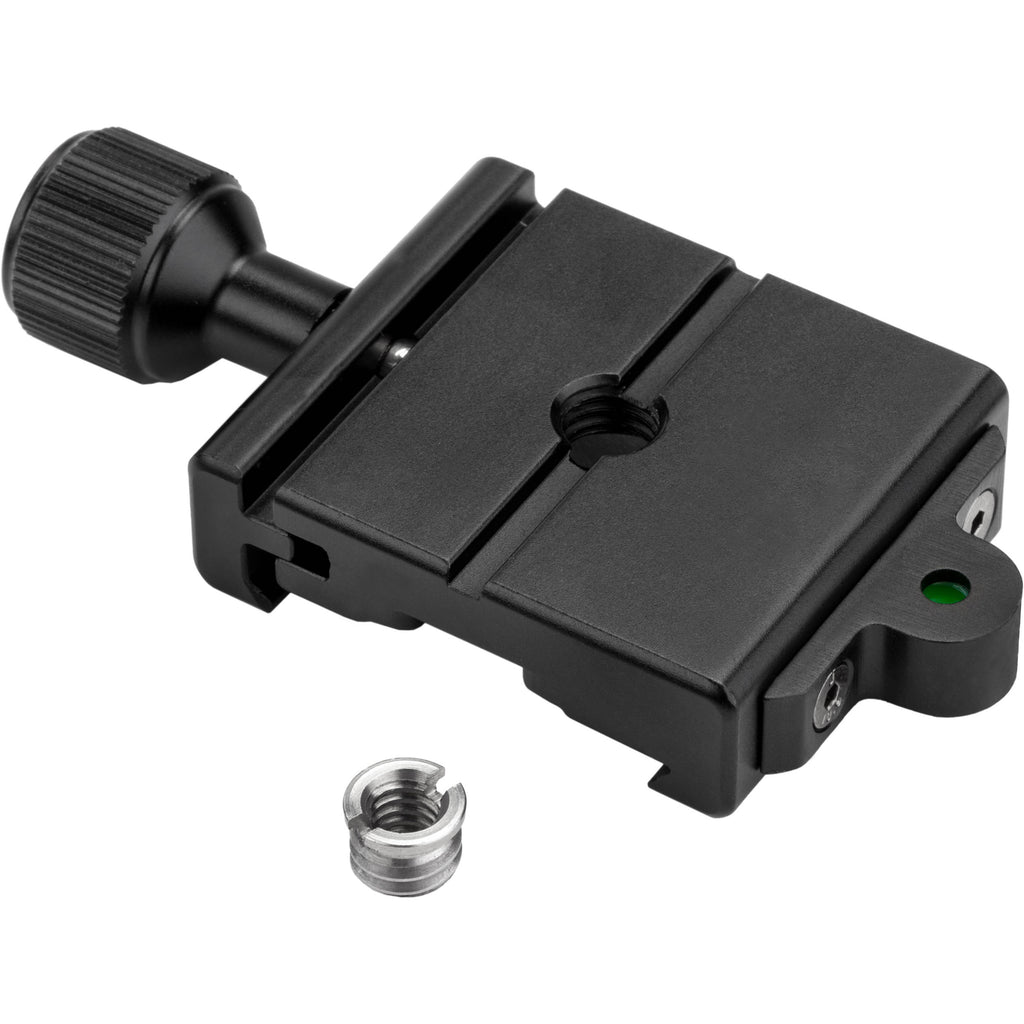

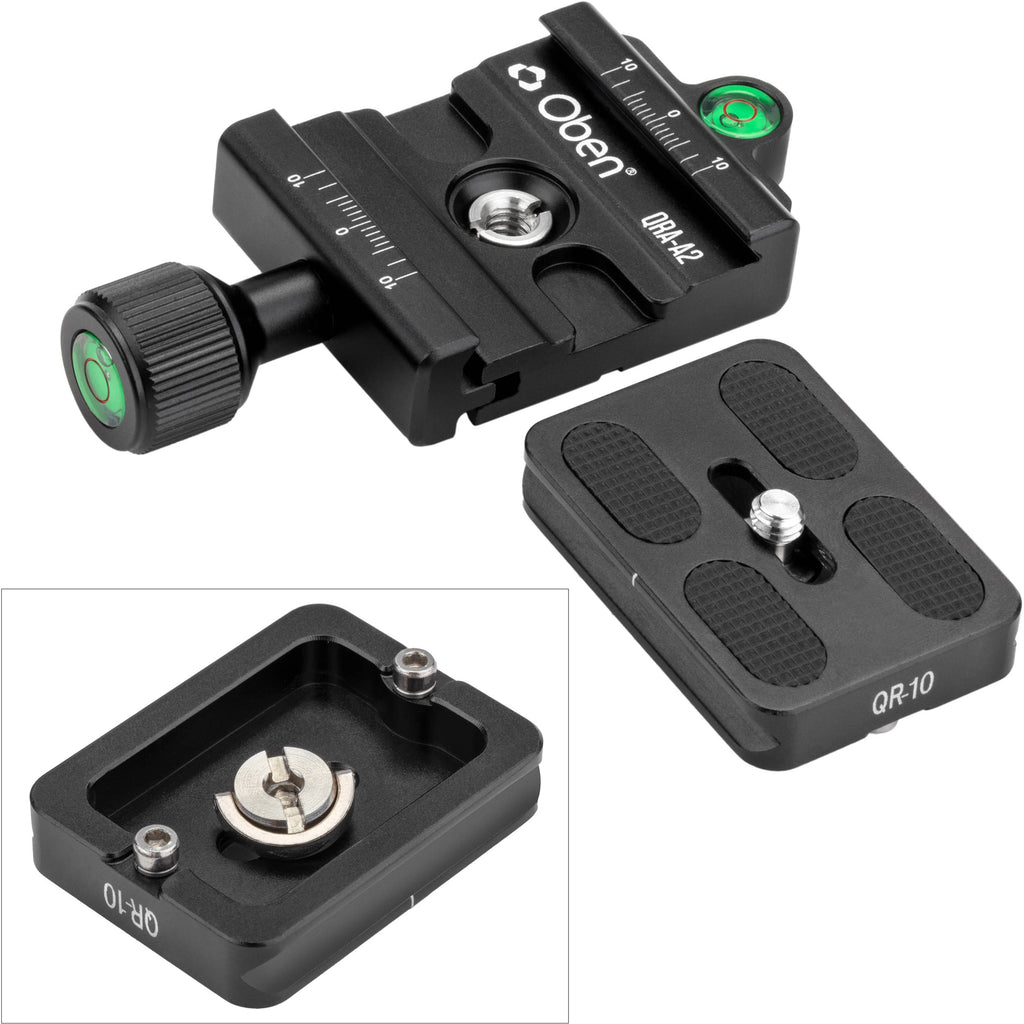

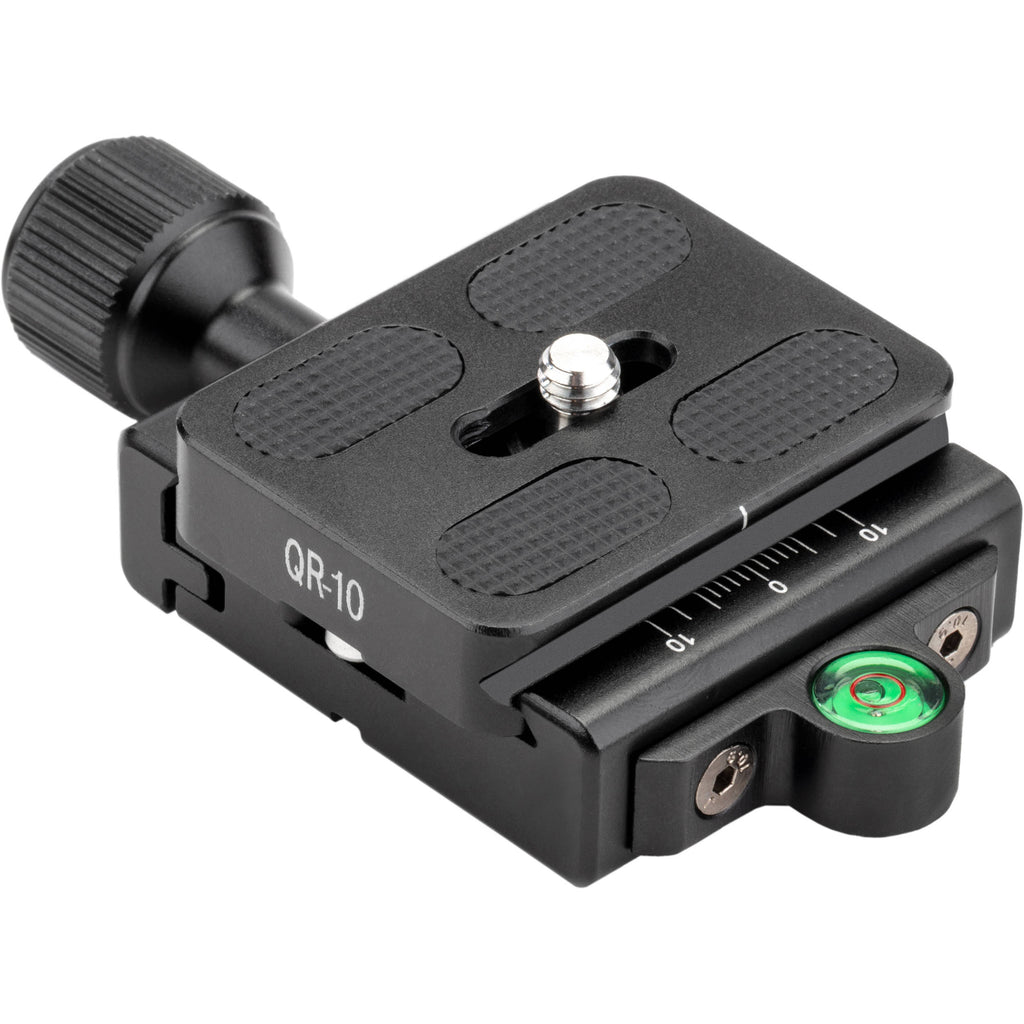

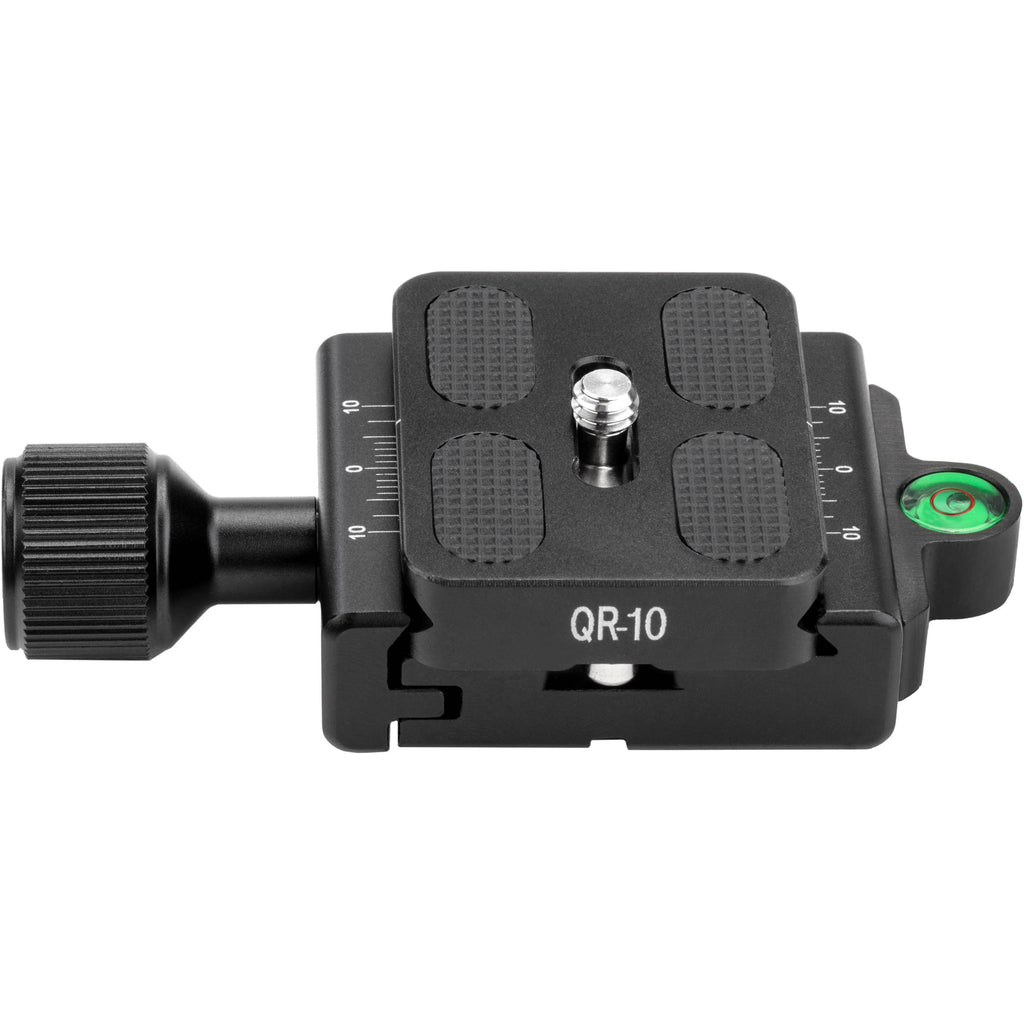

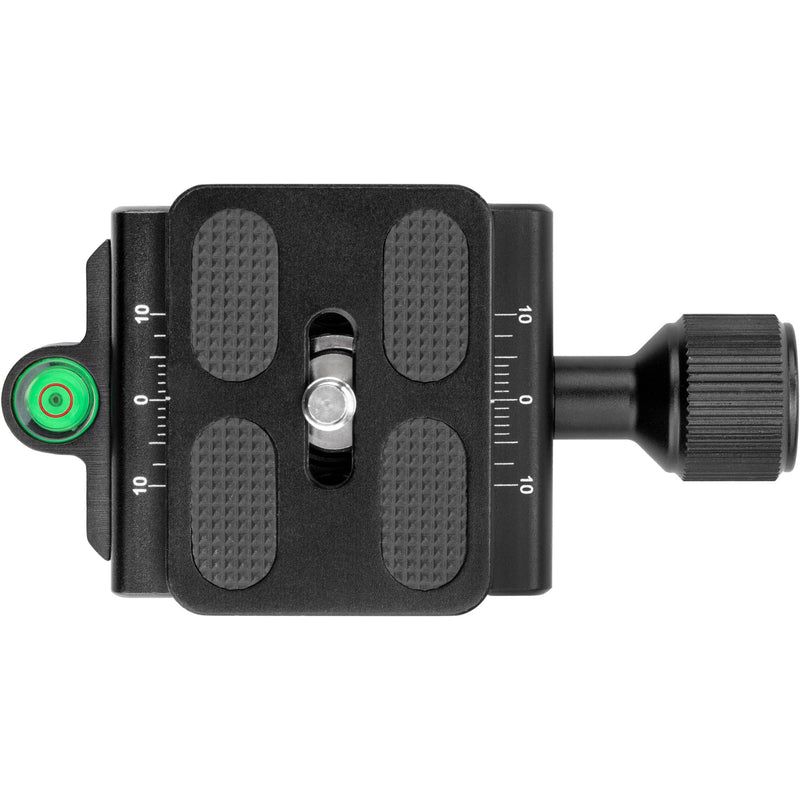

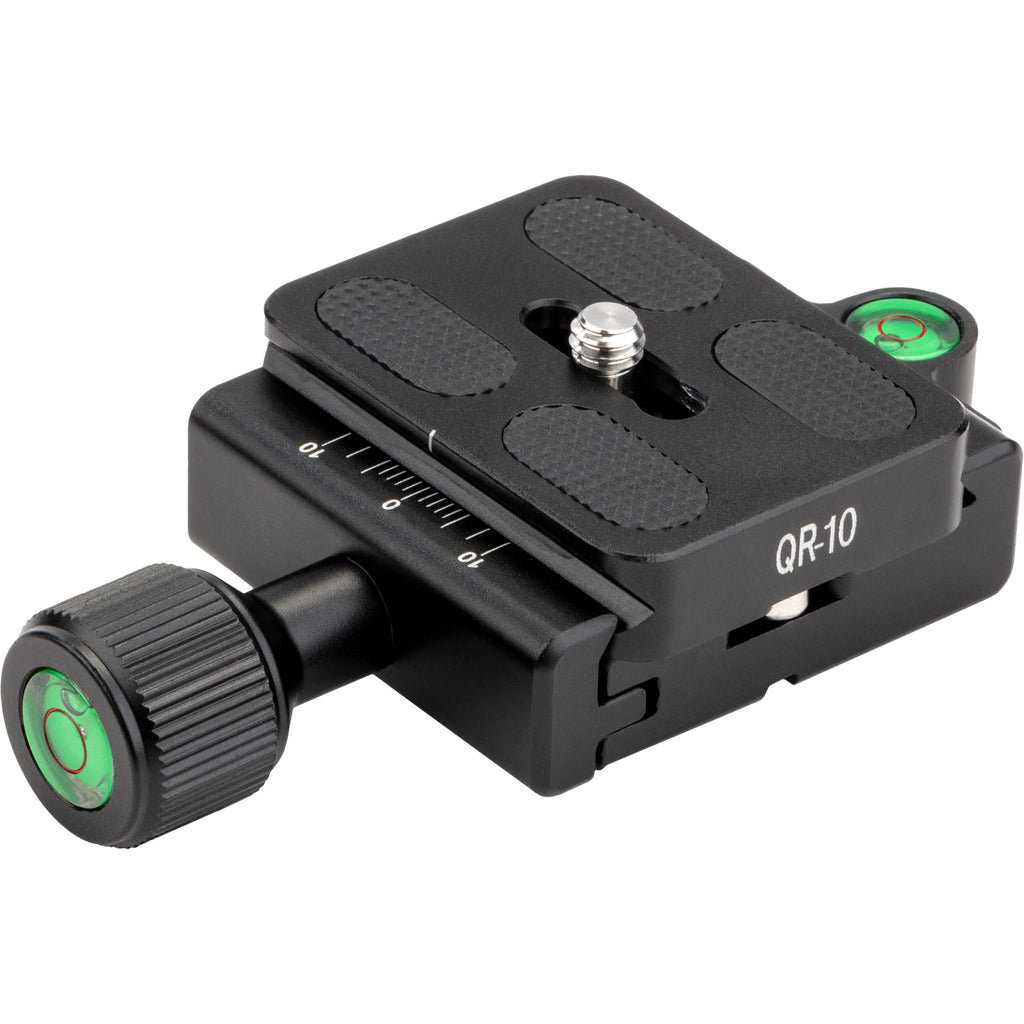

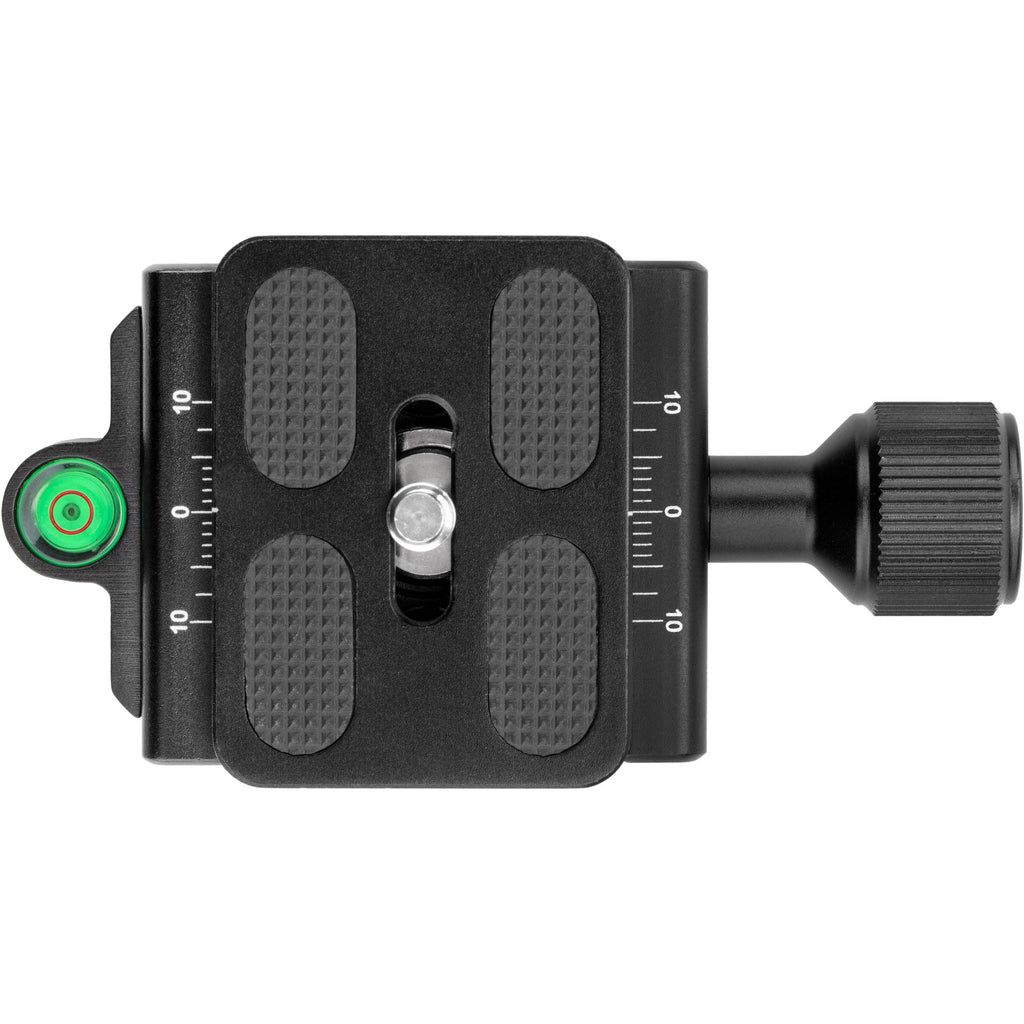

The compact QRA-A2 Quick Release Assembly with QR-10 Plate from Oben is an Arca-type-compatible clamp with a locking knob to lock the quick release plate down. The quick release plate has integrated safety stops to prevent it from sliding out if the clamp is accidentally opened. The dual bubble levels enable you to align the assembly in a horizontal or vertical orientation. At the top of the clamp, the positioning scale helps you to accurately seat the plate and to repeat a previous setup. The 3/8"-16 threaded tripod mount allows you to mount the assembly to a head, tripod, or monopod that does not have a quick release system, and a reducer bushing is supplied for 1/4"-20 threads.
- Clamp includes an Arca-type compatible QR-10 plate with integrated safety stops to prevent the plate from accidentally sliding out if the clamp is partially opened
- The assembly's large locking knob helps to clamp down onto the plate and keep it in place
- Dual bubble levels enable you to align the assembly in a horizontal or vertical orientation
- Positioning scale helps you to accurately seat the plate and to repeat a previous setup
- 3/8"-16 threaded mount allows the assembly to attach to heads, tripods, and monopods, but a 1/4"-20 reducer bushing is supplied for smaller threads
UPC: 847628009813
In the Box
Oben QRA-A2 Quick Release Assembly with QR-10 Plate
QR-10 Quick Release Plate 3/8"-16 to 1/4"-20 Reducer Bushing Hex Key Limited 5-Year Warranty
Oben QRA-A2 specs
| Plate/Rail |
| Camera Mounting Screw | 1 x 1/4"-20 Male |
| Plate Dimensions | L: 1.9" / L: 4.8 cm |
| Assembly |
| Locking Method | Screw Knob |
| Assembly Dimensions | L: 1.8 x W: 3.7 x H: 0.6" / L: 4.6 x W: 9.4 x H: 1.5 cm |
| General |
| Quick Release Type | Arca-Type |
| Tripod Mounting Thread | 1 x 3/8"-16 Female |
| Material | Aluminum |
| Weight | 3.5 oz / 99.0 g |
| Packaging Info |
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 7.25 x 4.5 x 0.1" |
