Description

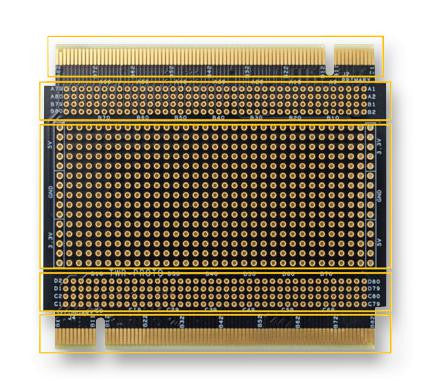

The TWR-PROTO Prototyping Module provides an easy way for designers to add custom circuitry to their Tower System designs. The TWR-PROTO module is a 9 x 8cm board with card-edge connectors that allows it to be plugged directly into the Tower System. The perfboard area provides access to all of the signals as well as a generous 8.3 x 3. cm prototyping area. This peripheral module is designed to be combined and used with other MCU and peripheral modules in the Tower System.
- Access to all signals on primary and secondary elevator connectors for prototyping & signal probing
- Prototyping area for adding custom circuitry to Tower System
- Bread board prototyping area with 5V, 3.3V and GND access
- An easy way for designers to add custom circuitry to their Tower System designs
- 9 x 8cm board with card-edge connectors that allows it to be plugged directly into the Tower System
Applications
Signal Processing, Embedded Design & Development, Industrial
Contents
TWR-PROTO module, Quick Start Guide document
Product details
| Kit Contents | Prototyping Module, Quick Start Guide |
| Silicon Core Number | - |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Core Sub-Architecture | - |
| For Use With | NXP Tower System |
| Silicon Manufacturer | - |
Other details
| Brand | NXP |
| Part Number | TWR-PROTO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
| One Page Summary EN | |
