| ₹ 45768.64 includes GST and import duties. | |
| B2B customers can avail ₹ 6979.72 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

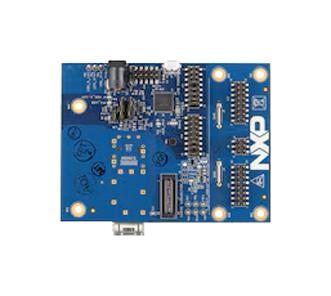

TJA1103-SDBS is a SABRE development board for TJA11xx PHYs. This SABRE development board is purpose-built tool to evaluate the SGMII. To enable quick application prototyping, various NXP system development boards feature the common SABRE connector; for example, our latest radar SoCs. This board represents a reference design for scaling from 100 to 1000BASE-T1 with or without MACsec within our PHY family. It is important to note that with the help of SABRE connectorTJA1103-SDBS board can smoothly interface with S32K and S32G µP/µC evaluation boards. Suitable for automotive an industrial applications.
- TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver
- S32K3 microcontrollers for automotive general purpose
- 100BASE-T1 and 1000BASE-T1 automotive ethernet
- Supports SGMII
- SMA and JTAG connectors
- Voltage and current tap points
- Control signals are accessible via pin headers
- Configurable pin strapping jumper settings
- Control signals for inhibit and wake in/out
- Multiple supply options
Contents
Assembled and tested TJA1103-SDBS evaluation board in an antistatic bag, Cable: UTP with 2x MateNET connectors.
Product details
Other details
| Brand | NXP |
| Part Number | TJA1103-SDBS |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 44853.27 |
| 3-5 | ₹ 44395.58 |
| 5-10 | ₹ 43480.21 |
| 10+ | ₹ 42564.84 |
Bulk discount will be automatically applied during checkout based on quantity.
