| ₹ 177.14 includes GST and import duties. | |
| B2B customers can avail ₹ 27.01 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
TJA1044VTKZ is a high-speed CAN transceiver with standby mode. It is a part of the Mantis family of high-speed CAN transceivers. It provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing the differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. The TJA1044V implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5Mbit/s.
- Fully ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
- Certified according to latest VeLIO test requirements
- Very low-current Standby mode with host and bus wake-up capability
- Optimized for use in 12V automotive systems
- AEC-Q100 qualified
- High ESD handling capability on the bus pins (8 kV IEC and HBM)
- Bus pins protected against transients in automotive environments
- Undervoltage detection on pins VCC and VIO, thermally protected
- Supply voltage range from 4.75 to 5.25V (Tvj = -40 to +150°C, VCC = 4.75 to 5.25V)

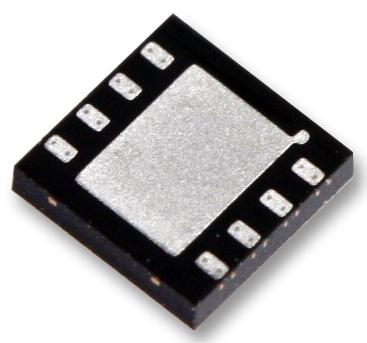

- HVSON8 package, virtual junction temperature range from -40 to 150°C
Product details
Other details
| Brand | NXP |
| Part Number | TJA1044VTKZ |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 173.6 |
| 3-5 | ₹ 171.83 |
| 5-10 | ₹ 168.28 |
| 10+ | ₹ 164.74 |
Bulk discount will be automatically applied during checkout based on quantity.
