| ₹ 228.22 includes GST and import duties. | |
| B2B customers can avail ₹ 34.8 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

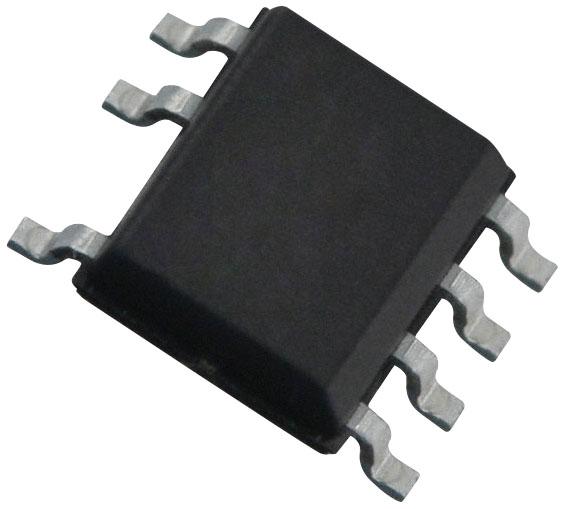

The TEA1723AT/N1 is a Switched Mode Power Supply (SMPS) Controller IC for power applications and operates directly from the rectified universal mains input. The device includes a high voltage power switch and has been optimized for fly-back converter topologies to provide high-efficiency over the entire load range with ultra-low power consumption in the no-load condition. It provides a circuit for start-up directly from the rectified mains voltage without any external bleeder circuits. The converter operates as a regulated voltage source from no-load up to the maximum output current and operates as current source that delivers the maximum current over a broad output voltage range. Using the TEA1723, a low power converter can be built at minimum cost and with the minimum number of external components. The controller regulates the output voltage with primary-side sensing which eliminates the need for an additional secondary feedback circuitry and simplifies the design.
- Primary sensing for control of output voltage without optocoupler and secondary feedback circuitry
- Minimizes audible noise in all operation modes
- Jitter function for reduced EMI
- Very low supply current in no-load condition with energy saver mode
- Incorporates high voltage start-up circuit with zero current consumption under switching operation
- Overvoltage protection on feedback control pin with auto-restart
- Undervoltage lock-out protection on IC supply pin
- Over temperature protection
- Soft-start by reduced peak current for zero and low output voltage
- Demagnetization protection for guaranteed discontinuous conduction mode operation
- Open and short-circuit protection of the feedback control pin
- Short-circuit protection of the charger output
- 700V High voltage power switch for global mains operation
- <12mW Enables no-load power consumption
Power Management, Computers & Computer Peripherals, Consumer Electronics
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | NXP |
| Part Number | TEA1723AT/N1,118 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 223.66 |
| 3-5 | ₹ 221.37 |
| 5-10 | ₹ 216.81 |
| 10+ | ₹ 212.24 |
Bulk discount will be automatically applied during checkout based on quantity.
