Description
The SPC5674FF3MVV3 is a 32-bit Microcontroller based on e200z7 core complex compliant with power architecture embedded category operates at a maximum frequency of 264MHz. The device incorporates 4096kB internal flash, 256kB internal RAM, 64-channel 10-bit A/D converter and four controller area network (FlexCAN) modules. This device also features peripherals like four deserial serial peripheral interface modules (DSPI), three serial communications interface (eSCI) module.
- Dual issue, 32-bit CPU core complex (e200z7)
- Compliant with power architecture embedded category
- 16kB I-cache and 16kB D-cache
- variable length encoding (VLE)
- Optional encoding of mixed 16-bit and 32-bit instructions
- Includes signal processing extension (SPE2)
- 2 Direct memory access controller (eDMA2) blocks
- Interrupt controller (INTC)
- Frequency modulated phase-locked loop (FMPLL)
- Crossbar switch architecture
- External bus interface (EBI)
- System integration unit (SIU)
- Error correction status module (ECSM)
- Boot assist module (BAM)
- 2 Second-generation enhanced time processor units (eTPU2) that share code and data RAM
- Enhanced modular input output system supporting 32 unified channels (eMIOS)
- 4 Enhanced queued analog-to-digital converters (eQADC)
- 2-channel FlexRay controller
- Nexus development interface (NDI) per IEEE-ISTO 5001-2003/5001-2008 standard
- Device and board test support per JTAG (IEEE 1149.1)
Applications
Automotive, Embedded Design & Development
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: MPC5 Family MPC56xx Series Microcontrollers |
| Device Core: Power Architecture |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 264MHz |
| Program Memory Size: 4MB |
| No. of Pins: 516Pins |

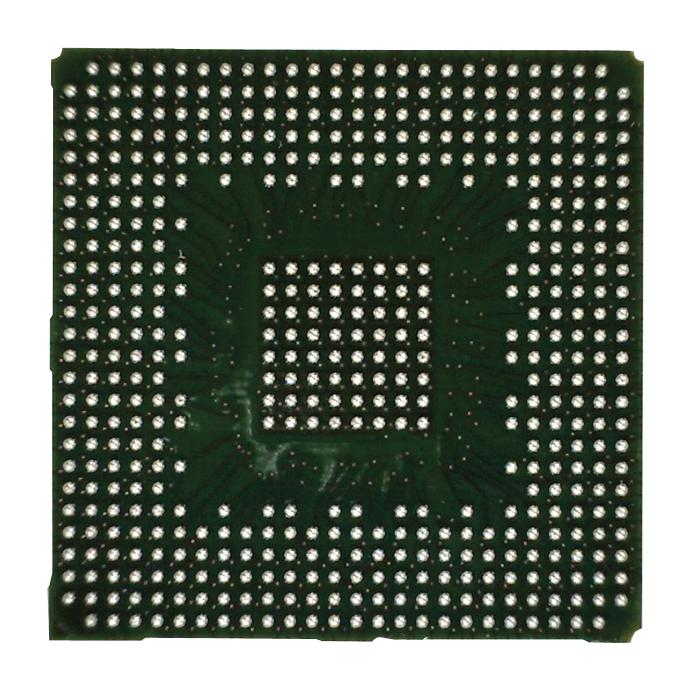

| IC Case / Package: PBGA |
| No. of I/O's: - |
| Interfaces: CAN, SCI, SPI |
| RAM Memory Size: 265KB |
| ADC Channels: 64Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 4.5V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| IC Mounting: Surface Mount |
| MCU Family: MPC5 |
| MCU Series: MPC56xx |
| Qualification: AEC-Q100 |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | SPC5674FF3MVV3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
