Description

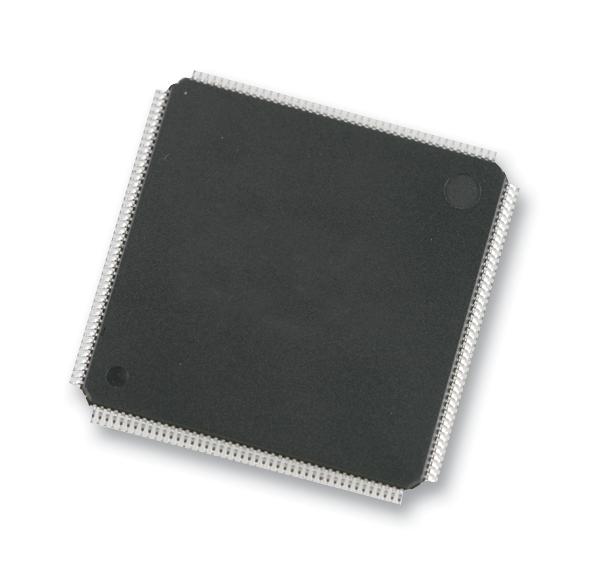

The SPC5644AF0MLU1 is a 32-bit Microcontroller based on e200z4 host processor core is built on power architecture technology and designed specifically for embedded applications. In addition to the power architecture technology, this core supports instructions for digital signal processing (DSP). The device has two levels of memory hierarchy consisting of 8kB of instruction cache, backed by 192kB on-chip SRAM and 4MB of internal flash memory. The device includes an external bus interface and also a calibration bus that is only accessible when using the vertical calibration system.
- 150MHz e200z4 Power Architecture core
- Variable length instruction encoding (VLE)
- Superscalar architecture with 2 execution units
- Up to 2 integer or floating point instructions per cycle
- Up to 4 multiply and accumulate operations per cycle
- 8KB Instruction cache (with line locking), configurable as 2- or 4-way
- 14 + 3 KB eTPU code and data RAM
- 5 x 4 crossbar switch (XBAR)
- 24 and 16 entry memory protection unit (MPU)
- Fail safe protection
- CRC unit with 3 sub-modules
- Junction temperature sensor
- Configurable interrupt controller (with NMI)
- 64-channel DMA
- eMIOS - 24 unified channels
- eTPU2 (second generation eTPU)
- 2 Enhanced queued analog-to-digital converters (eQADCs)
- On-chip CAN/SCI/FlexRay bootstrap loader with boot assist module (BAM)
- Nexus - class 3+ for the e200z4 core, class 1 for the eTPU
- JTAG (5-pin)
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: MPC5 Family MPC56xx Series Microcontrollers |
| Device Core: Power Architecture |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 150MHz |
| Program Memory Size: 4MB |
| No. of Pins: 176Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 84I/O's |
| Interfaces: CAN, SCI, SPI |
| RAM Memory Size: 192KB |
| ADC Channels: 40Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.14V |
| Supply Voltage Max: 1.32V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| IC Mounting: Surface Mount |
| MCU Family: MPC5 |
| MCU Series: MPC56xx |
| Qualification: AEC-Q100 |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | SPC5644AF0MLU1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
