Description
Product Overview

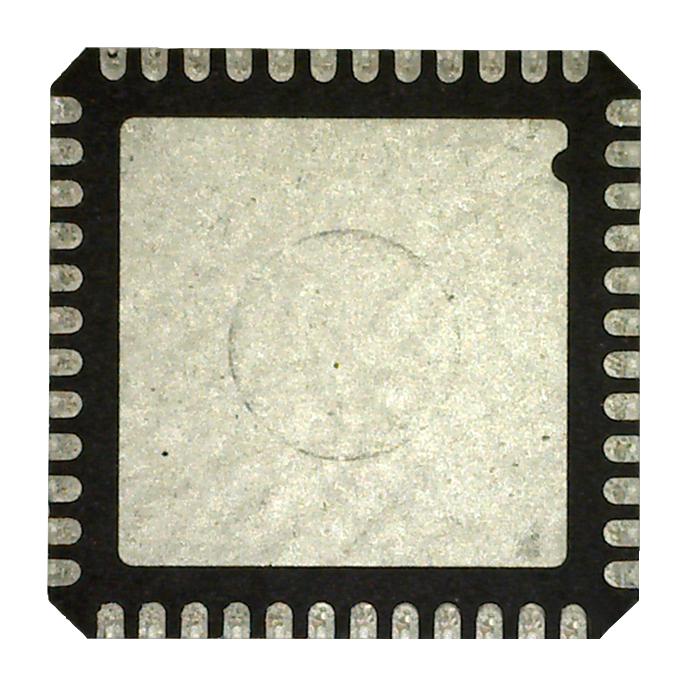

S9S12P64J0MFT is a S12 family, S12P series 16bit microcontroller. This is an optimized, 16bit microcontroller product line focused on low-cost, high-performance, and low pin-count. This family is intended to bridge between high-end 8-bit microcontroller and high-performance 16-bit microcontroller, such as the MC9S12XS-Family. The MC9S12P family is targeted at generic automotive applications requiring CAN or LIN/J2602 communication. Typical examples of these applications include body controllers, occupant detection, door modules, seat controllers, RKE receivers, smart actuators, lighting modules, and smart junction boxes.
- Supply voltage range from 3.13V to 5.5V
- Automotive qualified
- Features Frequency-modulated PLL, external oscillator and internal 1MHz RC oscillator
- 64KB flash, 4KB RAM and 4KB EEPROM with ECC
- 32MHz max operating frequency
- Supports 34 GPIO and one MSCAN
- Supports 1 serial communication interface (SCI) and 1 serial peripheral interface (SPI)
- Supports 8ch x 16-bit timer, 6ch x 8-bit PWM and 10ch x 12-bit ADC
- 48 pin HVQFN package
- Temperature range from -40 to 125°C
Product details
Other details
| Brand | NXP |
| Part Number | S9S12P64J0MFT |
| Quantity | Each |
| Technical Data Sheet EN |  |
