Description

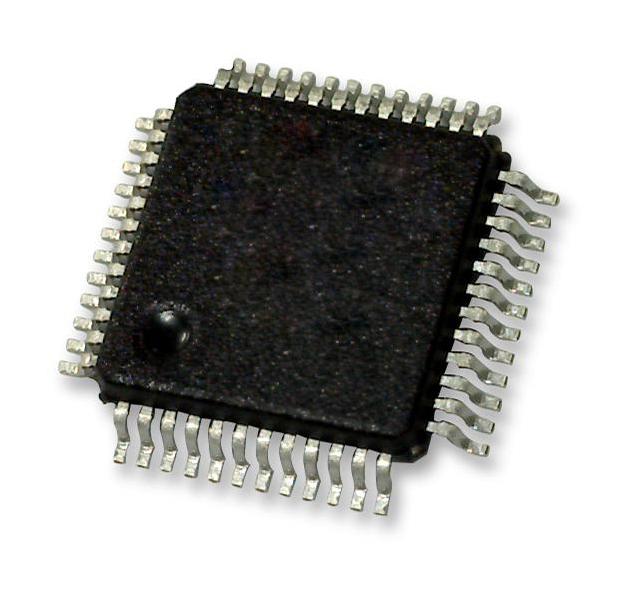

The S912ZVCA19F0MLF is a 16-bit Microcontroller based on S12Z CPU with CISC architecture operates at a maximum frequency of 32MHz. The device incorporates 192kB internal flash, 12kB internal RAM, 16-channel 12-bit A/D converter and 28 general-purpose I/O pins. The MC9S12ZVC-family is a new member of the S12 MagniV product line integrating a battery level (12V) voltage regulator, supply voltage monitoring, high voltage inputs and a CAN physical interface. It's primarily targeting at CAN nodes like sensors, switch panels or small actuators. It offers various low-power modes and wakeup management to address state of the art power consumption requirements. The MC9S12ZVC-Family is based on the enhanced performance, linear address space S12Z core and delivers an optimized solution with the integration of several key system components into a single device, optimizing system architecture and achieving significant space savings.
- Harvard architecture - parallel data and code access
- 3-Stage pipeline
- 32-bit Wide instruction and data bus
- 32-bit ALU
- 24-bit Addressing (16MB linear address space)
- Background debug controller (BDC)
- Real time interrupt (RTI)
- Computer operating properly (COP) watchdog
- System reset generation
- Low power operation
- Internal phase-locked loop (IPLL)
- 1MHz Internal RC oscillator with +/-1.3% accuracy
- Amplitude controlled Pierce oscillator using 4MHz to 20MHz crystal (XOSCLCP)
- 8-channel Timer module (TIM0), 4-channel timer module (TIM1)
- 16-bit Pulse width modulation module (PWM0 and PWM1)
- Inter-IC module (IIC) - multimaster operation
- CAN physical layer (CANPHY)
- Multi-scalable controller area network (MSCAN)
- SENT transmitter (SENT
- TX)
- Serial communication Interface module (SCI) - full duplex or single-wire operation
Applications
Communications & Networking, HVAC, Lighting, Sensing & Instrumentation, Automotive
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: S12 Magni V Family S12ZVC Series Microcontrollers |
| Device Core: S912Z |
| Data Bus Width: 16 bit |
| Operating Frequency Max: 32MHz |
| Program Memory Size: 192KB |
| No. of Pins: 48Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 28I/O's |
| Interfaces: CAN, I2C, SCI, SPI |
| RAM Memory Size: 12KB |
| ADC Channels: 10Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 5.5V |
| Supply Voltage Max: 18V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| IC Mounting: Surface Mount |
| MCU Series: S12ZVC |
| MCU Family: S12 Magni V |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | S912ZVCA19F0MLF |
| Quantity | Each |
| Technical Data Sheet EN |  |
