Description
Product Overview

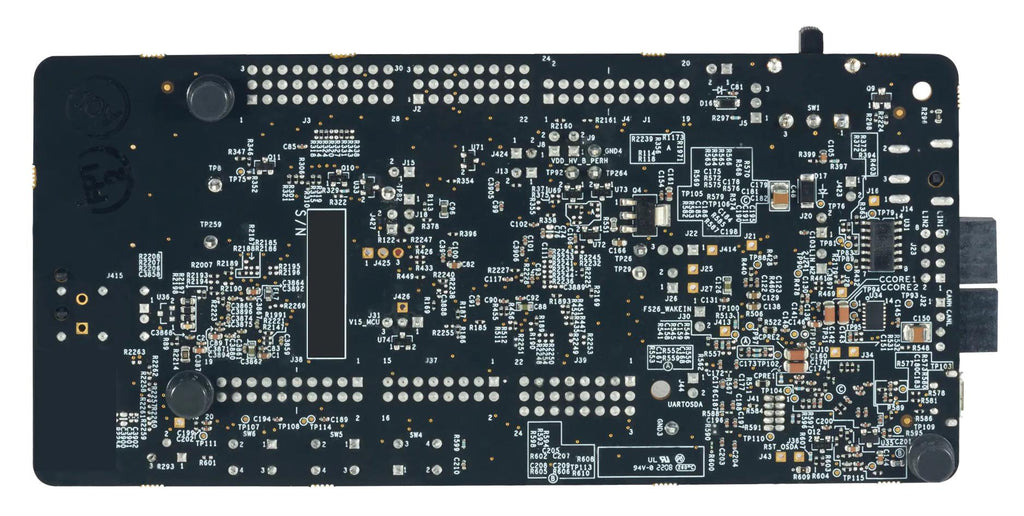

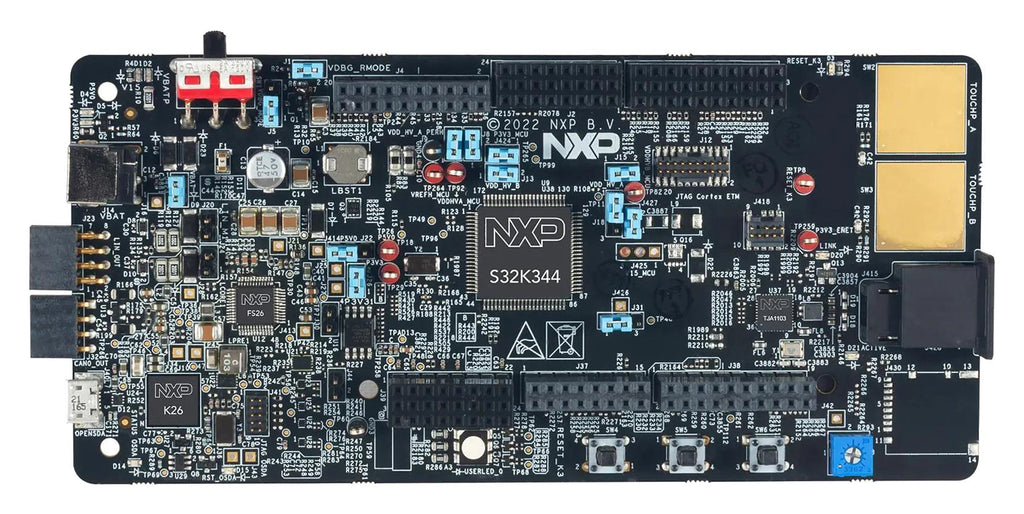

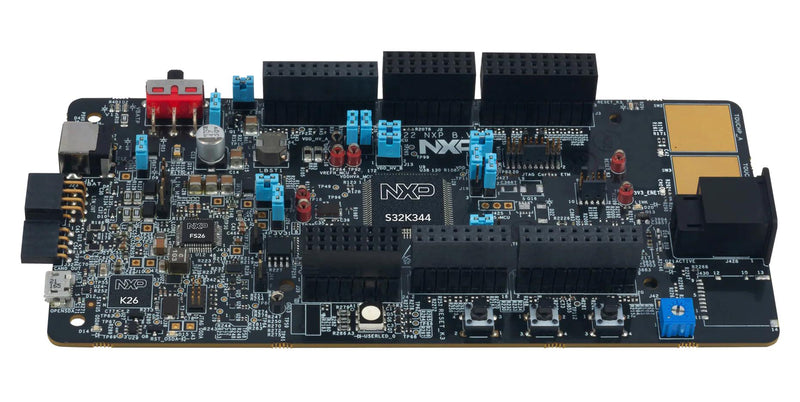

S32K3X4EVB-T172 is an evaluation and development board for general-purpose industrial and automotive applications. Based on the 32-bit Arm® Cortex®-M7 S32K3 MCU in a 172 MaxQFP package, the S32K3X4EVB-T172 offers dual cores configured in lockstep mode, ASIL D safety hardware, HSE security engine, OTA support, advanced connectivity and low power. The S32K3X4EVB-T172 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.
- S32K3 microcontroller, Kinetis® K26-180MHz, dual high-speed & full-speed USBs, 2MB flash MCUs
- FS26 safety system basis chip with low power fit for ASIL D
- TJA1022 dual LIN 2.2A/SAE J2602 transceiver
- TJA1153 secure HS-CAN transceiver with sleep mode
- TJA1103 ASIL B compliant 100BASE-T1 Ethernet PHY
- Arduino UNO pint-out compatible with expansion �shield� support
- Power supply switch, RGB LED, 2x user push-buttons, ADC rotary potentiometer, 2x touch pad electrode
- On-board S32K3 debug interface, 20-Pin Cortex debug + ETM connector
- 10-pin JTAG connector for S32K3 debug interface and TJA1103 Ethernet PHY interface
- On-board HS-CAN, 2x LIN, Ethernet 100BASE-T1 physical layer, micro USB debug interface with COM port
Product details
Other details
| Brand | NXP |
| Part Number | S32K3X4EVB-T172 |
| Quantity | Each |
| Technical Data Sheet EN |  |
