Product Overview

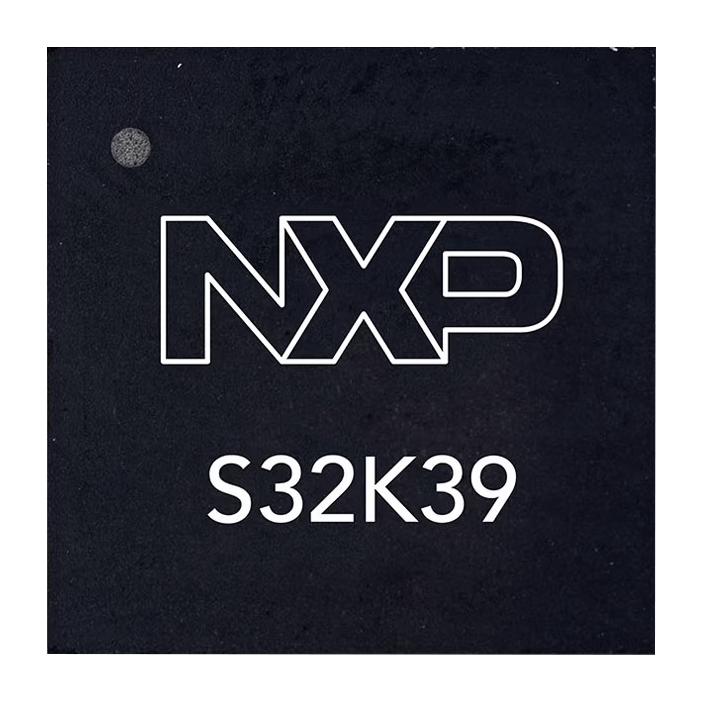

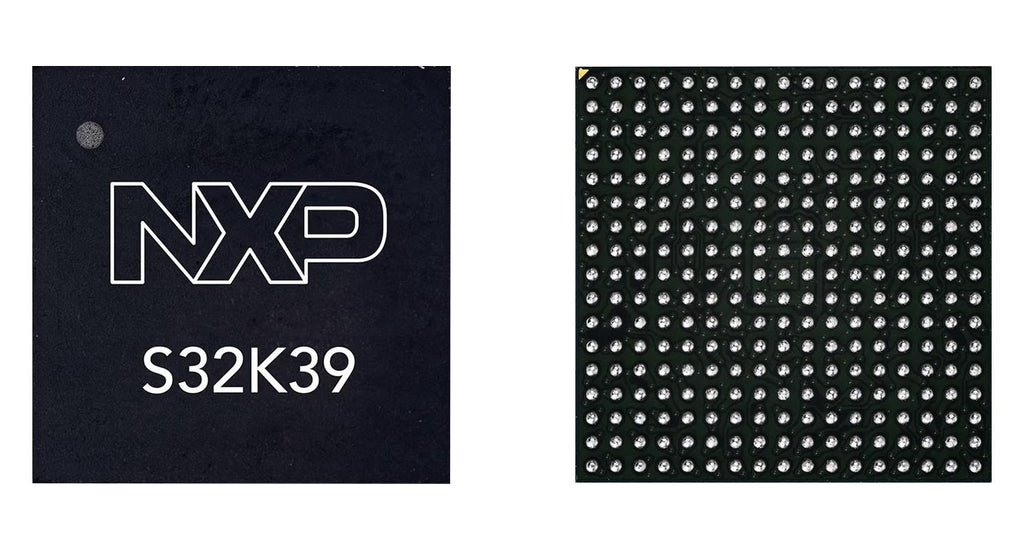

S32K396EHT1MKUST is an automotive general-purpose microcontroller. This microcontroller, based on the Arm® Cortex®-M series core, offers scalability, high-performance and low-power consumption tailored for applications in body, zone control, and electrification. S32K MCUs provide functional safety and embedded security compliant to ASIL B/D levels, adaptable to both AUTOSAR® and non-AUTOSAR applications. S32K MCUs are supported by a minimum of 15 years of product longevity and a comprehensive, third-party software and tools ecosystem.
- Automotive 32 bit MCU/MPU, general purpose MCU
- 1x M7 LS core + 2x M7 split-lock cores + DSP + dual eTPU (core platform)
- 6M P-flash, 100Mbps ethernet MAC
- Three Arm® Cortex®-M7 cores CPU core, one lockstep core pair and Two split-lock configurable cores
- 320MHz core frequency, 6Mb program flash memory
- 128Kb data flash memory, 800 (including 64Kb standby RAM and 288Kb TCM) total RAM
- 64Kb standby RAM, HSE-B security, 6 FlexCAN instances
- Zipwire instances, QuadSPI instances, (6) LPSPI instances, (2) I²C instances
- Access control, memory protection, and peripheral isolation
- Ambient temperature range from -40°C to 125°C, 176-pins LQPF package
Product details
Other details
| Brand | NXP |
| Part Number | S32K396EHT1MKUST |
| Quantity | Each |
| Technical Data Sheet EN |  |
