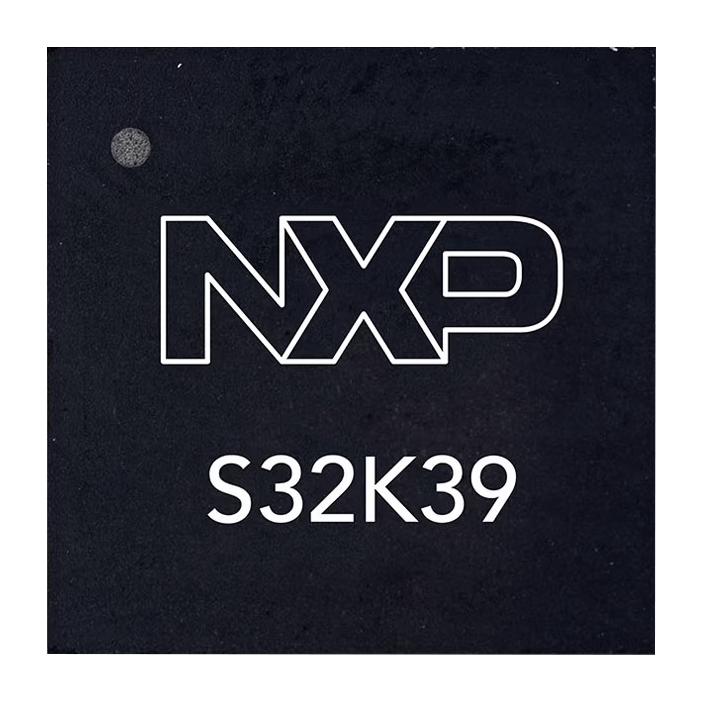

NXP S32K396EHT1MJBST ARM MCU, S32K3 Family S32K396 Series Microcontrollers, ARM Cortex-M7F, 32 bit, 320 MHz, 6 MB

S32K396EHT1MJBST is a automotive 32 bit MCU/MPU. It is a purpose-built device addressing the new electric vehicle (EV) needs with a compelling combination of performance, integration, networking, security and functional safety capabilities. S32K39-36 has enough compute power to support up to one six-phase or two three-phase motors controlled by over 200KHz control loops, while hosting AI/ML algorithms or other monitoring applications. It supports remote smart actuation applications using Time-Sensitive Networking (TSN) Ethernet for new zonal vehicle architectures. It also reduces system cost with ASIL D software resolver and analogue integration.

• 4-core, Arm Cortex-M7 core, 320MHz max operating frequency
• 6000Kb flash, 800Kb RAM, 2 x I²C, 4 x UART, 6 x SPI serial communication
• 209 GPIOs, 6 CAN FD, 4 LIN, 10M ethernet type
• Supply voltage range from 2.7 to 5.5V, AEC-Q100 grade 1 qualified
• Watchdog timers with an independent clock source, voltage monitors
• External clock source monitoring using an independent reference
• PLL lock and loss-of-lock protection, XRDC, bandgap voltage available as ADC input
• Low-power oscillator such as the 32KHz SIRC, PMC with LVD and selectable trip points
• Support for an external ballast transistor to generate core supply

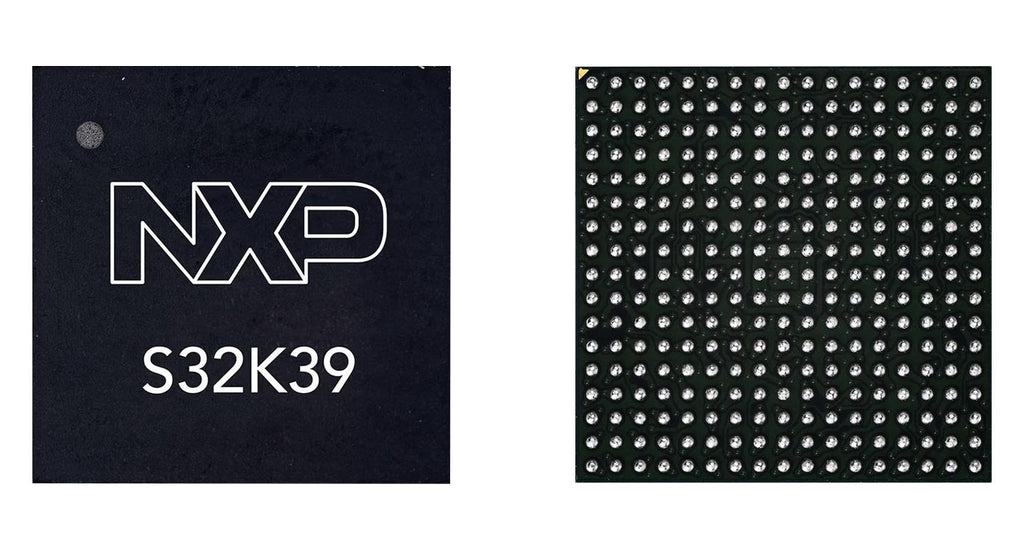

• Operating temperature range from -40°C to 125°C, 289-pin LFBGA package
