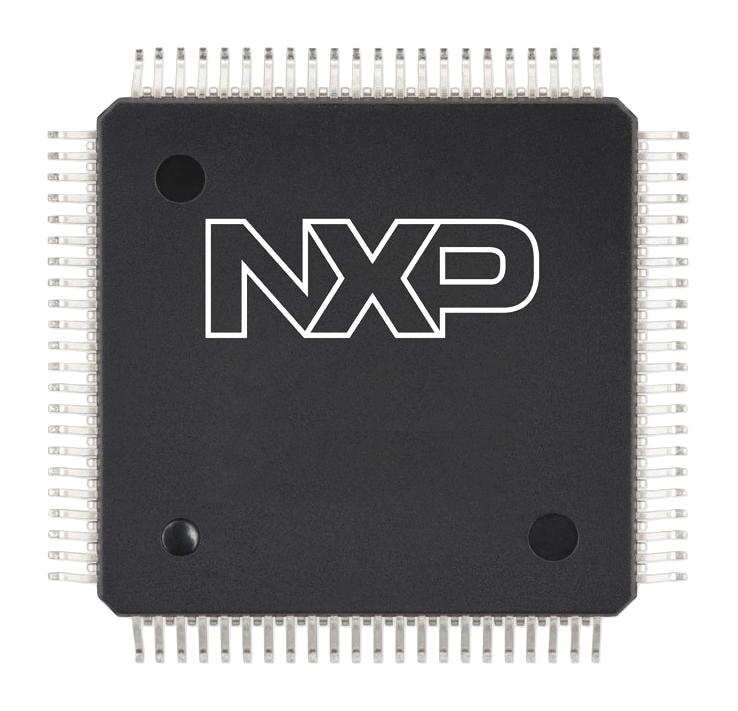

NXP S32K344EHT1MPBST ARM MCU, S32K3 Family S32K344 Series Microcontrollers, ARM Cortex-M7F, 32 bit, 160 MHz, 4 MB

S32K344EHT1MPBST is a 32bit microcontroller (MCU) that offers Arm® Cortex®-M7-based MCUs in single, dual and lockstep core configurations. S32K3 family offers scalability in a number of cores, memory and peripherals, ensuring high-performance and functional safety compliant with ISO 26262 up to ASIL D. It provides a comprehensive end-to-end solution for development and production. S32K3 MCUs feature a hardware security engine (HSE) with NXP firmware, enable firmware over-the-air (FOTA) updates, and include ISO 26262 compliant real-time drivers (RTD) suitable for both AUTOSAR® and non-AUTOSAR applications. Through compatibility with the NXP S32 Automotive Platform, it enables seamless software reuse and flexibility across applications in body, zone control and electrification. It is well suited to a wide range of applications in electrical harsh environments and is optimized for cost-sensitive applications offering new, space saving package options.

• 2-core, Arm Cortex-M7 core, 160MHz max operating frequency
• 4000Kb flash, 512Kb RAM, 16 x UART, 2 x I²C,6 x SPI serial communication
• 2 I²S, 142 GPIO, 6 CAN FD, 16 LIN, 100M ethernet type, AEC-Q100 grade 1 qualified
• Supply voltage range from 2.7 to 5.5V, integrated digital signal processor (DSP)
• Configurable nested vectored interrupt controller (NVIC), single precision floating point unit (FPU)
• Error-correcting code (ECC) on all memories, error detection code (EDC) on data path
• Cyclic redundancy check (CRC) module, 120bit unique identification (ID) number
• 32bit Real Time Counter (RTC) with autonomous periodic interrupt (API) function
• Full cross triggering support for ADC / timer (BCTU)
• Operating temperature range from -40°C to 125°C, 172-pin HDQFP package
