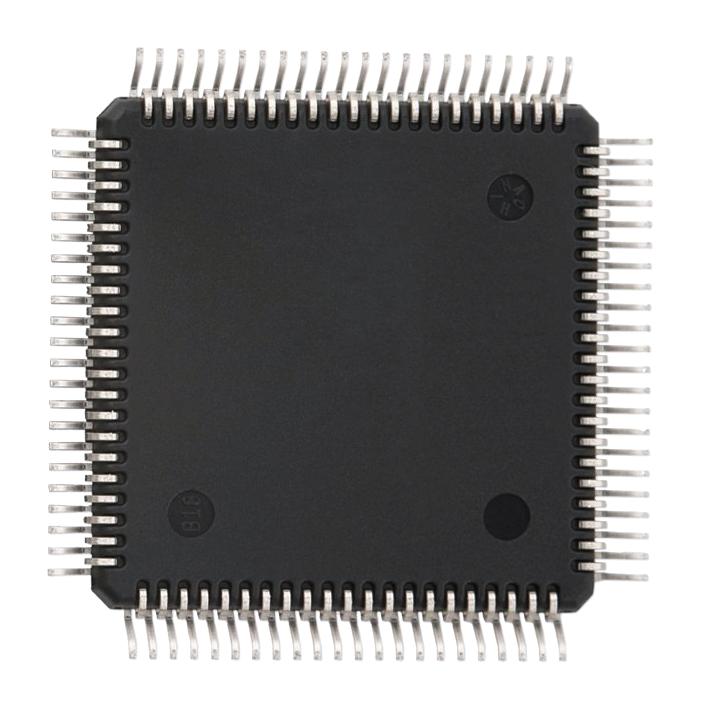

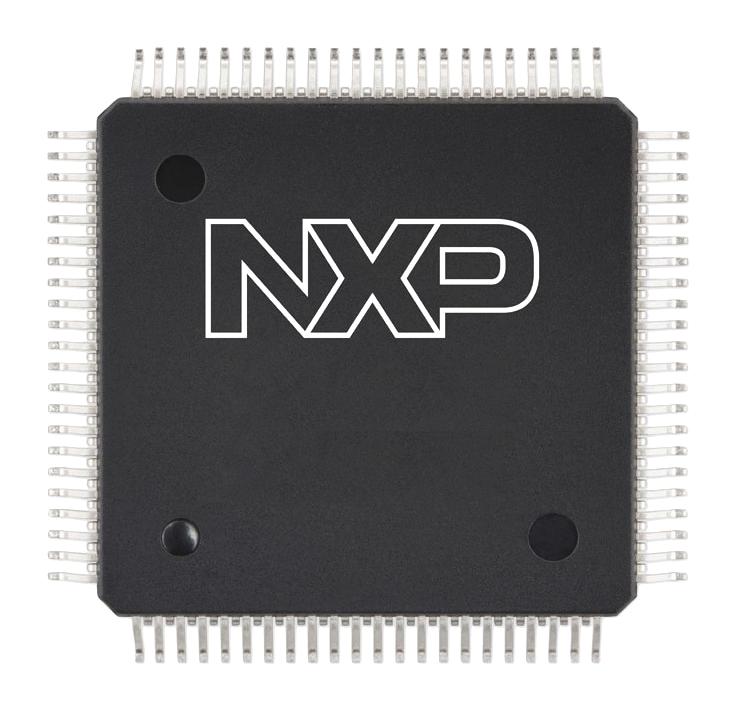

S32K341EHT0MPAST is a microcontroller for automotive general purpose. It features hardware security engine (HSE) with NXP firmware, support for firmware over-the-air (FOTA) updates and free ISO 26262 compliant Real-Time Drivers (RTD) for AUTOSAR® and non-AUTOSAR. This product series further extends the highly-scalable portfolio of Arm ® Cortex ® - M0+/M4F S32K1xx chips in the automotive industry with the Arm Cortex-M7 core at higher frequency, more memory, ASIL-B and D rating and advanced security module. With a focus on automotive environment robustness, the S32K3xx product series devices are well suited to a wide range of applications in electrical harsh environments, and are optimized for cost-sensitive applications offering new, space saving package options. Devices in this series share common peripherals and pin-out, allowing developers to migrate easily within a chip series or among other chip series to take advantage of more memory or feature integration.
- Integrated digital signal processor (DSP), configurable nested vectored interrupt controller (NVIC)
- 8 - 40MHz fast external oscillator (FXOSC), 48MHz fast internal RC oscillator (FIRC)
- Data and instruction cache for each core to minimize performance impact of memory access latencies
- Up to three 12bit ADC with up to 24 channel analogue inputs per module
- Up to 235 GPIO pins, non-maskable interrupt (NMI), human-machine interface (HMI)
- Power management controller (PMC) with simplified mode management (RUN and STANDBY)
- Up to 16 serial communication interface (LPUART) modules, with LIN, UART and DMA support
- Error-correcting code (ECC) on all memories, error detection code (EDC) on data path
- Debug watchpoint and trace (DWT), with four configurable comparators as hardware watchpoints
- 32-bit real time counter (RTC) with autonomous periodic interrupt (API) function
Product details
| Product Range:
S32K3 Family S32K341 Series Microcontrollers
|
| Device Core:
ARM Cortex-M7F
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
160MHz
|
| Program Memory Size:
1MB
|
| No. of Pins:
100Pins
|
| IC Case / Package:
MaxQFP
|
| No. of I/O's:
-
|
| Interfaces:
CAN, Ethernet, I2C, I2S, LIN, UART, PWM, SAI, SENT, SPI, UART
|
| RAM Memory Size:
256KB
|
| ADC Channels:
48Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
2.97V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
S32K3
|
| MCU Series:
S32K341 Series
|
| Qualification:
AEC-Q100
|
Other details
| Brand |
NXP |
| Part Number |
S32K341EHT0MPAST |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
