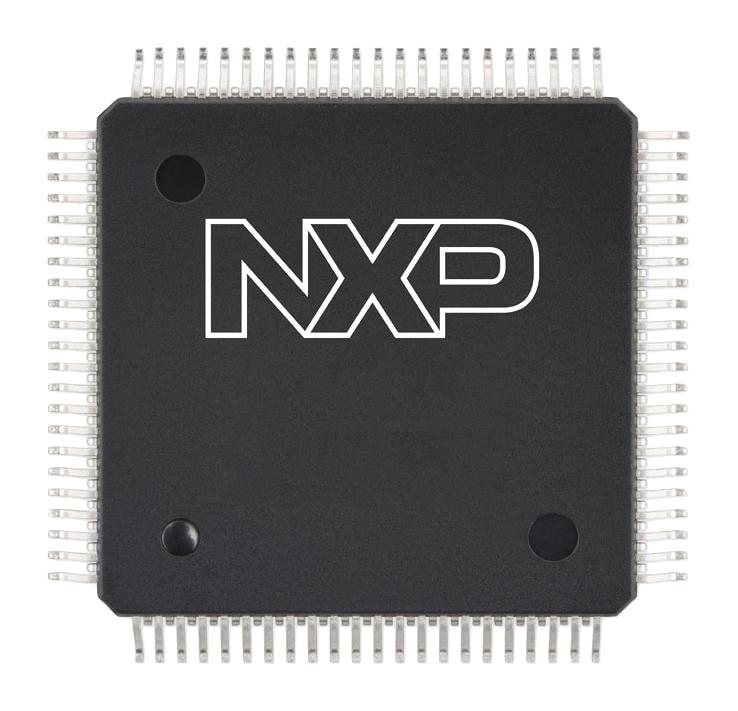

NXP S32K324EHT1MPBST ARM MCU, S32K3 Family S32K324 Series Microcontrollers, ARM Cortex-M7F, 32 bit, 160 MHz, 4 MB

S32K324EHT1MPBST is a 32bit microcontroller (MCU) that offers Arm® Cortex®-M7-based MCUs in single, dual and lockstep core configurations. S32K3 family offers scalability in a number of cores, memory and peripherals, ensuring high-performance and functional safety compliant with ISO 26262 up to ASIL D. It provides a comprehensive end-to-end solution for development and production. S32K3 MCUs feature a hardware security engine (HSE) with NXP firmware, enable firmware over-the-air (FOTA) updates, and include ISO 26262 compliant real-time drivers (RTD) suitable for both AUTOSAR® and non-AUTOSAR applications. Through compatibility with the NXP S32 Automotive Platform, it enables seamless software reuse and flexibility across applications in body, zone control and electrification. It is well suited to a wide range of applications in electrical harsh environments and is optimized for cost-sensitive applications offering new, space saving package options.

• Automotive 32bit MCU/MPU, 2 x M7 cores, 4Mb P-flash
• 100Mbps ethernet MAC, voltage range from 2.97V to 5.5V
• Arm Core based on the Armv7 and Thumb®-2 ISA, integrated digital signal processor (DSP)
• 32KHz slow external oscillator (SXOSC), system phased lock loop (SPLL)
• Low-power Arm Cortex-M7 core with excellent energy efficiency, balanced with performance
• FlexIO module for flexible and high performance serial interfaces
• Debug watchpoint and trace (DWT), with four configurable comparators as hardware watchpoints
• Error detection code (EDC) on data path, cyclic redundancy check (CRC) module
• 32bit real time counter (RTC) with autonomous periodic interrupt (API) function
• Operating temperature range from -40°C to 125°C, 172-pin HDQFP package
