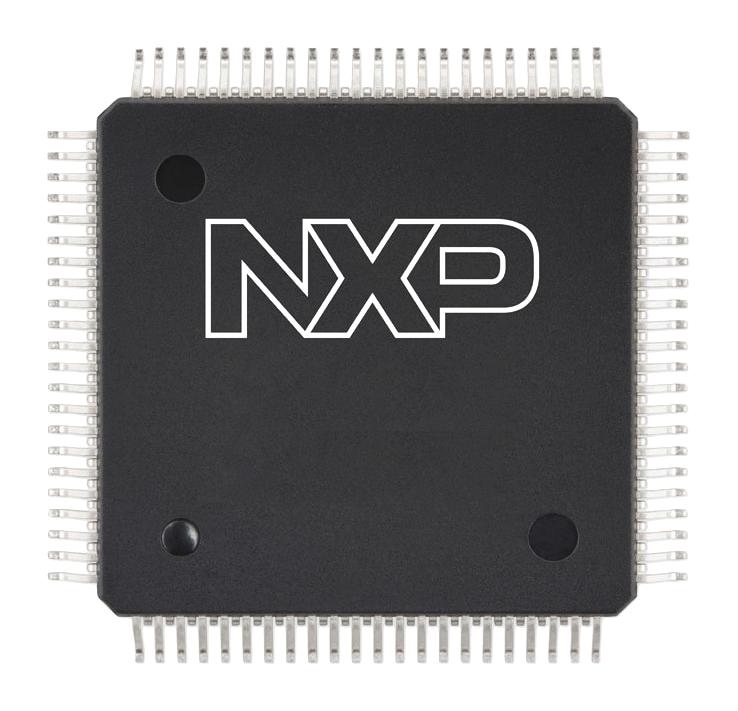

NXP S32K322NHT0VPBST ARM MCU, S32K3 Family S32K322 Series Microcontrollers, ARM Cortex-M7, 32 bit, 160 MHz, 2 MB

S32K322NHT0VPBST is S32K3xx product series microcontroller which further extends the highly-scalable portfolio of Arm ® Cortex ® - M0+/M4F S32K1xx chips in the automotive industry with the Arm Cortex-M7 core at higher frequency, more memory, ASIL-B and D rating and advanced security module. With a focus on automotive environment robustness, the S32K3xx product series devices are well suited to a wide range of applications in electrical harsh environments, and are optimized for cost-sensitive applications offering new, space saving package options. The S32K3xx series offers a broad range of memory, peripherals and performance options. Devices in this series share common peripherals and pin-out, allowing developers to migrate easily within a chip series or among other chip series to take advantage of more memory or feature integration.

• Automotive 32bit MCU/MPU
• 2 x M7 cores platform, 2MB memory size, no Ethernet MAC, HSE B standard security
• M7 supports up to 320MHz frequency with 2.14DMIPS / MHz, voltage range from 2.97V to 5.5V
• Arm Core based on the Armv7 and Thumb®-2 ISA, integrated digital signal processor (DSP)
• Configurable nested vectored interrupt controller (NVIC)
• Single precision floating point unit (FPU)
• Up to 32-channel DMA with up to 128 request sources using DMAMUX
• Up to two internal software watchdog timers (SWT), error-correcting code (ECC) on all memories
• 172 pin HDQFP package, Temperature range from -40°C to 105°C
