| ₹ 32575.23 includes GST and import duties. | |
| B2B customers can avail ₹ 4967.72 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

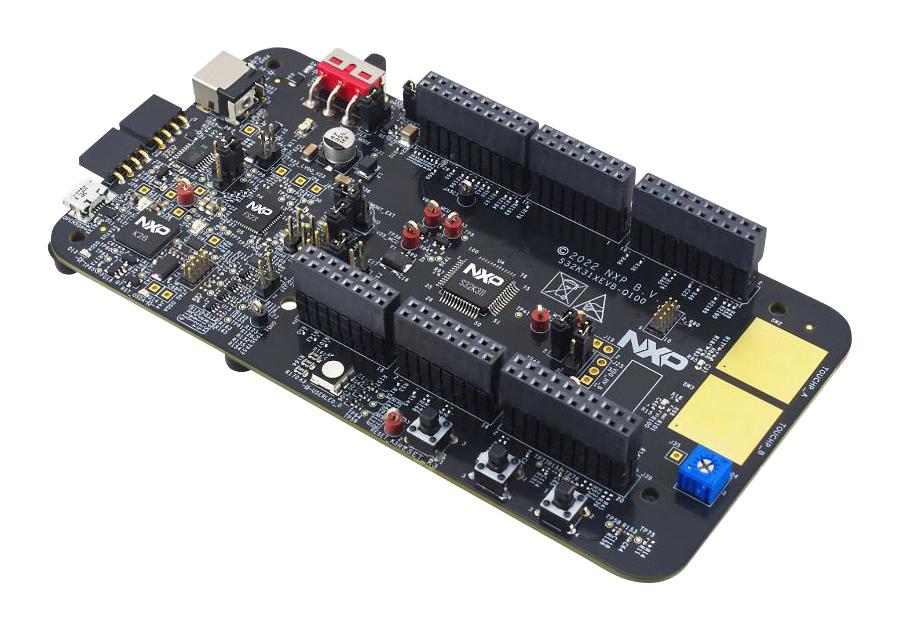

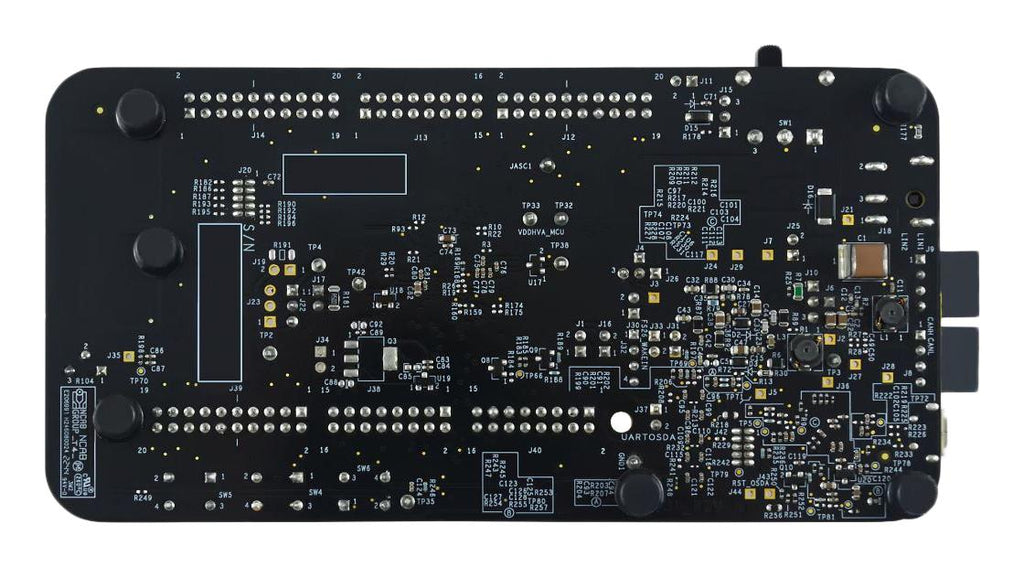

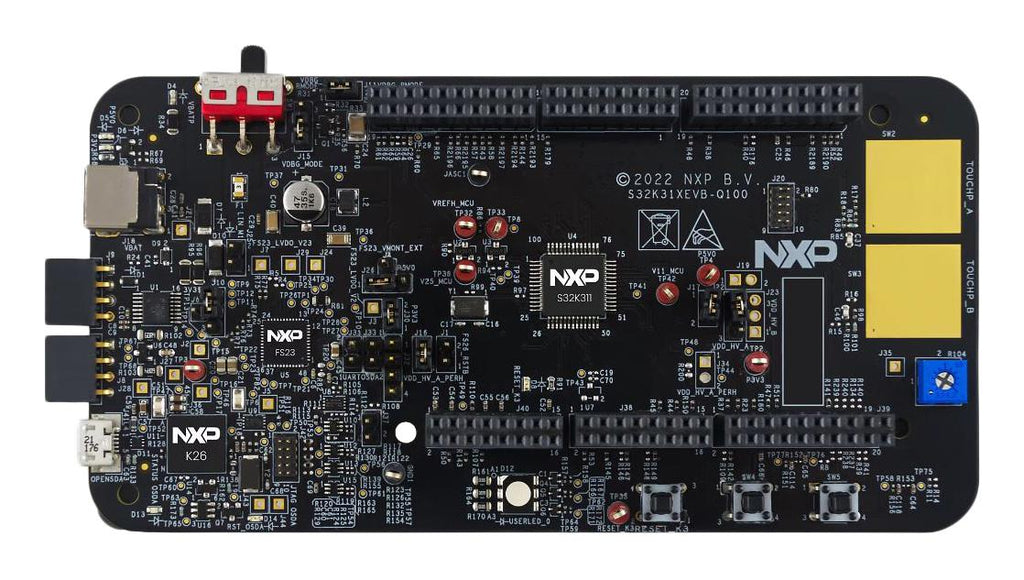

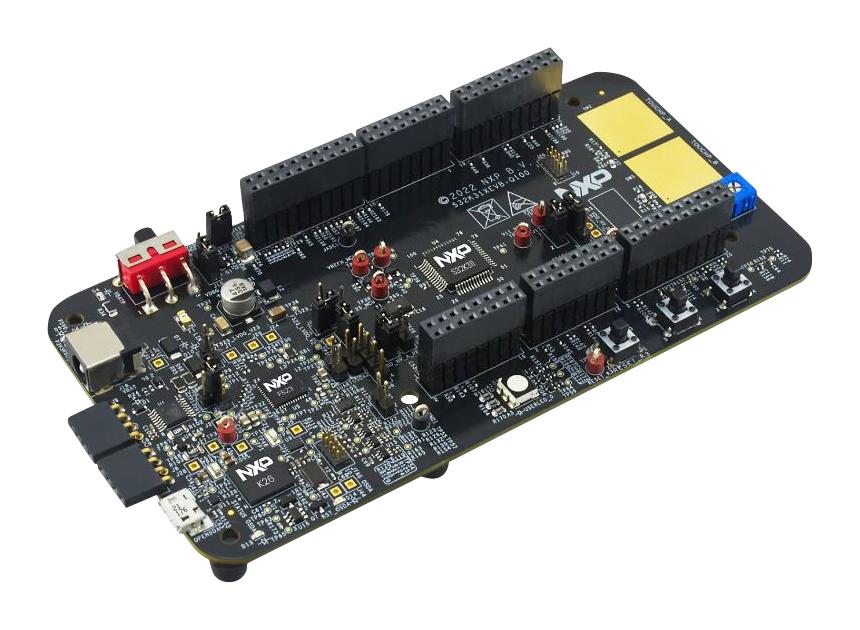

S32K31XEVB-Q100 is an evaluation and development board for general-purpose industrial and automotive applications. Based on the 32-bit Arm®Cortex®-M7 S32K3 MCU in a 100 HDQFP package, the S32K31XEVB-Q100 offers a single core mode, HSE security engine, OTA support, advanced connectivity and low power. The S32K31XEVB-Q100 offers a standard-based form factor compatible with the Arduino® pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration. Suitable for automotive zone controller, Battery Management System (BMS) and electric pumps applications.
- Power supply switch
- MCU voltage/current measurement
- User RGB LED
- 2x user push-buttons
- ADC rotary potentiometer
- 2x touch pad electrode
- Arduino pinout compatible with expansion �shield� support
- On-board CAN-FD, on-board LIN and SWD/JTAG debug interface for S32K3 debugger interfaces
- Free-of-charge real-time drivers for AUTOSAR® and non-AUTOSAR use and ASIL D compliant
- Configuration tools for both AUTOSAR and non-AUTOSAR users
Product details
Other details
| Brand | NXP |
| Part Number | S32K31XEVB-Q100 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 31923.73 |
| 3-5 | ₹ 31597.97 |
| 5-10 | ₹ 30946.47 |
| 10+ | ₹ 30294.96 |
Bulk discount will be automatically applied during checkout based on quantity.
