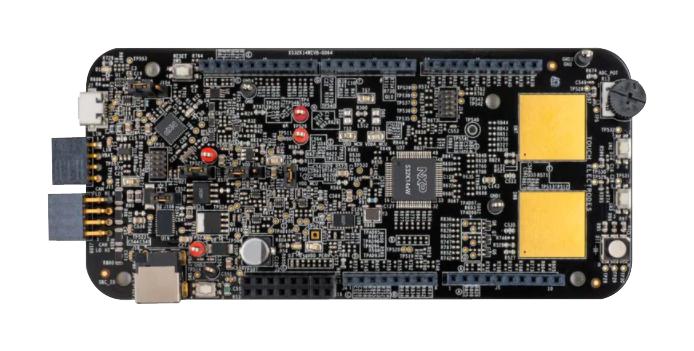

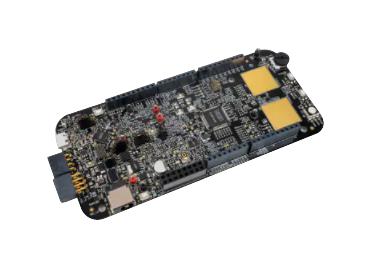

S32K14WEVB-Q064 is an evaluation and development board for general-purpose automotive applications with higher demands for ambient operating temperature range. Based on the 32-bit Arm® Cortex®-M4F S32K144W AEC-Q100 Grade 0 qualified (-40° C to +150° C Ta), the S32K14WEVB-Q064 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.
- UJA1169TK: mini high-speed CAN system basis chip
- TJA1027: LIN 2.2A/SAE J2602 transceiver, TJA1145ATK: high speed CAN transceiver
- OpenSDA: serial and debug adapter with support for several industry-standard debug interfaces
- Easy access to the MCU I/O header pins for prototyping
- Arduino® UNO pint-out compatible with expansion "shield" support
- On-board connectivity for CAN, LIN, UART/SCI interface
- Flexible power supply options: micro USB or external 12 V supply
- 2 x touchpads, 1 x potentiometer, 1 x RGB LED, 2 x push buttons
Product details
| Silicon Manufacturer |
NXP |
| No. of Bits |
32bit |
| Silicon Family Name |
S32K1 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M4F |
| Silicon Core Number |
S32K144W |
| Kit Contents |
Eval Board S32K144W |
| Product Range |
- |
Other details
| Brand |
NXP |
| Part Number |
S32K14WEVB-Q064 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
