Description
Product Overview

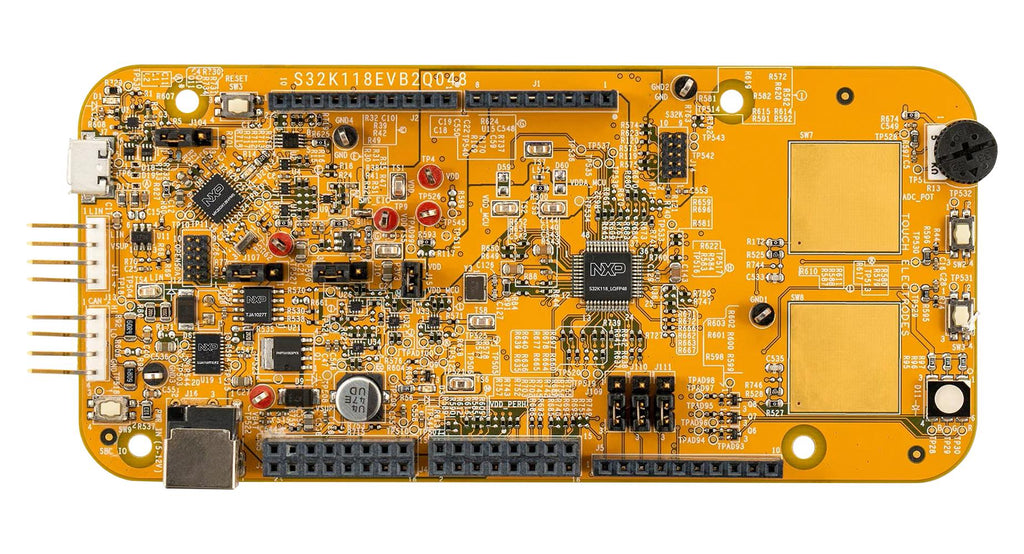

S32K116EVB2Q048 is a S32K116-Q048 low-cost evaluation and development board for general-purpose industrial and automotive applications. Based on the 32-bit Arm® Cortex®-M0+ S32K11x MCU, both S32K116EVB2Q048 and S32K116EVB-Q048 offer a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options.
- OpenSDA: serial and debug adapter with support for several industry-standard debug interfaces
- Small form factor size 4.5� x 2.3�
- Arduino® UNO pint-out compatible with expansion �shield� support
- On-board connectivity for CAN, LIN, UART/SCI interface
- Flexible power supply options: micro USB or external 12V supply
- 2 x touchpads, 1 x potentiometer for precise voltage and analogue measurement
- 1 x RGB LED, 2 x push buttons
Product details
Other details
| Brand | NXP |
| Part Number | S32K116EVB2Q048 |
| Quantity | Each |
| Technical Data Sheet EN |  |
