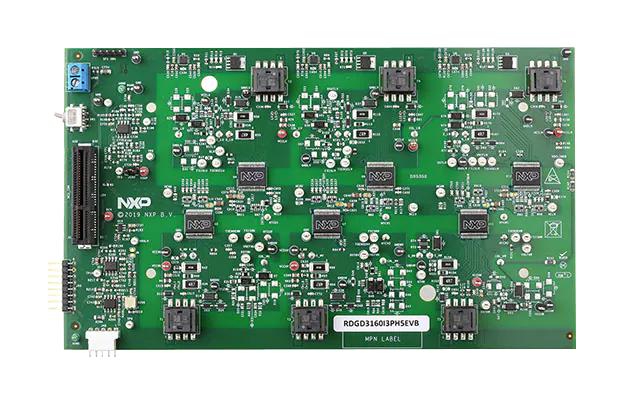

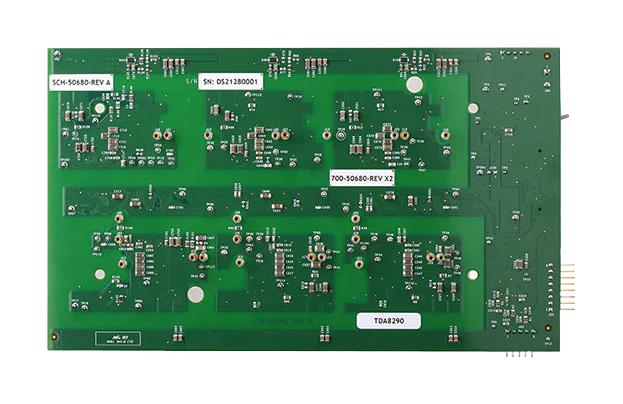

NXP RDGD3160I3PH5EVB Evaluation Board GD3160 IGBT/SiC Gate Driver 3-Phase EV Motor Control

Three-phase inverter reference design and evaluation board populated with six GD3160 gate drivers for IGBT/SiC MOSFET devices. This board supports SPI daisy chain communication for programming and communication with three high-side gate drivers and three low-side gate drivers independently and comes with fault management and supporting circuitry. Evaluation kit is designed to connect to a compatible HybridPACK� Drive SIC/IGBT module or onsemi VE-trac� IGBT module for full three phase inverter applications development.

• 3 phase reference design for HP drive featuring GD3160
• GD3160 advanced single channel gate driver for IGBT and SiC MOSFETs
• Integrated galvanic signal isolation (up to 8KV)
• SPI interface for safety monitoring, configuration and diagnostic reporting
• Fail-safe state management from LV and HV domain for user-selectable safe state
• Configurable desaturation and current sense optimized for protecting SiC and IGBTs
• Integrated ADC for monitoring parameters from HV domain
• Certified compliant with ISO 26262, supporting ASIL D level functional safety

Contents

Three-phase inverter reference design and evaluation board, Quick start guide.

Other details

Brand	NXP
Part Number	RDGD3160I3PH5EVB
Quantity	Each
User Manual EN
