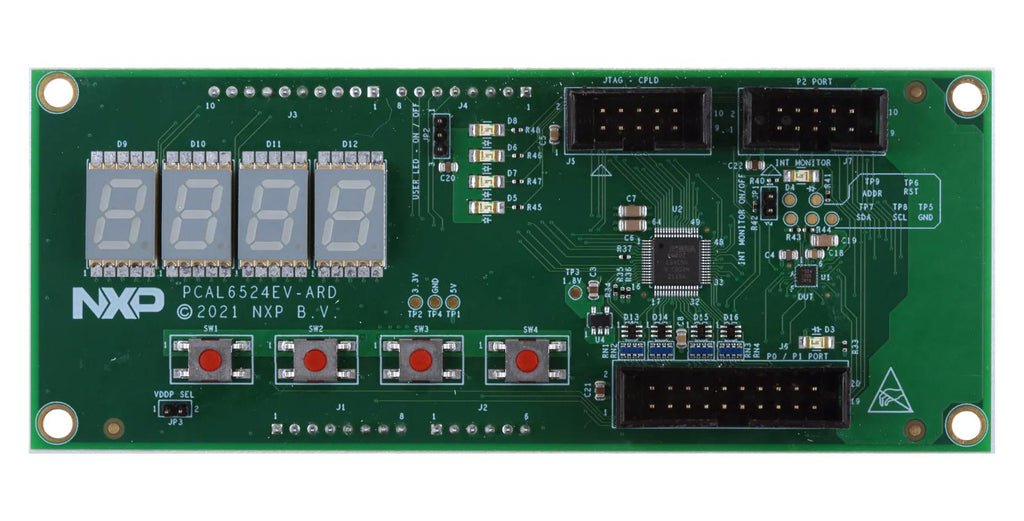

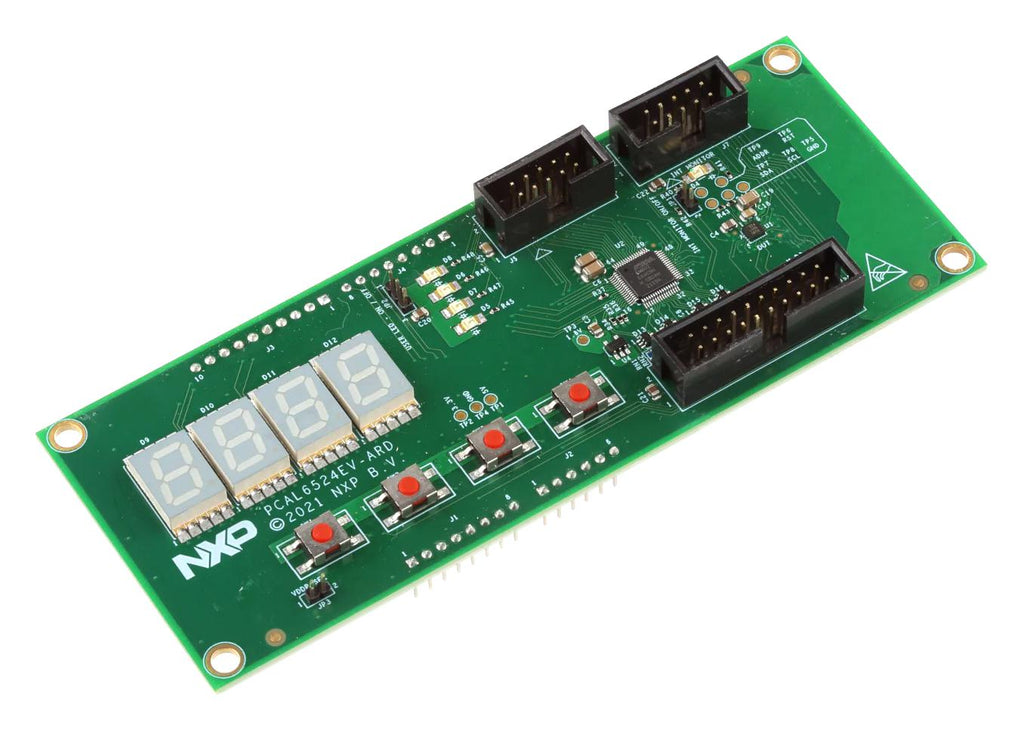

PCAL6524EV-ARD evaluation board is a daughter card equipped with Arduino port, designated for easy test and design of PCAL6524 IC, 24-bit port expander, controlled through FM+ I2C 2-wire bus, with RESET. The board is fully compliant with IMXRT1050 EVK, LPCXpresso55S69 (LPC55S69- EVK) and i.MX 8M Mini LPDDR4 EVK (8MMINILPD4-EVK, 8MMINID4-EVK), including GUI software control. The board can be attached to any device equipped with Arduino port.
- Support 24-bit GPIO
- Open-drain active low interrupt output (INT)
- Latched outputs with 25mA drive maximum capability for directly driving LEDs
- Agile I/O with o/p drive strength, input latch, pull-up/pull-down enable/selection & interrupt mask
- Supply voltage: VDD (p) 1.65V to 5.5V, VDD (I2C-bus) 0.8V to 3.6V
- Low standby current (2.0uA/3.0uA)
- 1MHz fast-mode plus I2C-bus
- RESET pin
Contents
Assembled and tested evaluation board in an antistatic bag, Quick start guide.
Product details
| Silicon Manufacturer |
NXP |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
PCAL6524 |
| Silicon Family Name |
- |
| For Use With |
Arduino Board |
| Kit Contents |
Evaluation Board PCAL6524, Anti-Static Bag, Quick Start Guide |
| Product Range |
- |
Other details
| Brand |
NXP |
| Part Number |
PCAL6524EV-ARD |
| Quantity |
Each |
| User Manual EN |
 |
