The PCA9635PW is a 16-bit Fm+ I²C-bus LED Driver optimized for red/green/blue/amber (RGBA) colour mixing applications. Each LED output has its own 8-bit resolution (256 steps) fixed frequency individual PWM controller that operates at 97kHz with a duty cycle that is adjustable from 0 to 99.6% to allow the LED to be set to a specific brightness value. An additional 8-bit resolution (256 steps) Group PWM controller has both a fixed frequency of 190Hz and an adjustable frequency between 24Hz to once every 10.73seconds with a duty cycle that is adjustable from 0 to 99.6% that is used to either dim or blink all LEDs with the same value.
- Software reset feature (SWRST call) allows the device to be reset through the I²C-bus
- Internal power-on reset
- Noise filter on SDA/SCL inputs
- No glitch on power-up
- Supports hot insertion
- Low standby current
- Latch-up testing is done to JEDEC standard JESD78 which exceeds 100mA
Applications
LED Lighting, Imaging, Video & Vision, Portable Devices
Warnings ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
- |
| Input Voltage Min |
2.3V |
| Input Voltage Max |
5.5V |
| Output Voltage Max |
5.5V |
| Output Current Max |
25mA |
| Switching Frequency |
1MHz |
| No. of Outputs |
16Outputs |
| IC Mounting |
Surface Mount |
| Driver Case Style |
TSSOP |
| No. of Pins |
28Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
NXP |
| Part Number |
PCA9635PW,118 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| CAD CadSoft_EAGLE EN |
|
| Product Change Notice EN |
|
| Application Note EN |
|

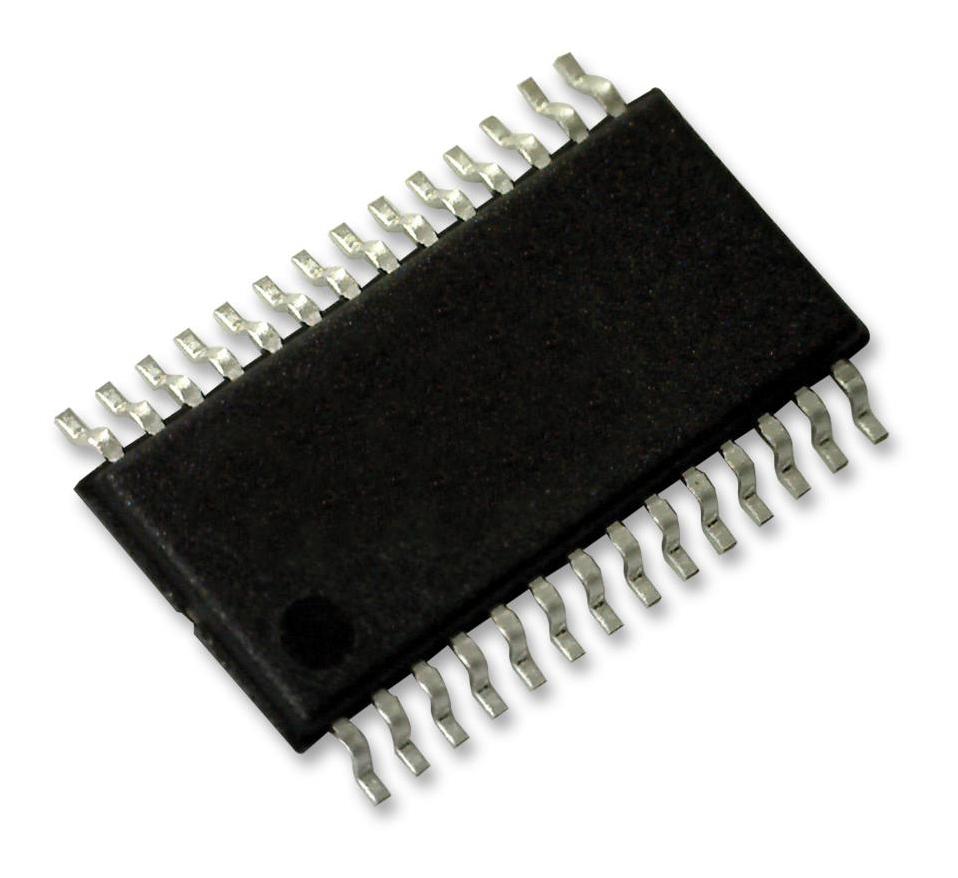

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
