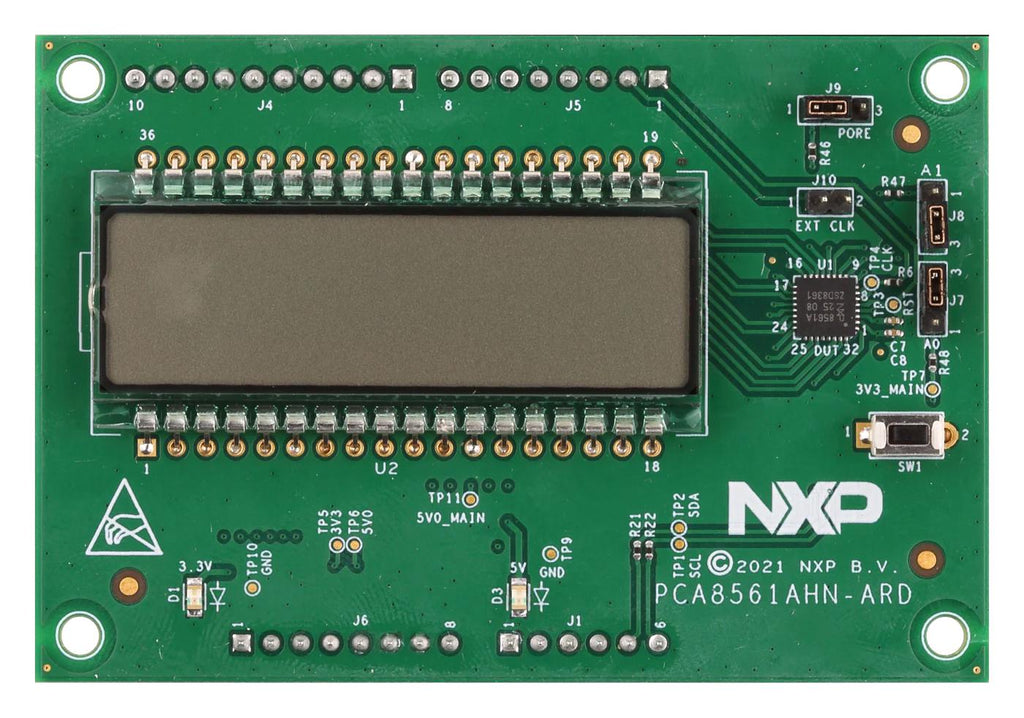

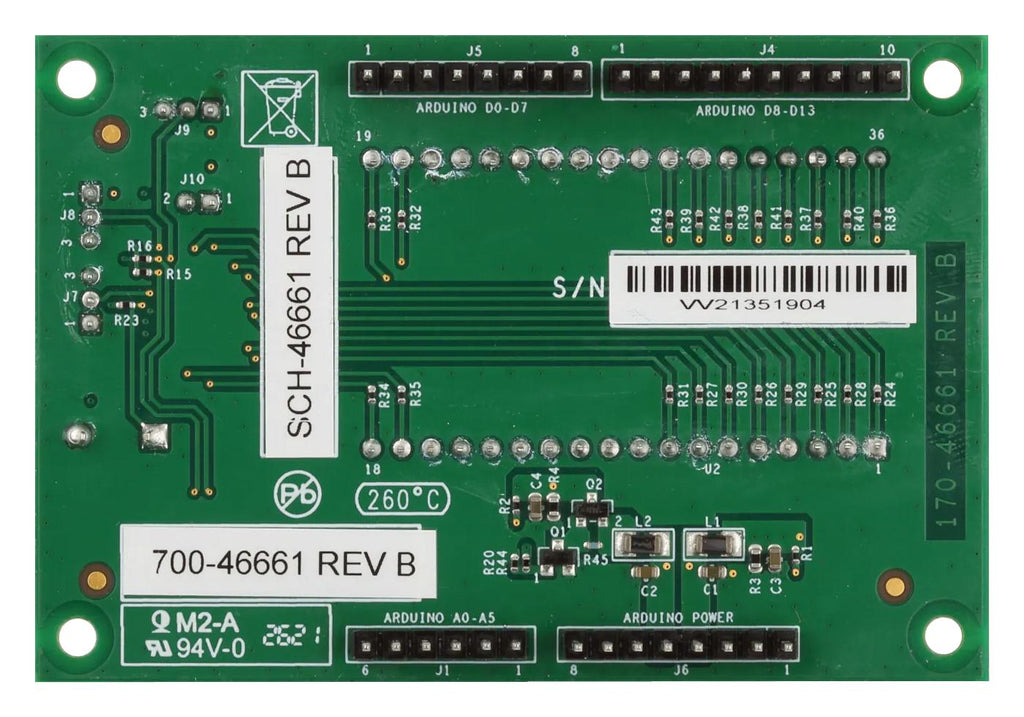

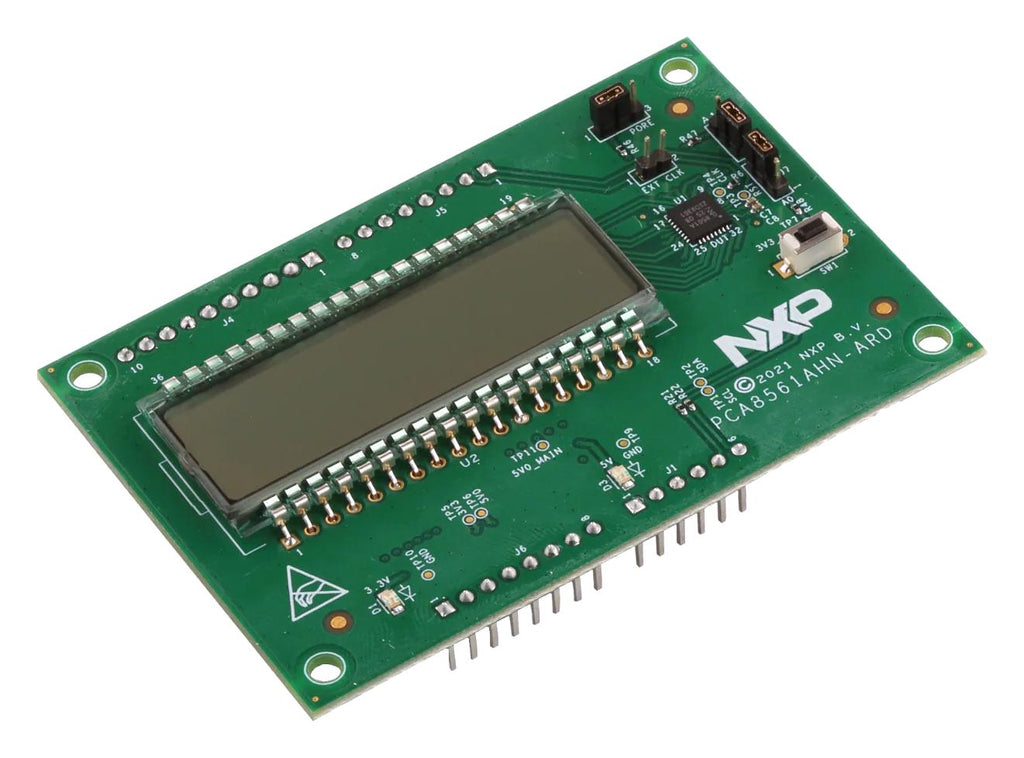

PCA8561AHN-ARD Arduino Shield board allows easy integration with Arduino EVKs to evaluate the PCA8561A Automotive 18 X 4 LCD Segment driver features. The LCD panel (DE 301-RS-20/6, Display Elektronik) on the board is used for multi-backplane and segment evaluations.
- Single chip LCD controller and driver
- Selectable backplane drive configuration: static, 2, 3 or 4 backplane multiplexing
- Selectable display bias configuration: static, 1/2, or 1/3
- 18 segment drives
- Supply voltage: 1.8V to 5.5V (VDD, VLCD)
- Low standby current (0.6µA)
- 400KHz I2C-bus, 5MHz SPI bus
- HVQFN32 plastic thermal enhanced very thin quad flat package
Contents
PCA8561AHN-ARD Arduino shield, Quick reference card, Additional hardware required: USB A-to-MicroB cable (not included).
Product details
| Silicon Manufacturer |
NXP |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
PCA8561 |
| Silicon Family Name |
- |
| For Use With |
Arduino Shield Board |
| Kit Contents |
Evaluation Board PCA8561 in an Antistatic Bag, Quick Start Guide |
| Product Range |
- |
Other details
| Brand |
NXP |
| Part Number |
PCA8561AHN-ARD |
| Quantity |
Each |
| User Manual EN |
 |
