Description

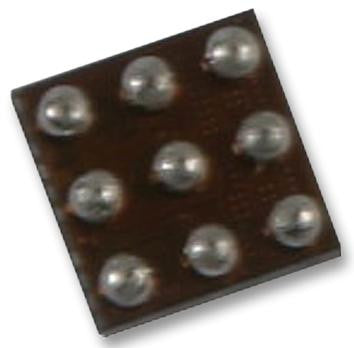

This is a Power Load Switch, High Side, 1 Output, 5.5 V, 2 A/0.06 ohm out, WLCSP-9 product from NXP with the model number NX5P2090UKZ
Product details
| Thermal Protection | Yes |
| Current Limit | 2A |
| On / Enable Input Polarity | Active High |
| Operating Temperature Min | -40�C |
| No. of Outputs | 1Outputs |
| Operating Temperature Max | 85�C |
| No. of Pins | 9Pins |
| Distribution Switch Case Style | WLCSP |
| Input Voltage | 5.5V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Power Load Switch Type | High Side |
| Packaging | Cut Tape |
| On State Resistance | 0.06ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NXP |
| Part Number | NX5P2090UKZ |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
