Description

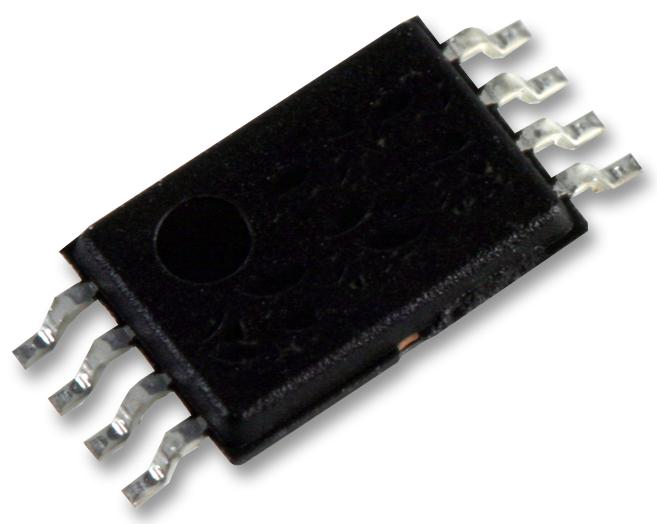

The NTS0102DP,125 is a 2-bit dual supply Translating Transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 2-bit input-output ports, one output enable input and two supply pins. VCC(A) can be supplied at any voltage between 1.65 and 3.6V and VCC(B) can be supplied at any voltage between 2.3 and 5.5V, making the device suitable for translating between any of the voltage nodes. Pins An and OE are referenced to VCC(A) and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
- IOFF circuitry provides partial power-down mode operation
- Latch-up performance exceeds 100mA per JESD 78B class II
- Inputs accept voltages up to 5.5V
- Maximum data rates - Push-pull - 50Mbps
Industrial, Automation & Process Control, Signal Processing
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | NXP |
| Part Number | NTS0102DP,125 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 126.44 |
| 3-5 | ₹ 125.15 |
| 5-10 | ₹ 122.57 |
| 10+ | ₹ 119.99 |
Bulk discount will be automatically applied during checkout based on quantity.
