Description

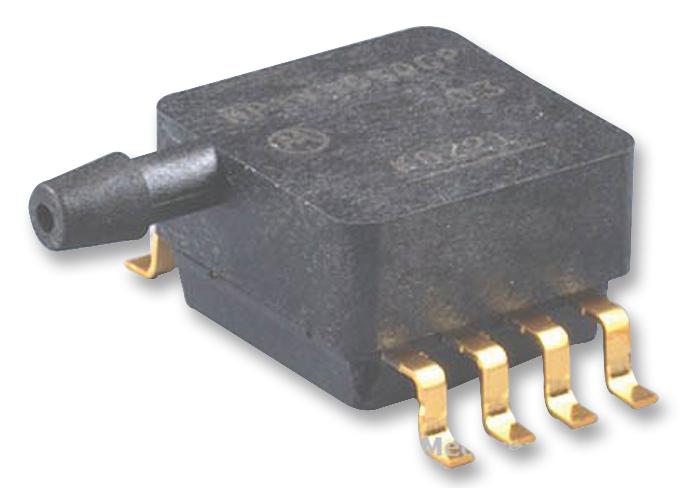

The MPXV7002GP is a monolithic silicon Piezoresistive Pressure Sensor designed for a wide range of applications. This transducer combines advanced micromachining techniques, thinfilm metallization and bipolar processing to provide an accurate, high level analogue output signal that is proportional to the applied pressure. The performance over-temperature is achieved by integrating the shear-stress strain gauge, temperature compensation, calibration and signal conditioning circuitry onto a single monolithic chip. The device operating characteristics and internal reliability and qualification tests are based on use of dry air as the pressure media. Media, other than dry air, may have adverse effects on sensor performance and long-term reliability.
- 2.5% Typical error over +10 to +60°C with auto zero
- 6.25% Maximum error over +10 to +60°C without auto zero
- Patented silicon shear stress strain gauge
- Ideally suited for microprocessor or microcontroller-based systems
Applications
Industrial, Computers & Computer Peripherals, Communications & Networking
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Pressure Type: Gauge |
| Sensitivity, V/P: 1mV/kPa |
| Operating Pressure Min: -2kPa |
| Operating Pressure Max: 2kPa |
| Supply Voltage Min: 4.75V |
| Supply Voltage Max: 5.25V |
| Sensor Case Style: SOP |
| No. of Pins: 8Pins |
| Operating Temperature Min: 10°C |
| Operating Temperature Max: 60°C |
| Product Range: - |
| Automotive Qualification Standard: - |
| MSL: - |
Other details
| Brand | NXP |
| Part Number | MPXV7002GP |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2737.68 |
| 3-5 | ₹ 2709.74 |
| 5-10 | ₹ 2653.87 |
| 10+ | ₹ 2598.0 |
Bulk discount will be automatically applied during checkout based on quantity.
