Description
Product Overview

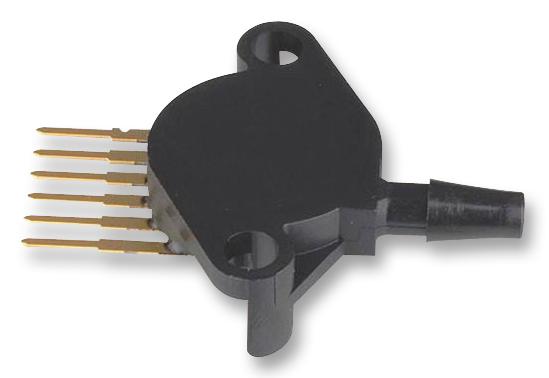

MPX5100GP is an MPX5100 series piezoresistive transducer that is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, particularly employing a microcontroller or microprocessor with A/D inputs. This patented, single-element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level, analogue output signal that is proportional to the applied pressure. Typical applications include patient monitoring, process control, pump/motor control, pressure switching, and white goods.
- 2.5% maximum error over 0 to 85°C
- Ideally suited for microprocessor or microcontroller-based systems
- Patented silicon shear stress strain gauge, durable epoxy unibody element
- Pressure range from 0 to 100kPa (VS = 5VDC, TA = 25°C)
- Supply voltage range from 4.75 to 5.25VDC (TA = 25°C)
- Supply current is 7.0mAdc typ (VS = 5VDC, TA = 25°C)
- Accuracy is ±2.5%VFSS max (VS = 5VDC, TA = 25°C), sensitivity is 45mV/kPa typ (VS = 5VDC, TA = 25°C)
- Response time is 1.0ms typ (VS = 5VDC, TA = 25°C)
- Offset stability is ±0.5%VFSS typ (VS = 5VDC, TA = 25°C)
- 98ASB42796B package, operating temperature range from -40 to +125°C
Product details
Other details
| Brand | NXP |
| Part Number | MPX5100GP |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2385.26 |
| 3-5 | ₹ 2360.92 |
| 5-10 | ₹ 2312.24 |
| 10+ | ₹ 2263.56 |
Bulk discount will be automatically applied during checkout based on quantity.
