Description

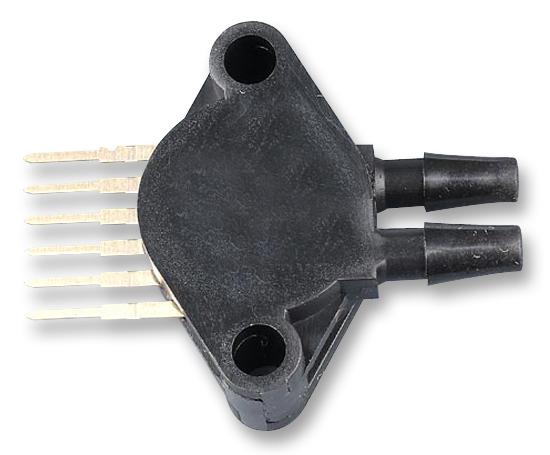

The MPX5100DP is a dual port, differential integrated silicon pressure sensor in 6 pin SIP package. This piezoresistive transducer is a state of the art monolithic silicon pressure sensor designed for wide range of applications. This patented single element transducer combines advanced micromachining techniques, thin film metallization and bipolar processing to provide an accurate and high level analogue output signal that is proportional to the applied pressure.
- On-chip signal conditioned, temperature compensated and calibrated
- 2.5% maximum error over 0°C to 85°C
- Ideally suited for microprocessor or microcontroller based systems
- Patented silicon shear stress strain gauge
- Durable epoxy unibody element
- Pressure range from 0KPa to 100KPa
- Supply voltage range from 4.75VDC to 5.25VDC
- Sensitivity of 45mV/KPa
- Response time of 1ms
- Operating temperature range from -40°C to 125°C
Sensing & Instrumentation, Medical, Motor Drive & Control, Automation & Process Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | NXP |
| Part Number | MPX5100DP |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD CadSoft_EAGLE EN | |
| Application Note EN | |
