| ₹ 3006.16 includes GST and import duties. | |
| B2B customers can avail ₹ 458.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

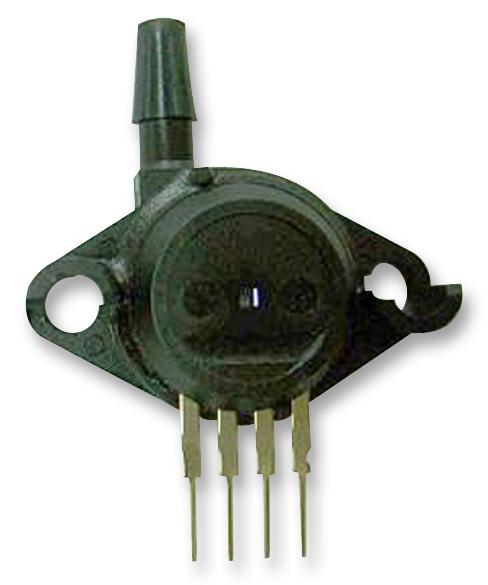

The MPX2100AP is a single-port on-chip temperature compensated and calibrated silicon Pressure Sensor. The MPX2100 series device silicon piezoresistive pressure sensor provides a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration an temperature compensation.
- Ratiometric to supply voltage
- Available in absolute configuration
Applications
Motor Drive & Control, Robotics, Medical, Power Management, Test & Measurement
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Pressure Type: Absolute |
| Sensitivity, V/P: 0.4mV/kPa |
| Operating Pressure Min: 0kPa |
| Operating Pressure Max: 100kPa |
| Supply Voltage Min: 10V |
| Supply Voltage Max: 16V |
| Sensor Case Style: SIP |
| No. of Pins: 4Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: - |
| Automotive Qualification Standard: - |
| MSL: - |
Other details
| Brand | NXP |
| Part Number | MPX2100AP |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2946.04 |
| 3-5 | ₹ 2915.98 |
| 5-10 | ₹ 2855.85 |
| 10+ | ₹ 2795.73 |
Bulk discount will be automatically applied during checkout based on quantity.
