Description

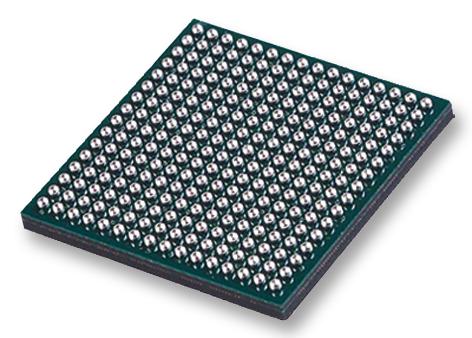

MPC5566MZP132 is a 32-bit MCU in a BGA416 package for automotive powertrain applications.
- 132MHz operating frequency, 135MHz bus frequency
- 3000KB flash, 128Kb RAM
- e200 core type
- 4 x CAN, 4 x SPI, 256 x GPIO
- Temperature range from -40°C to 125°C
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: MPC5 Family MPC55xx Series Microcontrollers |
| Device Core: Power Architecture |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 132MHz |
| Program Memory Size: 3MB |
| No. of Pins: 416Pins |
| IC Case / Package: TEPBGA |
| No. of I/O's: 256I/O's |
| Interfaces: CAN, SCI, SPI |
| RAM Memory Size: 128KB |
| ADC Channels: 40Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.35V |
| Supply Voltage Max: 1.65V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| IC Mounting: Surface Mount |
| MCU Family: MPC5 |
| MCU Series: MPC55xx |
| Qualification: AEC-Q100 |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MPC5566MZP132 |
| Quantity | Each |
| Technical Data Sheet EN |  |
