Description

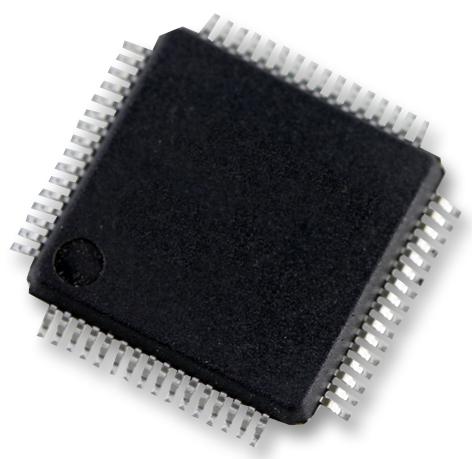

48MHz Cortex-M0+ based microcontroller designed with efficiency in mind. Compatible with all other Kinetics L families as well as Kinetics K1x family. General purpose MCU featuring market leading ultra low-power to provide developers an appropriate entry-level 32-bit solution.
- 48MHz ARM® Cortex®-M0+ core
- COP software watchdog, low-leakage wake-up unit
- 4-channel DMA controller supporting up to 63 request sources
- Low-leakage wakeup unit and SWD debug interface and Micro trace buffer
- Bit manipulation engine and multi-purpose clock source
- Low-power hardware touch sensor interface (TSI)
- Two 16bit SPI, I2S (SAI), one low power UART, two UART and two I2C modules
- 16bit SAR ADC, 12bit DAC, analogue comparator (CMP)
- Six channel timer/PWM (TPM), two 2-channel timer/PWM modules, periodic interrupt timers
- 16bit low-power timer (LPTMR), real time clock, 80bit unique identification number per chip
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: Kinetis L Family KL1x Series Microcontrollers |
| Device Core: ARM Cortex-M0+ |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 48MHz |
| Program Memory Size: 256KB |
| No. of Pins: 64Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 54I/O's |
| Interfaces: I2C, I2S, SPI, UART |
| RAM Memory Size: 32KB |
| ADC Channels: 24Channels |
| ADC Resolution: 16Bit |
| Supply Voltage Min: 1.71V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: Kinetis L |
| MCU Series: KL1x |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MKL16Z256VLH4 |
| Quantity | Each |
| Technical Data Sheet EN |  |
