Description
The Kinetis MKL02Z32VFK4, based on the ARM® Cortexâ�¢-M0+ processor, is the entry point into the Kinetis L Series. The Kinetis MKL02Z32VFM4 provides a bridge for 8-bit users migrating into the Kinetis portfolio and is software and tool compatible with all other Kinetis L families
- Ultra low power
- Up to 48 MHz ARM® Cortex-M0+ core
- Multi-purpose clock source
- Nine low-power modes to provide power
- Optimization based on application requirements
- COP Software watchdog
- SWD interface and Micro Trace buffer
- Bit Manipulation Engine
- One 8-bit SPI module
- Two I²C modules
- One low power UART module
- Two 2-channel Timer/PWM
- 16-bit low-power timer
Applications
Embedded Design & Development
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: Kinetis L Family KL0x Series Microcontrollers |
| Device Core: ARM Cortex-M0+ |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 48MHz |
| Program Memory Size: 32KB |
| No. of Pins: 24Pins |

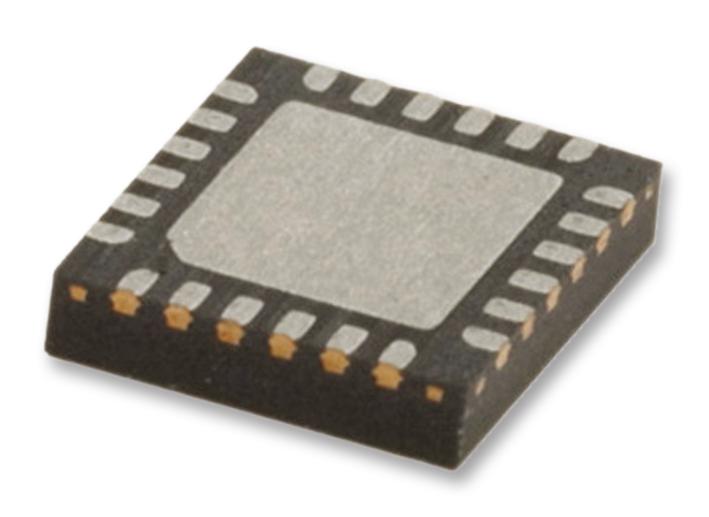

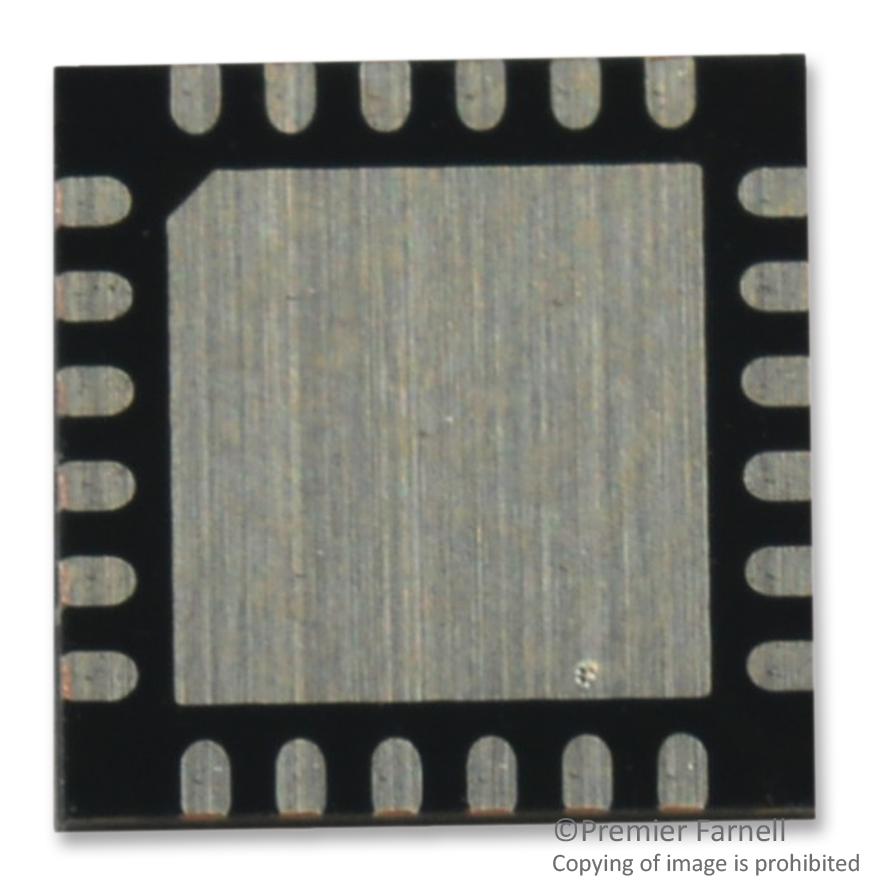

| IC Case / Package: QFN |
| No. of I/O's: 22I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 4KB |
| ADC Channels: 12Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.71V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: Kinetis L |
| MCU Series: KL0x |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MKL02Z32VFK4 |
| Quantity | Each |
| Technical Data Sheet EN |  |
