Description

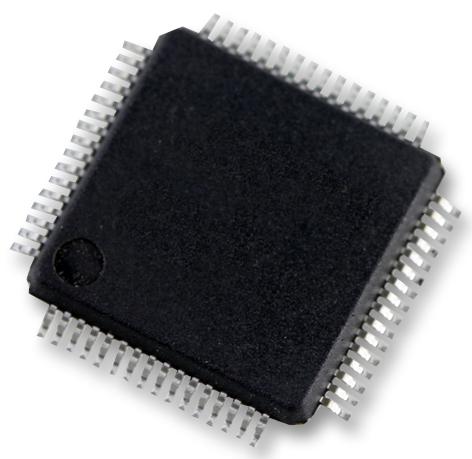

The MKE06Z128VLH4 is a 32-bit Kinetis KE02 Robust Microcontroller based on ARM Cortex-M0+ RISC architecture core operates at a maximum frequency of 48MHz. The device incorporates 128kB internal flash, 16kB internal RAM, one 12-bit SAR A/D converter, two 6-bit D/A converter and 58 general-purpose I/O pins. This device also features communication interfaces like three UART modules, two SPI modules and two I2C module.
- Single cycle 32 x 32-bit Multiplier
- Single cycle I/O access port
- Oscillator (OSC) - Supports 32.768kHz crystal or 4MHz to 24MHz crystal or ceramic resonator
- Internal clock source (ICS)
- Internal 1kHz Low-power oscillator (LPO)
- Power management module (PMC) with three power modes - run, wait, stop
- Low-voltage detection (LVD) with reset or interrupt, selectable trip points
- Watchdog with independent clock source (WDOG)
- Programmable cyclic redundancy check module (CRC)
- Serial wire debug interface (SWD)
- Aliased SRAM bit band region (BIT-BAND)
- Bit manipulation engine (BME)
- 80-bit Unique identification (ID) number per chip
- Two 32-bit Keyboard interrupt modules (KBI)
- External interrupt (IRQ)
- Two analog comparators containing a 6-bit DAC and programmable reference input (ACMP)
- One 6-channel Flex timer/PWM (FTM)
- Two 2-channel Flex timer/PWM (FTM)
- 2-channel Periodic interrupt timer (PIT)
- Pulse width timer (PWT)
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Product Range: Kinetis E Family KE0x Series Microcontrollers |
Device Core: ARM Cortex-M0+ |
Data Bus Width: 32 bit |
Operating Frequency Max: 48MHz |
Program Memory Size: 128KB |
No. of Pins: 64Pins |
IC Case / Package: LQFP |
No. of I/O's: 58I/O's |
Interfaces: I2C, SPI, UART |
RAM Memory Size: 16KB |
ADC Channels: 16Channels |
ADC Resolution: 12Bit |
Supply Voltage Min: 2.7V |
Supply Voltage Max: 5.5V |
Operating Temperature Min: -40°C |
Operating Temperature Max: 105°C |
IC Mounting: Surface Mount |
MCU Family: Kinetis E |
MCU Series: KE0x |
Qualification: - |
MSL: MSL 3 - 168 hours |
Other details
Brand | NXP |
Part Number | MKE06Z128VLH4 |
Quantity | Each |
Technical Data Sheet EN |
