Description
The MK66FN2M0VMD18 is a 32-bit Kinetis K6x Microcontroller with Ethernet crypto, based on ARM Cortex-M4 RISC architecture core operates at a maximum frequency of 180MHz. The device incorporates 2048kB internal flash, 256kB internal RAM, two 16-bit SAR A/D converter, two 12-bit D/A converter and 100 general-purpose I/O pins. This device also features communication interfaces like six UART modules, three SPI modules, four I2C modules and one I2S module.
- ARM Cortex-M4 core with DSP instructions and single precision floating point unit
- Multiple low-power modes to provide power optimization based on application requirements
- Memory protection unit with multi-master protection
- 3 to 32MHz Main crystal oscillator
- 32kHz Low power crystal oscillator
- 48MHz Internal reference
- Hardware random-number generator
- Supports DES, AES, SHA accelerator (CAU)
- Multiple levels of embedded flash security
- 4 Periodic interrupt timers
- 16-bit Low-power timer
- Two 16-bit Low-power timer PWM modules
- Two 8-channel Motor control/general purpose/PWM timers
- Two 2-channel Quad decoder/general purpose timers
- Real-time clock
- Low-power hardware touch sensor interface (TSI)
- General-purpose input/output
- FlexBus external bus interface and SDRAM controller
- 4 Analog comparators (CMP) containing a 6-bit DAC and programmable reference input
- 1.2V Voltage reference
Applications
Industrial, Communications & Networking
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: Kinetis K Family K6x Series Microcontrollers |
| Device Core: ARM Cortex-M4F |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 180MHz |
| Program Memory Size: 2MB |
| No. of Pins: 144Pins |

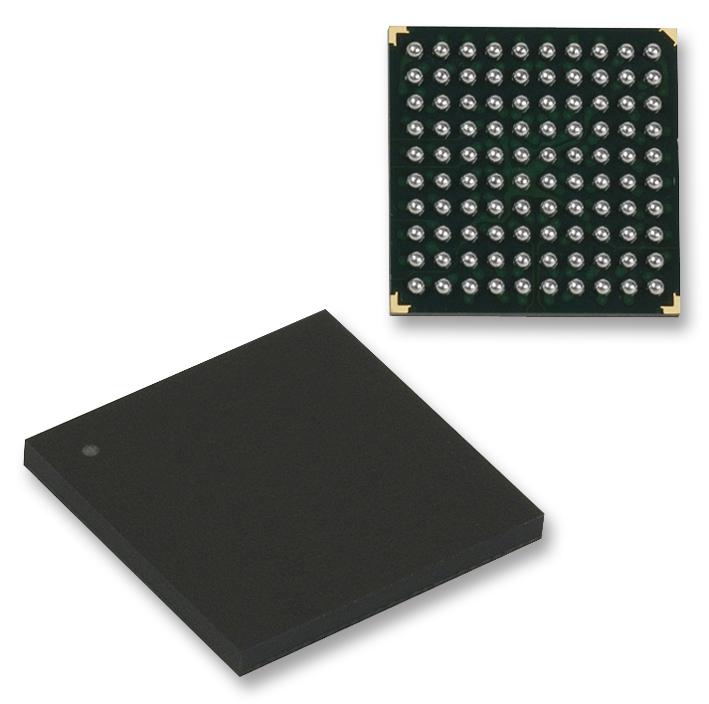

| IC Case / Package: MAPBGA |
| No. of I/O's: 100I/O's |
| Interfaces: CAN, Ethernet, I2C, I2S, SPI, UART, USB |
| RAM Memory Size: 256KB |
| ADC Channels: 40Channels |
| ADC Resolution: 16Bit |
| Supply Voltage Min: 1.71V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: Kinetis K |
| MCU Series: K6x |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MK66FN2M0VMD18 |
| Quantity | Each |
| Technical Data Sheet EN |  |
