NXP MK27FN2M0AVMI15 ARM MCU, Kinetis K Family K2x Series Microcontrollers, ARM Cortex-M4, 32 bit, 150 MHz, 2 MB

MK27FN2M0AVMI15 is a high-performance ARM® Cortex®-M4 MCU. This device extends the Kinetis microcontroller portfolio with large embedded memory, advanced external memory interfaces, performance, and peripheral integration while maintaining a high level of software compatibility with previous Kinetis devices. The extended memory resources include a total of 2Mb of programmable flash and 1Mb of embedded SRAM which can be used to support application needs for data logging and rich human-to-machine interfaces with displays. It enables memory expansion by leveraging the SDRAM controller and QuadSPI interface for execution-in-place (XIP) from an external serial NOR flash. Both the USB high-speed and crystal-less full-speed controllers integrate a PHY to reduce BOM cost. The integrated smart peripherals such as low-power UARTs and timers operate in very low-power modes to optimize the battery life of the system.

• Upto 150MHz ARM Cortex-M4 based core with DSP instructions and single precision floating point unit
• 2Mb flash, 1Mb SRAM, 120 maximum number of I\O's
• 32-bit external bus interface (FlexBus), 32-bit SDRAM controller
• Multiple low-power modes
• 48MHz internal reference, hardware and software watchdogs
• Integrated power management control (PMC), 1.2V voltage reference
• Real-time clock with independent 3.6V power domain, programmable delay block
• Cost-optimized multi-standard wireless smart home hubs, home automation devices
• Secure digital host controller (SDHC), four SPI modules (SPI3 supports more than 40Mbps)

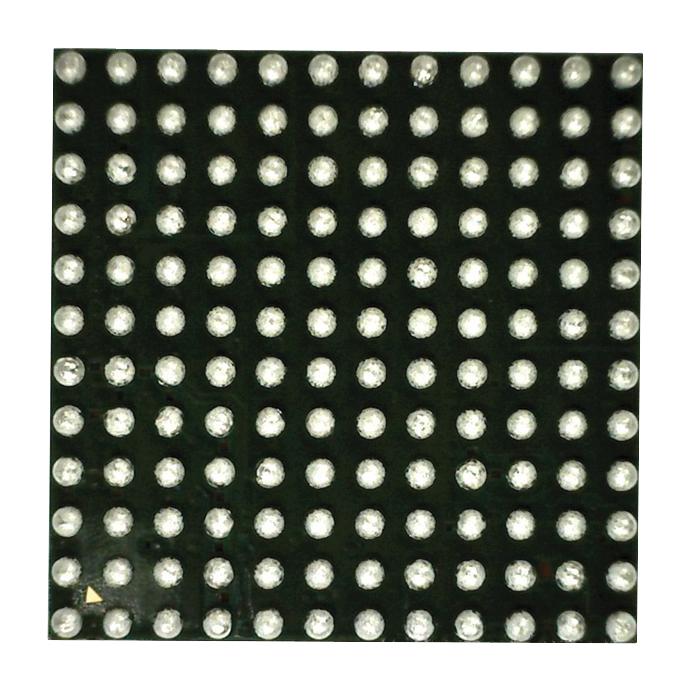

• Operating temperature range from -40°C to 105°C, 169-MAPBGA package
