| ₹ 1098.32 includes GST and import duties. | |
| B2B customers can avail ₹ 167.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

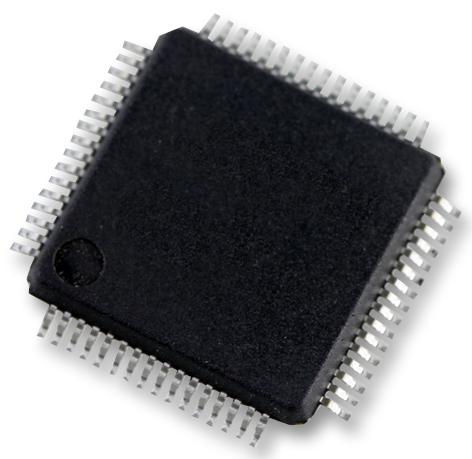

The MK22FN512VLH12 is a 32-bit 120MHz low-power Cortex-M4 based Microcontroller Unit with FPU. The K22 product family members are optimized for cost-sensitive applications requiring low-power, USB connectivity and processing efficiency with a floating point unit. This device share the comprehensive enablement and scalability of the Kinetis family. The microcontroller unit features delivers industry-leading low power while providing significant bill-of-materials savings through smart on-chip integration, provides scalability with various levels of integration, offering a rich suite of analogue, communication, timing and control peripherals to accommodate a wide range of requirements.
- Shares the comprehensive enablement and scalability of the Kinetis portfolio
- Memories and memory interfaces - FlexBus external bus interface and serial programming interface
- System peripherals - Flexible low-power modes, multiple wake-up sources, 16-channel DMA controller
- Security and integrity modules - Hardware CRC module and hardware random-number generator
- Analogue modules - Two 16-bit SAR ADCs (1.2 MS/s in 12-bit mode) and Two 12-bit DACs
- Communication interfaces - USB full-speed device crystal-less operation
- Timers - Real-time clock with independent power domain
Applications
Consumer Electronics, Industrial, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: Kinetis K Family K2x Series Microcontrollers |
| Device Core: ARM Cortex-M4 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 120MHz |
| Program Memory Size: 512KB |
| No. of Pins: 64Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 40I/O's |
| Interfaces: I2C, I2S, SPI, UART, USB |
| RAM Memory Size: 128KB |
| ADC Channels: 27Channels |
| ADC Resolution: 16Bit |
| Supply Voltage Min: 1.71V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: Kinetis K |
| MCU Series: K2x |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MK22FN512VLH12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1076.35 |
| 3-5 | ₹ 1065.37 |
| 5-10 | ₹ 1043.4 |
| 10+ | ₹ 1021.44 |
Bulk discount will be automatically applied during checkout based on quantity.
