Description
Product Overview

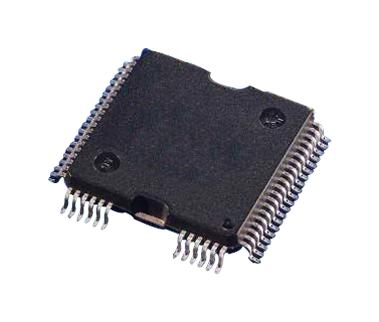

MK22FN1M0AVLH12 is a Kinetis® K22F sub-family cost-effective, full-speed USB, 120MHz ARM® Cortex®-M4-based microcontroller with FPU. It is optimized for cost-sensitive applications requiring low-power, USB connectivity, and processing efficiency with floating point unit. It shares the comprehensive enablement and scalability of the Kinetis family.
- Small package with high memory density
- USB LS/FS OTG 2.0 with embedded 3.3V, 120mA LDO voltage regulator
- Up to 16 controllable GPIO with pin interrupt support
- Shares the comprehensive enablement and scalability of the Kinetis portfolio
- Includes options that support crystal-less USB design for reduced system cost and board space
- 1MB flash, 128KB SRAM, 40 maximum number of I\O's
- Operating voltage range from 1.71 to 3.6V
- Temperature range from -40 to 105°C
- 64 LQFP package
- Maximum CPU frequency is 120MHz
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | NXP |
| Part Number | MK22FN1M0AVLH12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1513.44 |
| 3-5 | ₹ 1498.0 |
| 5-10 | ₹ 1467.11 |
| 10+ | ₹ 1436.23 |
Bulk discount will be automatically applied during checkout based on quantity.
