Description

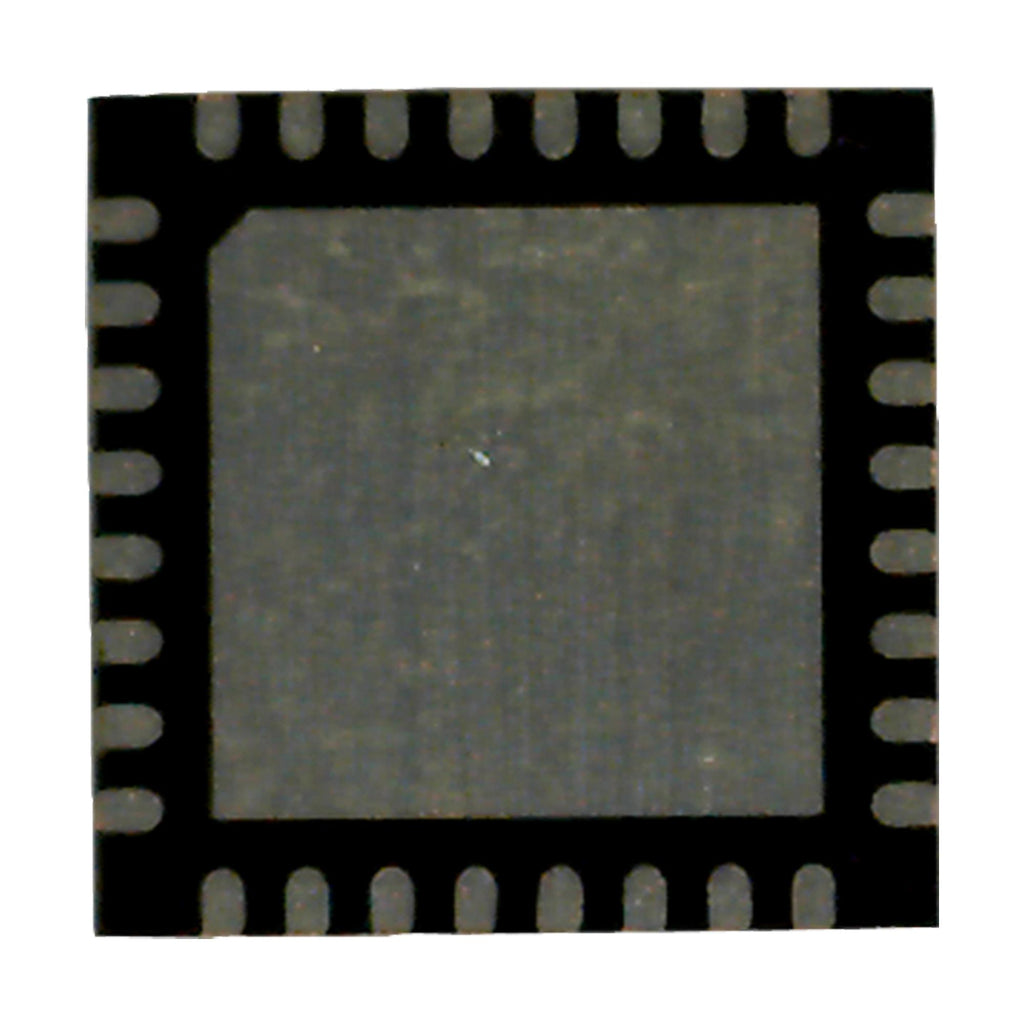

The MK02FN128VFM10 is a 32-bit Kinetis K0x Entry-level Microcontroller based on ARM Cortex-M4 RISC architecture core operates at a maximum frequency of 100MHz. The device incorporates 128kB internal flash, 16kB internal RAM, one 16-bit SAR A/D converter, one 12-bit D/A converter and 26 general-purpose I/O pins. This device also features communication interfaces like two UART modules, one SPI module and one I2C module.
- 100MHz ARM Cortex-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz
- Flexible low-power modes, multiple wake up sources
- 4-channel DMA Controller
- Independent external and software watchdog monitor
- Three internal oscillators - 32kHz, 4MHz and 48MHz
- Hardware CRC module
- 128-bit Unique identification (ID) number per chip
- Flash access control to protect proprietary software
- Two analog comparators (CMP) with 6- bit DAC
- One 6-channel General-purpose/PWM timer
- Two 2-channel General-purpose timers
- Periodic interrupt timers
- 16-bit Low-power timer
- Programmable delay block
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: Kinetis K Family K0x Series Microcontrollers |
| Device Core: ARM Cortex-M4 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 100MHz |
| Program Memory Size: 128KB |
| No. of Pins: 32Pins |
| IC Case / Package: QFN |
| No. of I/O's: 26I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 16KB |
| ADC Channels: 13Channels |
| ADC Resolution: 16Bit |
| Supply Voltage Min: 1.71V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: Kinetis K |
| MCU Series: K0x |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MK02FN128VFM10 |
| Quantity | Each |
| Technical Data Sheet EN |  |
