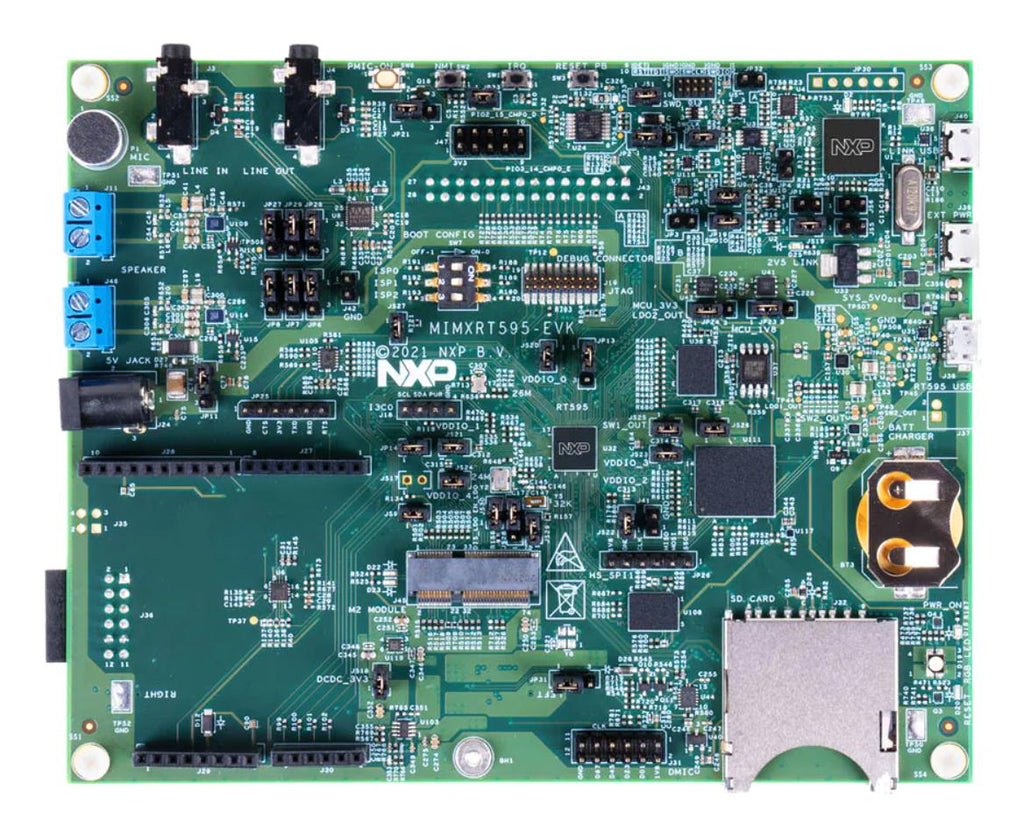

MIMXRT595-EVK features NXP's advanced implementation of the Arm® Cortex®-M33 core, combined with the highly optimized Cadence® Tensilica® Fusion F1 DSP processor core along with a 2D Vector GPU with LCD Interface and MIPI DSI PHY. MIMXRT595-EVK supports development for the MIMXRT595, MIMXRT555 and MIMXRT533 products, and its features make it ideal for portable HMI applications.
- Macronix octal SPI flash, AP memory PSRAM, SanDisk eMMC
- 10-pin and 20-pin SWD connectors supporting external debug/trace probes
- On-board debug probe, with VCOM and CMSIS-DAP or J-link firmware options
- Arduino expansion, PMOD expansion, Expansion connector for 8-channel microphone board
- I3C header, Flexcomm header, FlexIO display header, MIPI display connector
- Reset and user buttons for easy testing of software functionality
- High/full-speed USB port with micro-A/B connector for the host or device functionality
- SD Card slot (Optional)
- NXP FXOS8700CQ accelerometer
- Audio codec with stereo line in and line out/headphone jack, dual knowles DMICs, DMIC connector
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
NXP |
| Silicon Family Name |
i.MX RT |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M33 |
| Silicon Core Number |
MIMXRT595 |
| Kit Contents |
Evaluation Kit MIMXRT595 |
| Product Range |
- |
Other details
| Brand |
NXP |
| Part Number |
MIMXRT595-EVK |
| Quantity |
Each |
| User Manual EN |
 |
