Description
Product Overview

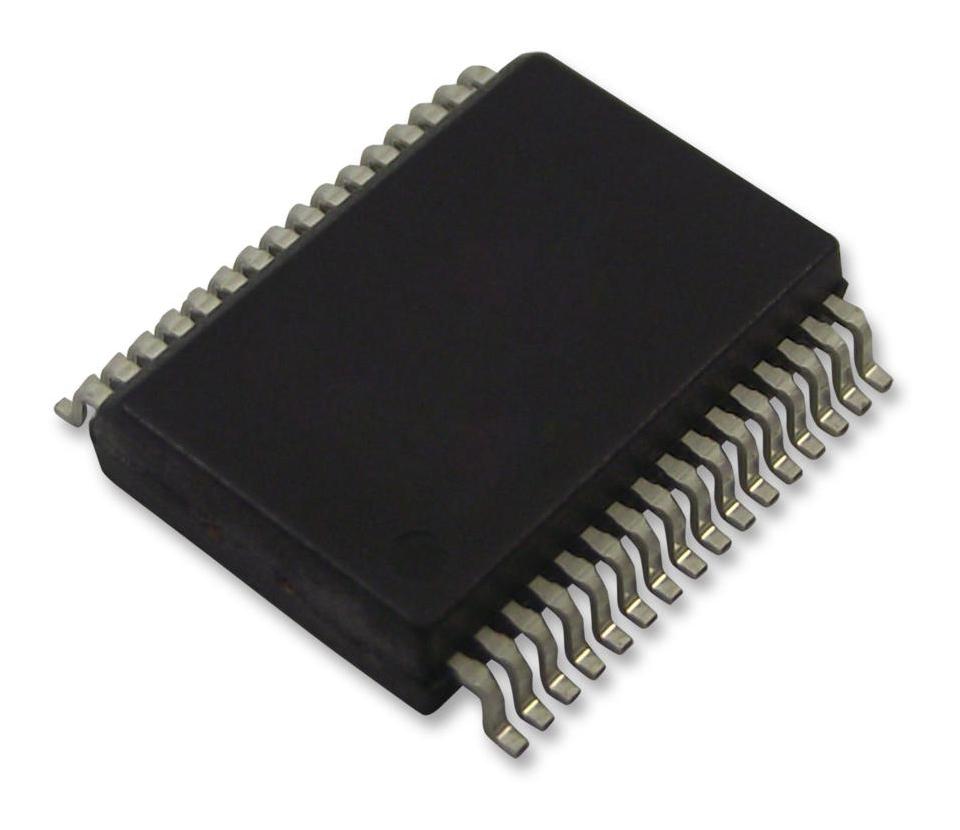

The MCZ33996EK is a 16-output low-side Switch with a 24-bit serial input control, designed for a variety of applications including inductive, incandescent and LED loads. The SPI provides both input control and diagnostic readout. A Pulse-Width Modulation (PWM) control input may be used to pulse width modulate multiple outputs at the same duty cycle. A dedicated reset input provides the ability to clear all internal registers to the Power-ON Reset state. Directly interfaces with MCUs and is compatible with both 3.3 and 5.0V CMOS logic levels.
- Output independent overtemperature shutdown
- PWM-programmable outputs
- OFF open load detect current can be disabled for sensitive LED applications
- Output ON short-to-VBAT and OFF short-to-ground/open detection
- SPI diagnostic reporting
Applications
Signal Processing
Product details
Other details
| Brand | NXP |
| Part Number | MCZ33996EK |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1158.38 |
| 3-5 | ₹ 1146.56 |
| 5-10 | ₹ 1122.92 |
| 10+ | ₹ 1099.28 |
Bulk discount will be automatically applied during checkout based on quantity.
