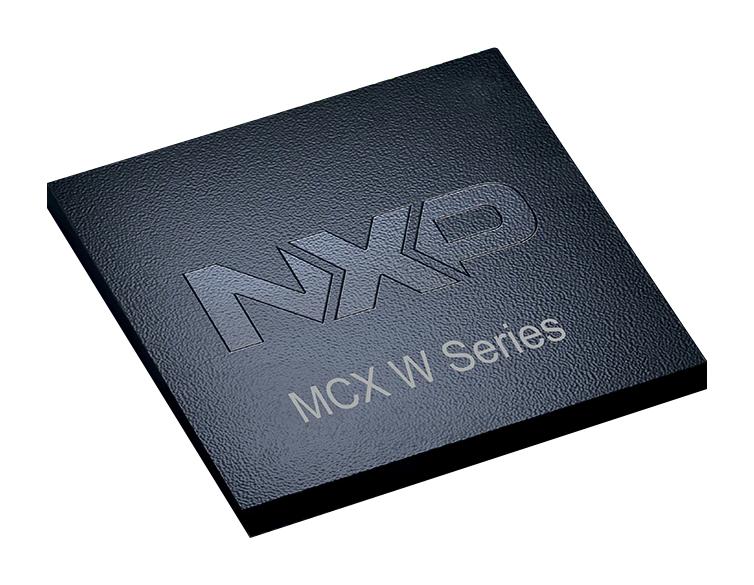

NXP MCXW716AMFTAT ARM MCU, MCX W Series, ARM Cortex-M33, 96 MHz, 1 MB, 48 Pins

MCXW716AMFTAT is a secure and ultra-low-power MCX W71 family MCU for Zigbee, Thread and Bluetooth LE. The MCX W71 implements a tri-core architecture to isolate the connectivity, computing and security capabilities. An integrated FlexCAN supporting CAN and CAN FD compliant with the ISO 11898-1 standard. The multiprotocol radio is energy efficient, supports full simultaneous dual-PAN to enable Thread and Zigbee, and designed for Wi-Fi coexistence. The radio is supported with tested software stacks for Matter, Thread, Zigbee and Bluetooth Low Energy for standalone and hosted applications to enable a range of IoT and industrial applications. The MCX W71 integrates a state-of-the-art, scalable security architecture including Arm® TrustZone®-M, a resource domain controller and an isolated EdgeLock� Secure Enclave supporting hardware cryptographic accelerators, random number generators, key generation, storage and management, and secure debug.

• Up to 96MHz Arm Cortex®-M33 core
• 1024KB flash, 128KB SRAM, 29 GPIOs
• 1 x I3C, 2 x I²C, 2 x SPI, 2 x UART interfaces
• Typical active core current: < 5.3 mA at 96 MHz (< 55 ?A/MHz)
• 16-bit single ended SAR Analog-to-digital converter (ADC) up to 2Msps
• Two 6-bit high-speed analogue comparators (CMP) with 8-bit digital-to-analogue converter (DAC)
• 1.0V to 2.1V voltage reference (Vref)
• Supply voltage range from 1.8V to 3.6V
• Temperature range from -40°C to 125°C
• Available in a 48 pin HVQFN package
