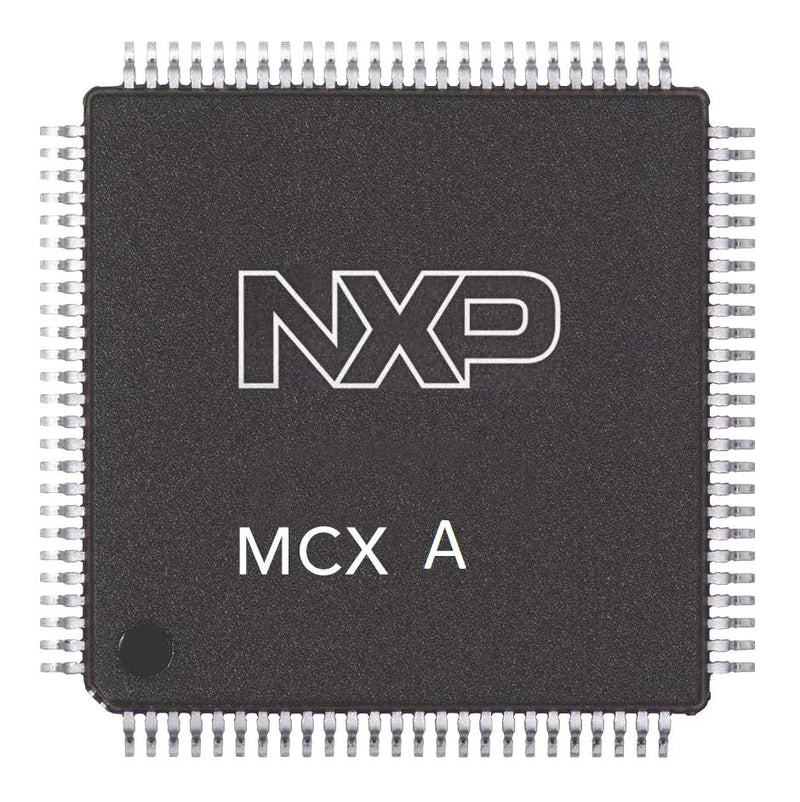

NXP MCXA145VPJ ARM MCU, MCX A Series, ARM Cortex-M33F, 32 bit, 48 MHz, 512 KB, 112 Pins

MCXA145VPJ is a MCX A1 series microcontroller. MCX A1 series all-purpose microcontrollers (MCUs) address a wide range of applications with scalable device options, low power and intelligent peripherals. The MCX A1 series Arm® Cortex®-M33 general purpose MCUs with high levels of integration and analogue. The low power cache enhances the system performance with built-in RAM self-test hardware and supporting safety applications. The innovative power architecture is designed to support high utilization of I/Os and power efficiency with a simple supply circuit in a smaller footprint. Designed to support more GPIO pins for additional external connections, the MCX A1 allows designers to utilize a smaller package, simpler board design and lower system BOM costs. Target applications include sensing & metering, building control & automation, smart circuit breaker, home appliances, USB accessories, compressor drive, smart lighting, hand-held devices, power tools and IoT nodes.

• Scalability and balanced performance
• Autonomous and low-power peripherals
• MCUXpresso developer experience
• All RAM can be retained down to deep power down mode
• 48MHz frequency, 512KB flash memory, 96KB SRAM
• 4 LPI2C, 5 LPUART, 2 LPSPI, 1 I3C, 1 USB FS, 1 FlexIO1, 1 x FlexCAN interfaces
• 2 16b SE ADC, 1 FlexPWM, 2 comparator
• 82 GPIOs
• VFBGA112 package
• Operating temperature range from -40°C to 125°C
