Description
Product Overview

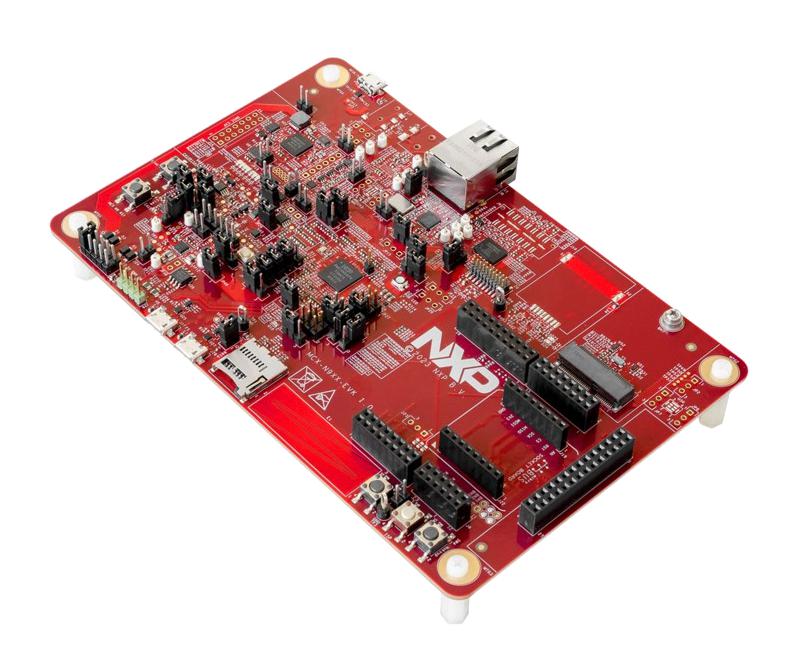

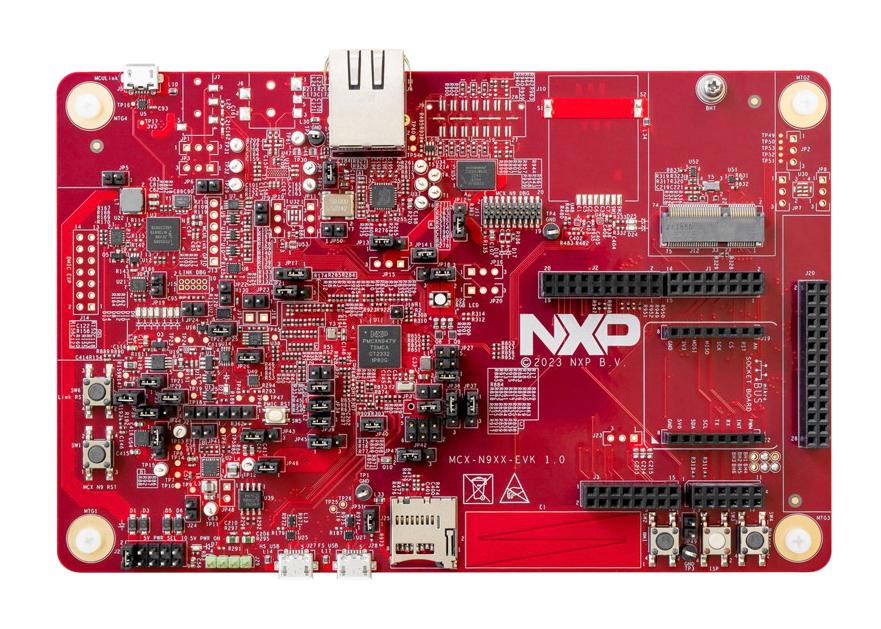

MCX-N9XX-EVK is a full featured evaluation kit for prototyping of MCX N94 MCUs. They offer industry standard headers for access to the MCU�s I/Os, integrated open-standard serial interfaces and an on-board MCU-Link debugger with power measurement capability. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.
- MCX-N947 Dual Arm® Cortex®-M33 cores at 150MHz each with optimized performance efficiency
- Up to 2MB dual-bank flash with optional full ECC RAM, external flash
- Micro SD card socket, QSPI flash W25Q64 (64 Mbit), support pSRAM, OctalFlash, HyperRAM
- Ethernet Phy, HS USB Micro B, SPI/I2C/UART, WIFI, FS USB Micro B, M.2, CAN connector
- On-board MCU-Link debugger with Energy Monitor circuit, JTAG/SWD connector
- PCA9420-PCA9421 PMIC for low power applications
- P3T1755 I3C/I2C Temp Sensor, FXLS8964 3-axis accelerometer, visible light sensor
- Arduino® header, FlexIO/LCD header, tamper pin header, mikroBUS� expansion header
- RGB user LED, plus reset, ISP, wakeup buttons, touch slider user interface
Product details
Other details
| Brand | NXP |
| Part Number | MCX-N9XX-EVK |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 20726.71 |
| 3-5 | ₹ 20515.21 |
| 5-10 | ₹ 20092.22 |
| 10+ | ₹ 19669.22 |
Bulk discount will be automatically applied during checkout based on quantity.
