| ₹ 3602.68 includes GST and import duties. | |
| B2B customers can avail ₹ 549.41 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

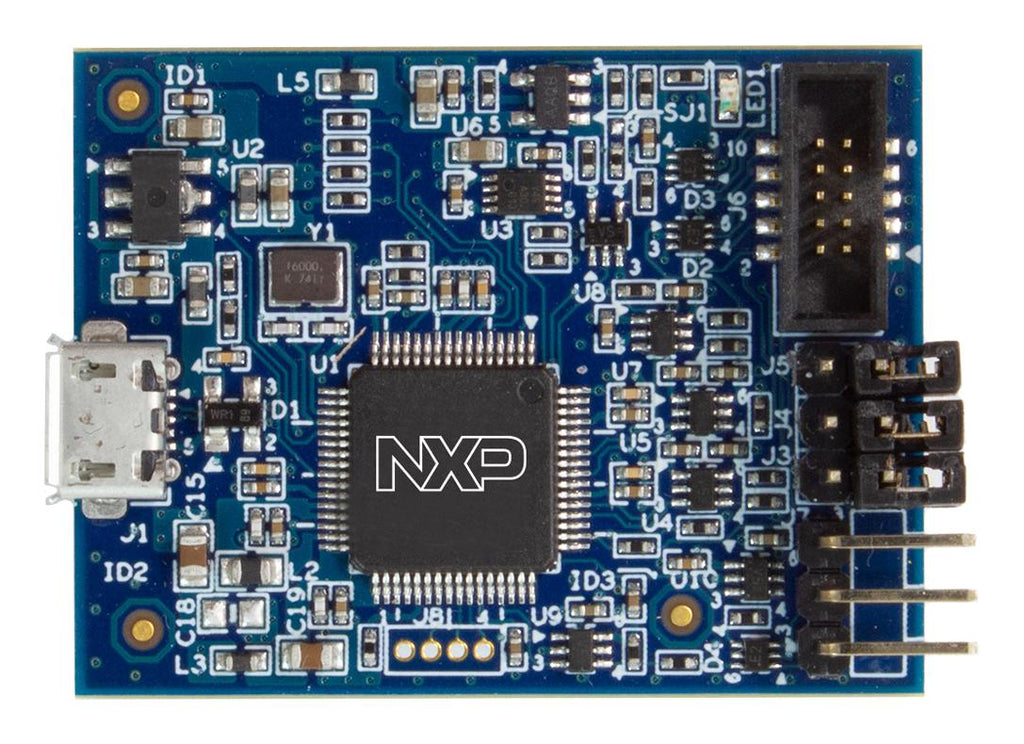

MCU-Link is a powerful and cost effective debug probe that can be used seamlessly with MCUXpresso IDE, and is also compatible with 3rd party IDEs that support CMSIS-DAP protocol. MCU-Link also includes a USB to UART bridge feature (VCOM) that can be used to provide a serial connection between the target MCU and a host computer. MCU-Link is based on the LPC55S69 microcontroller, and features a high-speed USB interface for high performance debug. MCU-Link is compatible with Windows 10, MacOS and Linux. A free utility from NXP provides an easy way to install firmware updates.
- LPC55S69 dual Arm Cortex-M33 microcontroller running at up to 150 MHz
- Target UART to USB bridge feature
- SWD/JTAG debug interface to target via 10-pin Coresight connector
- SWO support for profiling, interrupt tracing and low overhead data access
- Simple firmware update via USB
MCU-Link debug probe, Target debug connector, VCOM connector cable, Spare jumpers.
Other details
| Brand | NXP |
| Part Number | MCU-LINK |
| Quantity | Each |
| Manufacturer Product Page EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3530.63 |
| 3-5 | ₹ 3494.6 |
| 5-10 | ₹ 3422.55 |
| 10+ | ₹ 3350.49 |
Bulk discount will be automatically applied during checkout based on quantity.
